PZ 7234 FX (966061401) - Husqvarna 72" Zero-Turn Mower (2009-09) Seat Parts Diagram

72" Zero-Turn Mower

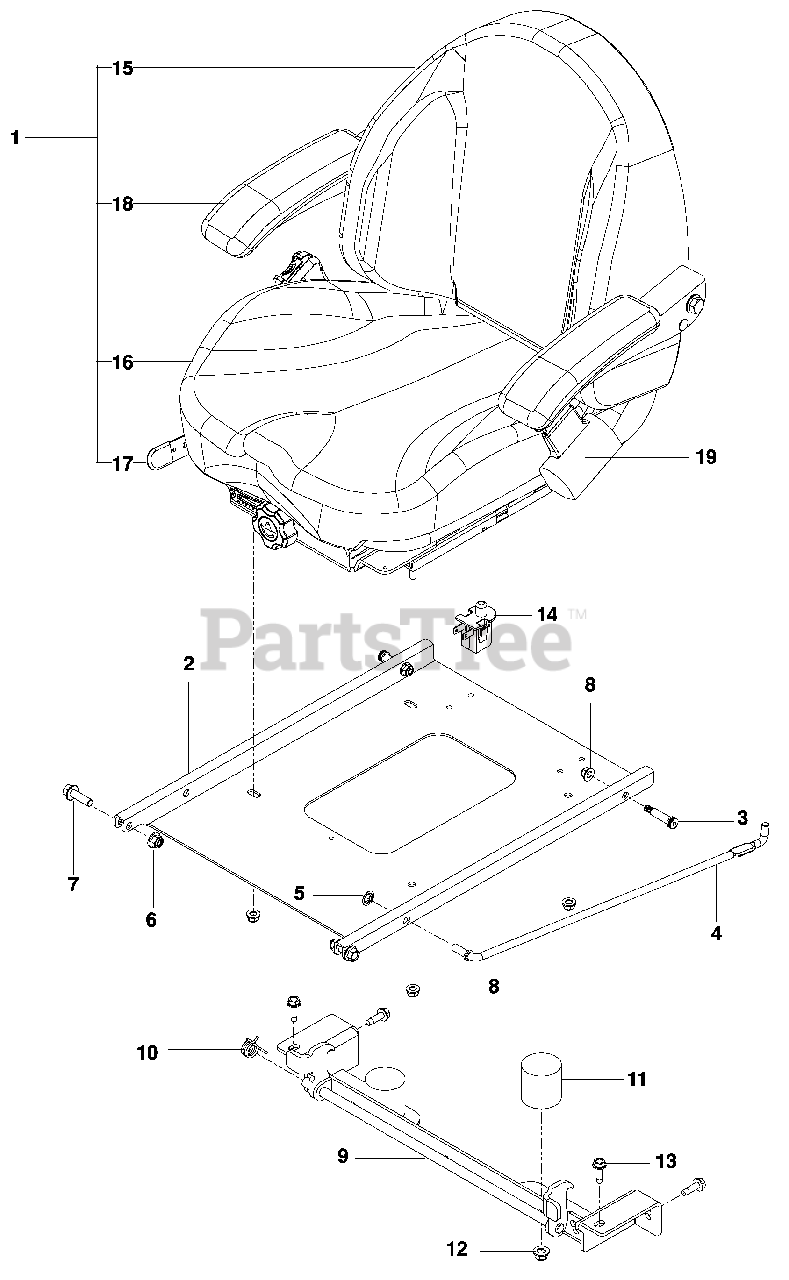

Seat Parts Diagram

  • Title

1

Husqvarna 574284601

SEAT ASSY

$1040.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510039302

PAN, SEAT

$145.99

$

In Stock, only 1 left!

0

3

Husqvarna 515990601

BOLT 3/8 x 1¼ 5/16-18 SHLDR

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539913847

RETAINER NUT 3/8

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

7

Husqvarna 525834201

SCREW 3/8-16 x 1¼ HEX FLG

$

$

Not available

8

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

9

Husqvarna 574182202

LATCH, SEAT

$267.99

$

Usually ships in 3-10 days

0

10

Husqvarna 520283101

SPRING, TORSION

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510283801

BUMPER, RUBBER

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

13

Husqvarna 539113226

BOLT 5/16-18 x 1 THD FRM
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539119741

SWITCH, SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

15

Husqvarna 574284602

COVER, BACK

$182.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574284603

COVER KIT, CUSHION

$226.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574284604

TRACK KIT

$159.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574284605

ARMREST, LT

$133.99

$

Usually ships in 3-10 days

0

Husqvarna 574284606

ARMREST, RT

$133.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539130359

SEAT BELT
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0
