PZT 26 CE (966791901) - Husqvarna Zero-Turn Mower (2012-03) HYDRAULIC PUMP MOTOR Parts Diagram

Zero-Turn Mower

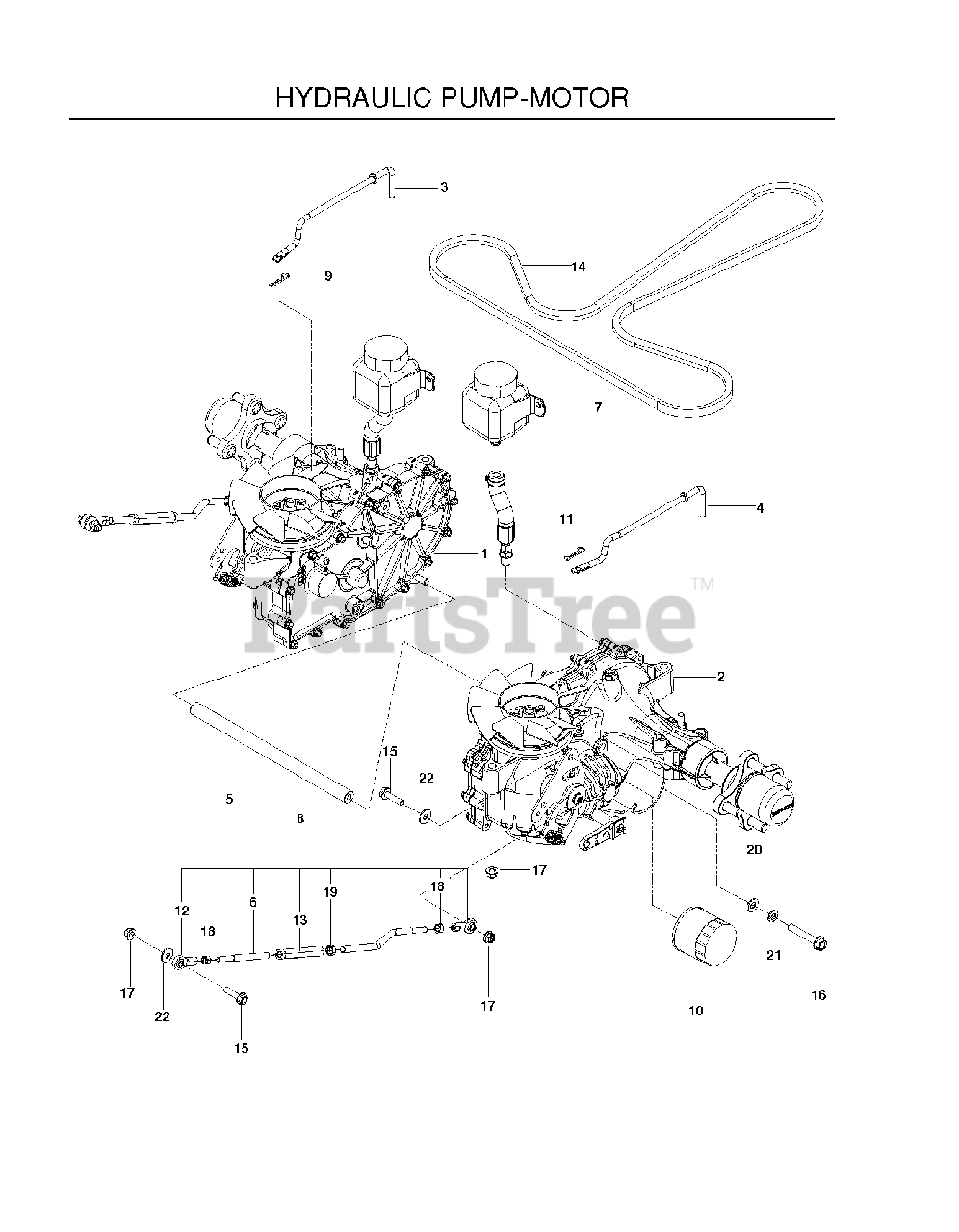

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Husqvarna 574569102

HG_TRANS, ZT-3400, RT

Note: RT

$1152.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574569101

HG_TRANS, ZT-3400, LT

Note: LT

$1152.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131618

LINKAGE, RIGHT BYPASS

Note: RT

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131616

LINKAGE, LEFT BYPASS

Note: LT

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576415701

ASSEMBLY, CONTROL LINKAGE

$78.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522559201

LINKAGE, CONTROL, FT

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 574811301

TANK.EXPANSION.350ML 71328

$66.99

$

In Stock, only 4 left!

0

8

Husqvarna 576422701

SHAFT, TIE ROD

$24.99

$

In Stock, Qty 5

0

9

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113466

HG_FILTER, ZT4800 52114

$60.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576943701

ASSEMBLY, HOSE, EXPANSION

$34.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 2 left!

0

13

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576667201

BELT, "AX", 86.7"

$54.99

$

In Stock, Qty 6

0

15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577098301

HHFS 3/8-16 X 2.25 GD 8

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0
