PZT 60 (966613502) - Husqvarna Zero-Turn Mower (2012-08) ENGINE PLATE Parts Diagram

Zero-Turn Mower

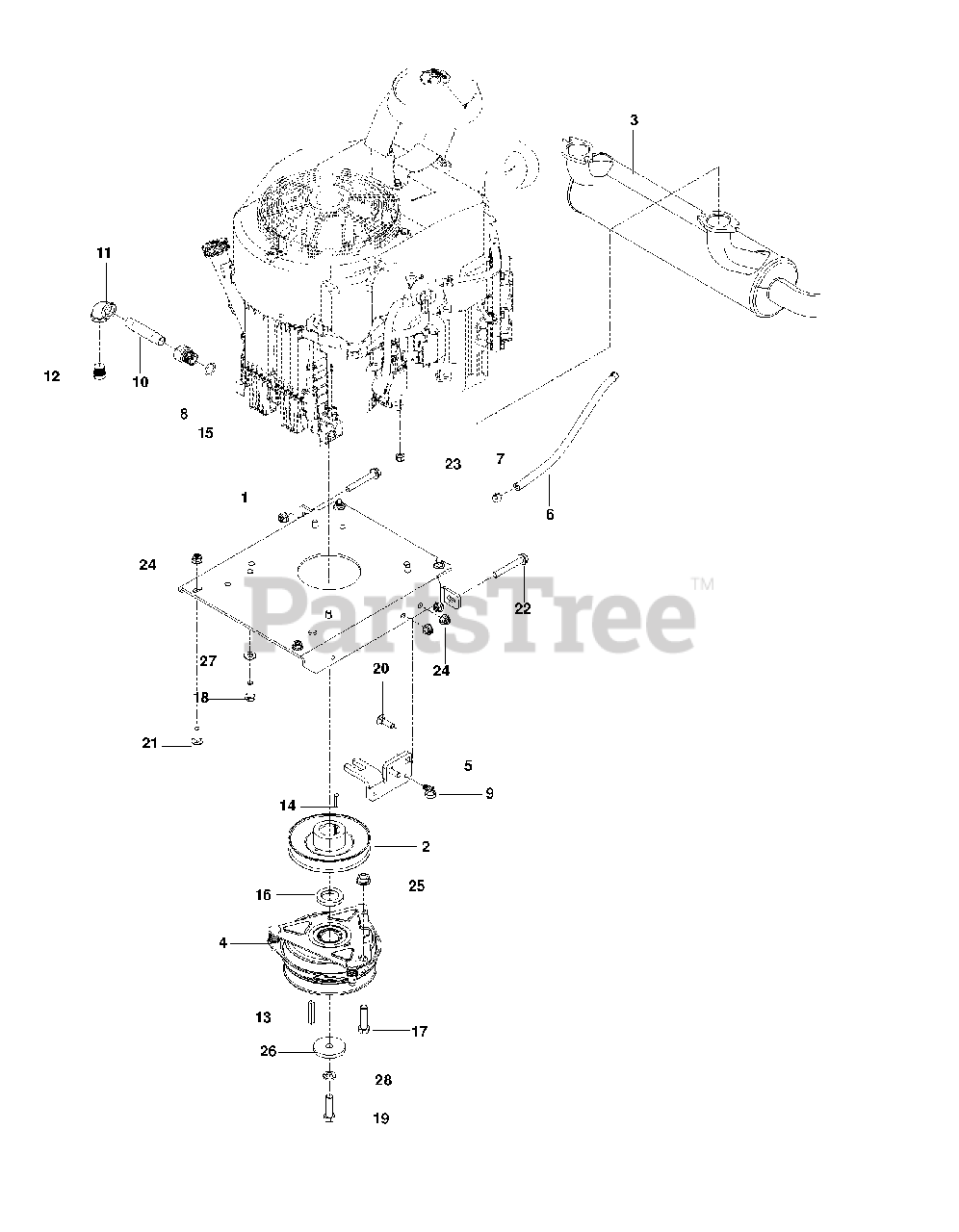

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 510004602

PLATE.ENGINE.BLACK

$133.99

$

In Stock, only 1 left!

0

2

Husqvarna 510019801

PULLEY, ENGINE

$53.99

$

In Stock, only 1 left!

0

3

Husqvarna 525750301

MUFFLER, 29HP KAW FX751V-850V

$241.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$484.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

6

Husqvarna 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539119680

ADAPTER, OIL DRAIN

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539910210

KEY 1/4 SQ X 2

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 6

0

15

Husqvarna 539109618

O-RING

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525313901

SPACER, .25 X 1.135 I.D.

$

$

Not available

17

Husqvarna 539104867

HCS 7/16-14 X 1-1/4 GR 5 ZD

$

$

Not available

18

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

20

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

26

Husqvarna 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

Husqvarna 525554201

HARNESS, FX KAW

Note: NOT SHOWN

$31.99

$

Usually ships in 3-10 days

0
