QA36 (QA42) - Cub Cadet Snow Thrower Attachment Front Power Take-Off-90 Degree Gear Box Parts Diagram

Snow Thrower Attachment

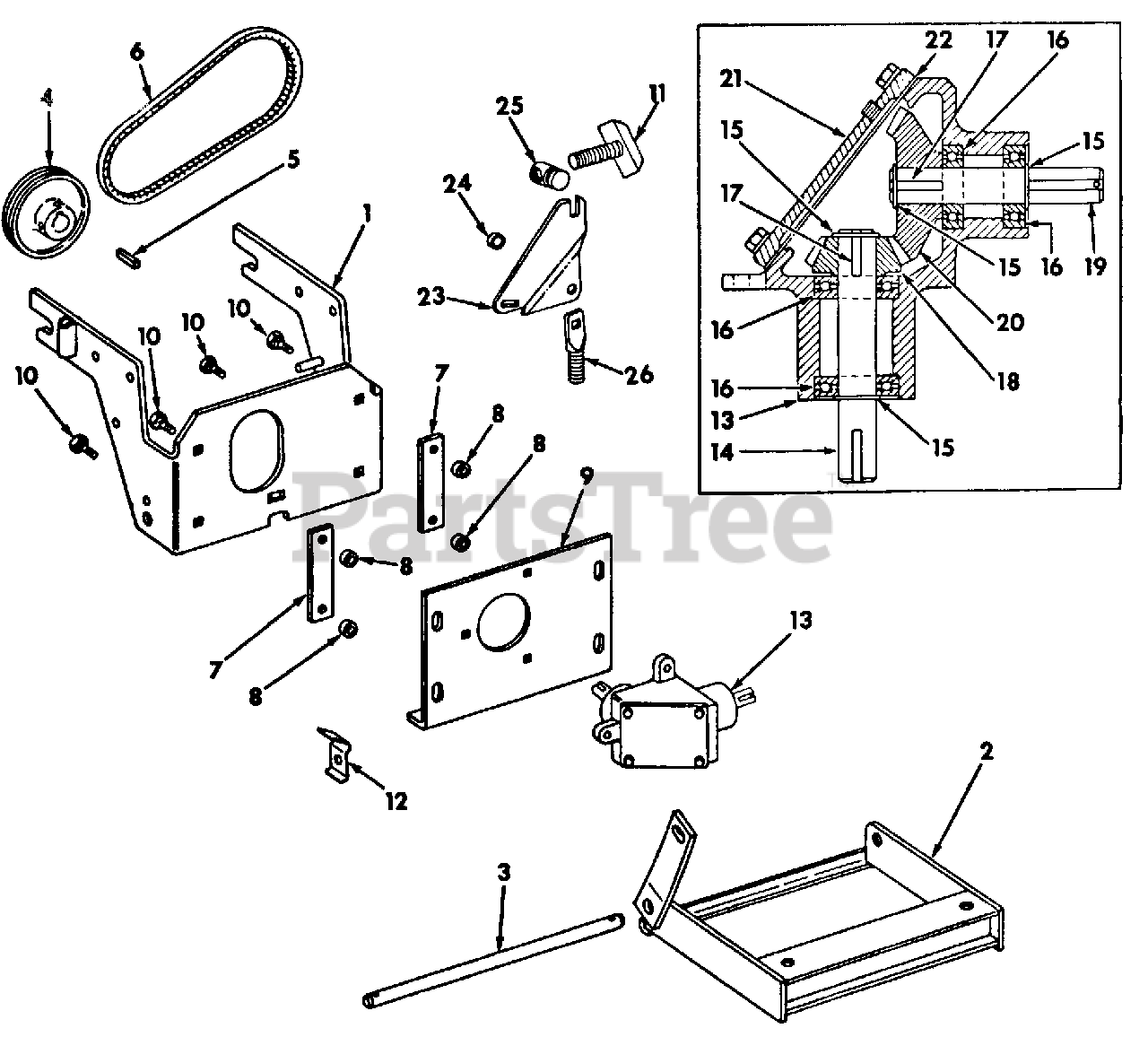

Front Power Take-Off-90 Degree Gear Box Parts Diagram

  • Title

1

Cub Cadet 490-123-R1

Plate Assy, Front Mounting

$

$

Currently unavailable

Cub Cadet 18-684-R1

Bolt, 3/8 X 1-1/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 Cd or Zn-Pltd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .065 Cd or Zn Pltd

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Cd or Zn Pltd Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 544-282-R1

Plate Assy, Front Mounting

$

$

Currently unavailable

2

Cub Cadet 490-129-R1

Bracket Assy, Lift

$

$

Currently unavailable

3

Cub Cadet 490-130-R91

Shaft, Pivot

$

$

Currently unavailable

Cub Cadet IH-187988

Pin, 3/16 X 1-1/4 Cd or Zn-Pltd Cotter
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 485-247-R91

Pulley, Gear Box -Replaces 475 613 R91

$

$

Currently unavailable

Cub Cadet 102-581

Screw, 5/16-18 X 3/8 Hex-Soc-Hd Cup-Pt Set

$

$

Currently unavailable

5

Cub Cadet 474-098-R1

Key, 3/16 X 1-1/4 Sq Parallel

$

$

Currently unavailable

6

Cub Cadet 487-043-R1

Belt, V

$

$

Currently unavailable

7

Cub Cadet 462-729-R1

Spacer, Plate

$

$

Currently unavailable

Cub Cadet 490-133-R1

Bar, Spacer -Use only on Cub Cadet 70, 71, 102, 122 & 123 Tractors

$

$

Currently unavailable

Cub Cadet 20-249-R1

Screw, 1/2-13 X 1 C-Z Slt Truss-Hd Mach

$

$

Currently unavailable

Cub Cadet 180-175

Screw, 1/2-13 X 1-1/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

Washer, 1/2 C-Z Med Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 490-125-R1

Spacer

$

$

Currently unavailable

9

Cub Cadet 490-126-R1

Plate, Gear Box Mounting

$

$

Currently unavailable

10

Cub Cadet 489-374-R1

Bolt, Shoulder

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable

11

Cub Cadet 490-127-R1

Bolt Assy, Belt Adj

$

$

Currently unavailable

12

Cub Cadet 490-128-R1

Plate, Lock

$

$

Currently unavailable

Cub Cadet IH-137185

Pin, 1/8 X 1 C-Z Cot
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 475-596-R1

Box, Gear

$

$

Currently unavailable

14

Cub Cadet 475-606-R1

Shaft, Input

$

$

Currently unavailable

Cub Cadet 16-888-R1

Bolt, 5/16 X 1-1/4 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120376

Nut, 5/16-18 Cd or Zn-Pltd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

Washer, 5/16 Cd or Zn-Pltd Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 269-181-R1

Ring, Retaining Snap

$

$

Currently unavailable

16

Cub Cadet 475-627-R91

Bearing, Inner

$

$

Currently unavailable

Cub Cadet 475-628-R91

Bearing, Outer

$

$

Currently unavailable

17

Cub Cadet 475-642-R1

Key, 3/16 X 11/16 Sq Parallel

$

$

Currently unavailable

18

Cub Cadet 475-604-R1

Gear, Bevel Pinion

$

$

Currently unavailable

19

Cub Cadet 475-602-R1

Shaft, Output

$

$

Currently unavailable

20

Cub Cadet 475-600-R1

Gear, Bevel

$

$

Currently unavailable

21

Cub Cadet 475-597-R1

Cover, Gear Box

$

$

Currently unavailable

Cub Cadet IH-444687

Plug, 1/8-27 Automotive Hex-Soc-Hd Pipe

$

$

Currently unavailable

Cub Cadet 180-020

Screw, 1/4-20 X 3/4 Cd or Zn-Pltd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 Cd or Zn-Pltd Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet 475-598-R1

Gasket, Gear Box Cover

$

$

Currently unavailable

23

Cub Cadet 527-742-R1

Plate, Pivot

$

$

Currently unavailable

Cub Cadet 180-277

Bolt, 3/8 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 442-813

Nut, 3/8-16 Hex Lock

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

24

Cub Cadet 527-743-R1

Spacer

$

$

Currently unavailable

25

Cub Cadet 527-744-R1

Nut, Swivel

$

$

Currently unavailable

26

Cub Cadet 527-745-R1

Bolt, Eye

$

$

Currently unavailable

Cub Cadet IH-120378

Nut, 1/2-13 C-Z Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 120-398

Washer, 17/32 X 1-1/16 X .095 C-Z

$

$

Currently unavailable
