QA36 (QA42) - Cub Cadet Snow Thrower Attachment Rotor Parts Diagram

Snow Thrower Attachment

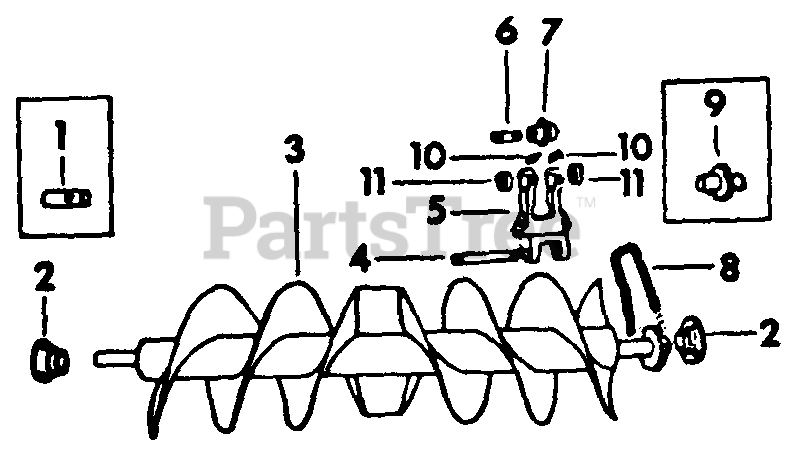

Rotor Parts Diagram

  • Title

1

397030-R1

SHAFT, TAIL

$

$

Not available

2

475538-R91

BEARING W/SET SCREWS

$

$

Not available

16897-R1

BOLT, 5/16-18 X 3/4 CD OR ZN-PLTD SHORT-SQ-NK CRG

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 CD OR ZN-PLTD HEX

$

$

Currently unavailable

Cub Cadet 120214

WASHER, 5/16 CD OR ZN-PLTD MED LOCK

$

$

Currently unavailable

3

59746-C1

ROTOR ASSY.

Note: WILL WORK FOR P/N 397028-R1; USED WITH QA-36

$

$

Not available

3

59747-C1

ROTOR ASSY.

Note: WILL WORK FOR P/N 397029-R1

$

$

Not available

443333

NUT, 5/16-18 CD-PLTD HEX LOCK

$

$

Not available

189298

SCREW, 5/16-18 X 4 C-Z HEX-HD CAP

$

$

Not available

4

397033-R1

PIN MOUNTING

$

$

Not available

Cub Cadet 177923

PIN, 1/8 X 3/4 C-Z COTTER

$

$

Currently unavailable

5

397032-R1

BRACKET, SPROCKET MOUNTING

$

$

Not available

Cub Cadet 120378

NUT, 1/2 TYPE 5

$

$

Currently unavailable

474088-R1

SCREW, 1/2-13 X 3 HEX-HD

$

$

Not available

6

397034-R1

SHAFT, TRANSFER

$

$

Not available

7

76897-C1

SPROCKET, SMALL-14 T

Note: REPLACES 397035-R1 BY ALSO ORDERING 549720-R1 WASHER

$

$

Not available

Cub Cadet 120378

NUT, 1/2-13 C-Z HEX

$

$

Currently unavailable

474088-R1

SCREW, 1/2-13 X 3 C-Z HEX-HD CAP

$

$

Not available

19689-R1

PIN, 1/4 X 1-1/4 HV COILED SPRING

$

$

Not available

8

CHAIN, ROLLER-FOR 24- T SPROCKET

Note: USE 51 LINKS 1/2 PITCH ROLLER CHAIN FROM 10 FT. ROLLS MARKED-1790 D & 1 CONNECTING LINK, 1301 D

$

$

Not available

1301-D

LINK, #40 SINGLE PITCH CONNECTING

$

$

Not available

9

397031-R1

SPROCKET ASSY., ROTOR

$

$

Not available

10

271287

FITTING, 1/4-28 PTF STR LUB

$

$

Not available

11

387835-R91

BEARING, NEEDLE

$

$

Not available

Cub Cadet 490087-R1

PACKAGE, PRODUCT GRAPHICS

$

$

Currently unavailable
