QT02015GNSN - Generac 20kW Home Standby Generator (SN: 4340210 - 4340214) (2006) Exhaust System (0F7492) Parts Diagram

20kW Home Standby Generator

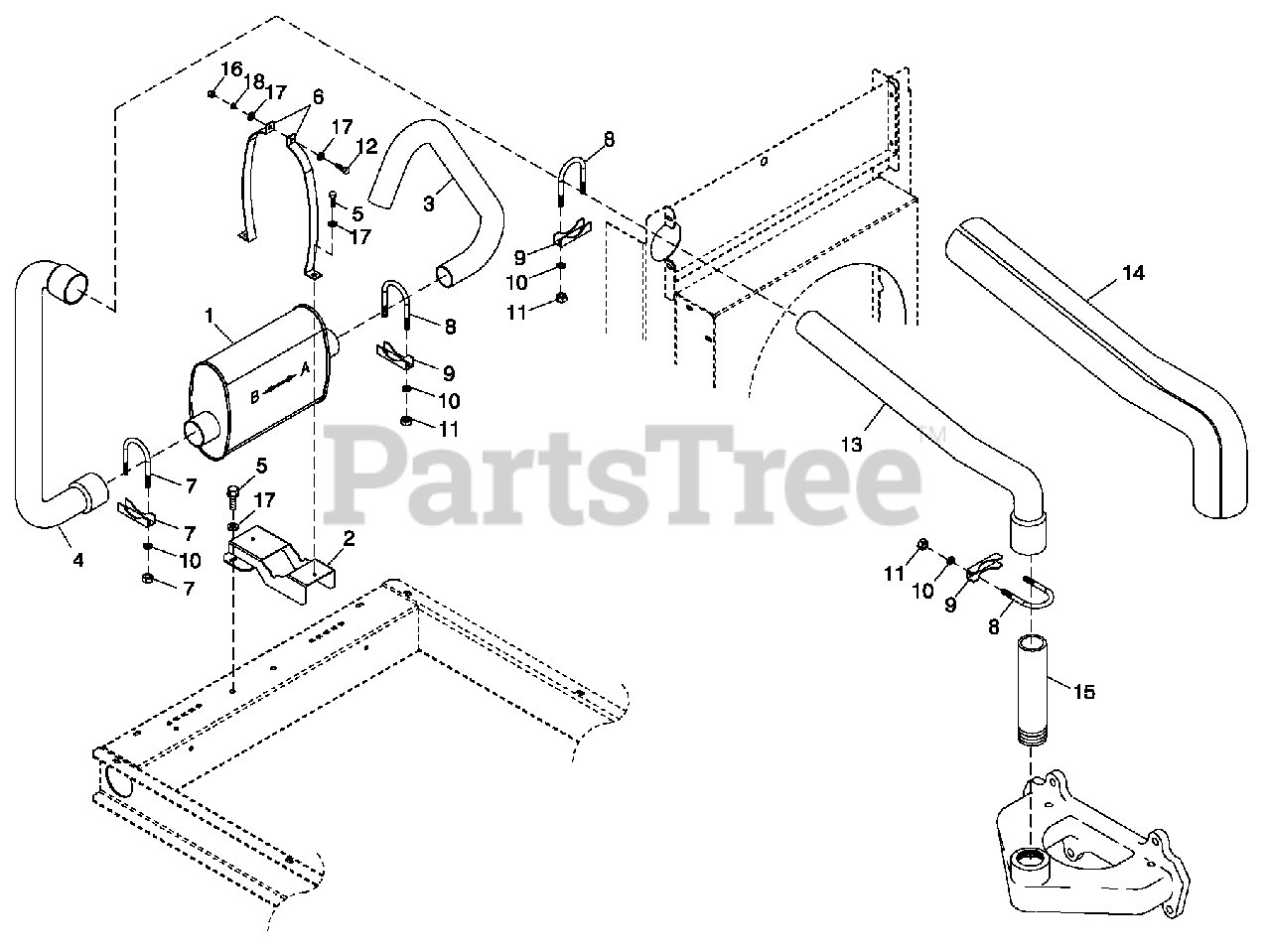

Exhaust System (0F7492) Parts Diagram

  • Title

1

Generac 0F7366

MUFFLER C1

Note: ORDER PART NUMBER 0K7780

$

$

Not available

2

Generac 0F7647

MUFFLER SADDLE

$24.99

$

Usually ships in 2-12 days

0

3

Generac 0F8095

PIPE EXHAUST OUTLET

$128.99

$

Usually ships in 2-12 days

0

4

Generac 0F7538

PIPE EXH INLET MUFLR SIDE 1.5L

$259.99

$

Usually ships in 2-12 days

0

5

Generac 0E3257

SCREW HWHTF M6'1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

6

Generac 0F7644

MUFFLER STRAP

$41.99

$

Usually ships in 2-12 days

0

7

Generac 0C6119

BOLT U 5/16'18 X 2'1/4

$21.99

$

Usually ships in 2-12 days

0

8

Generac 36434

BOLT U 5/16'18 X 2.09

$

$

Not available

9

Generac 36449

SADDLE 2 INCH

$

$

Not available

10

Generac 22129

WASHER LOCK M8'5/16

$

$

Not available

11

Generac 22259

NUT HEX 5/16'18 STEEL

$

$

Not available

12

Generac 38750

SCREW HHC M6'1.0 X 30 G8.8

$

$

Not available

13

Generac 0F7539

PIPE EX INLET MANIFLD SIDE 1.5

$389.99

$

Usually ships in 2-12 days

0

14

0.00E+00

EXHAUST BLANKET 800MM

$

$

Not available

15

Generac 0E2844

NIPPLE TOE 1.5NPTX5.5 BLK IRON

$40.99

$

Usually ships in 2-12 days

0

16

Generac 49813

NUT HEX M6 X 1.0 G8 YEL CHR

$

$

Not available

17

Generac 22473

WASHER FLAT 1/4'M6 ZINC

$

$

Not available

18

Generac 22097

WASHER LOCK M6'1/4

$

$

Not available
