QTE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Deck Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

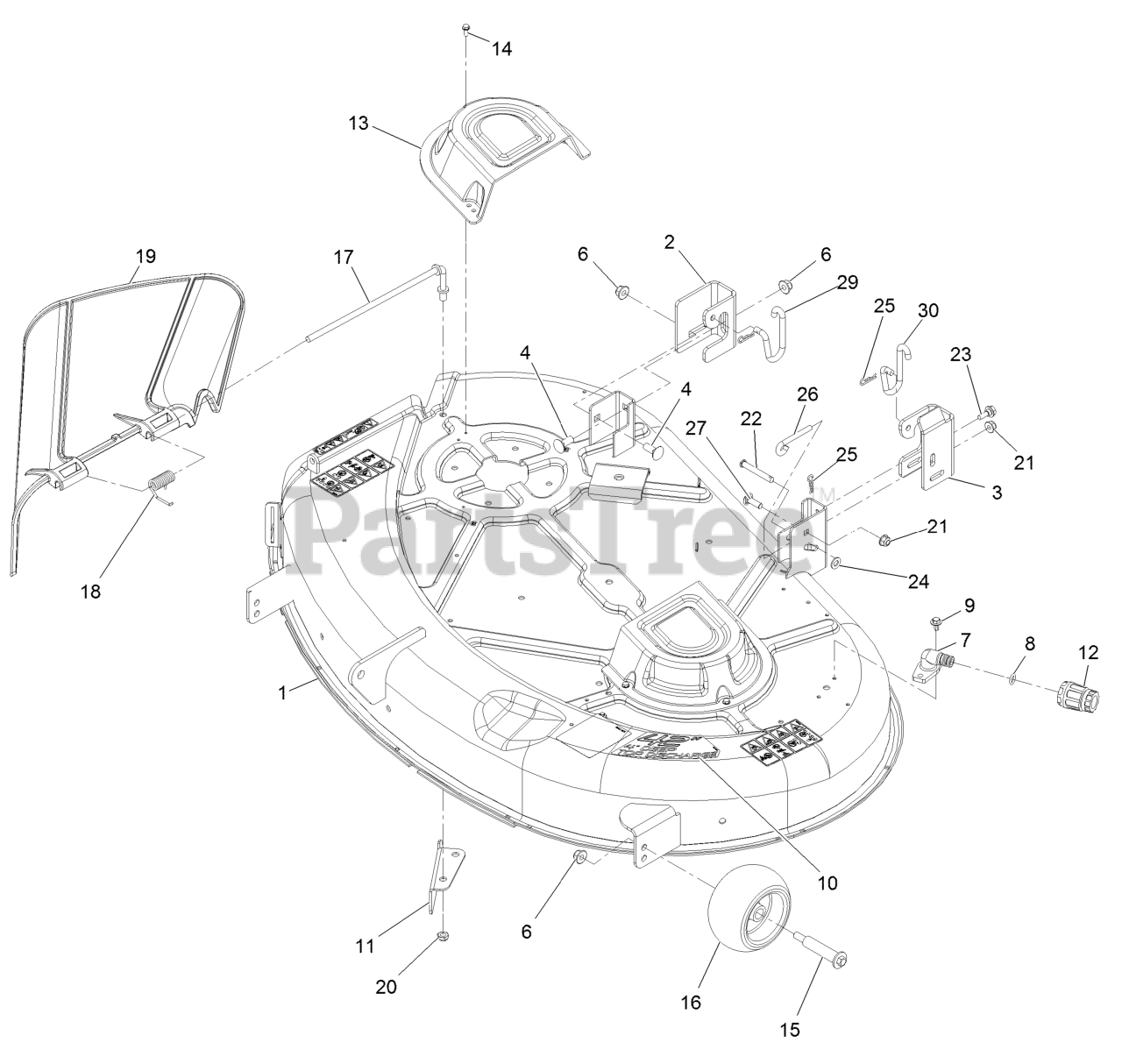

Deck Assembly Parts Diagram

  • Title

1

Exmark 131-3604

42 INCH DECK AND DECAL AS

$1042.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 20+

0

3

Exmark 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 20+

0

4

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 12

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, Qty 13

0

9

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Exmark 117-1222

DECAL

$8.99

$

In Stock, Qty 5

0

11

Exmark 112-3983-03

BAFFLE-CUTOFF

$25.99

$

In Stock, Qty 5

0

12

Exmark 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 16

0

13

Exmark 108-7889

COVER-BELT

$33.99

$

In Stock, Qty 6

0

14

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 18

0

15

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

16

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

17

Exmark 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 6

0

18

Exmark 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 18

0

19

Exmark 112-3951

DEFLECTOR

$60.99

$

In Stock, Qty 20+

0

20

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 110-0618

PIN-CLEVIS

$13.99

$

In Stock, only 1 left!

0

23

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Exmark 131-0955

ROD-LEVEL, DECK

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

29

Exmark 131-8734

LINK-RETENTION, DECK (RH)

$7.99

$

In Stock, Qty 17

0

30

Exmark 131-4131

LINK-RETENTION, DECK (LH)

$7.99

$

In Stock, Qty 16

0
