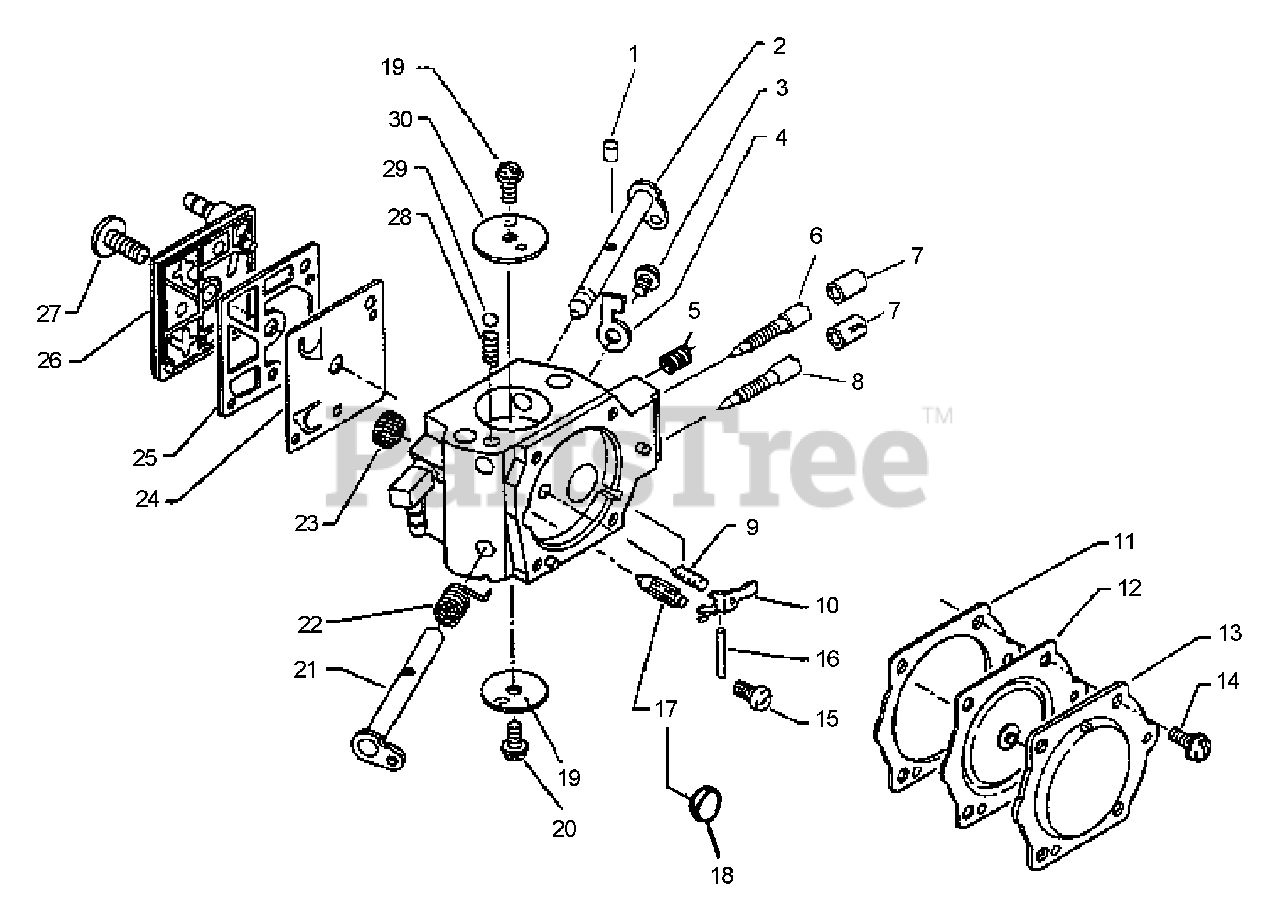

QV-6700 - Echo QuikVent Chainsaw (Type 1) Carburetor Parts Diagram

QuikVent Chainsaw (Type 1)

Carburetor Parts Diagram

  • Title

Echo 12300032432

CARBURETOR HDA-76

Note: S/N 001001 - 003450. INCLUDES THE FOLLOWING

$109.99

$

Usually ships in 2-4 days

0

Echo 12300032631

CARBURETOR HDA-151A
(Superseded to 12300032632)

Note: S/N 003451 & UP. INCLUDES THE FOLLOWING

$148.99

$

Usually ships in 2-4 days

0

1

------------------

PLUG, FRICTION

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

2

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

3

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

4

Echo 12315612330

STOP, THROTTLE

Note: HDA-76

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12315630830

STOP, THROTTLE

Note: HDA-151A

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 12312032430

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

Note: HDA-76

$

$

Not available

6

Echo 12312032631

NEEDLE - HIGH SPEED

Note: HDA-151A

$4.49

$

In Stock, only 4 left!

0

7

Echo 12315139230

CAP, LIMITER

Note: HDA-151A

$1.99

$

In Stock, Qty 20+

0

8

Echo 12311818330

NEEDLE - LOW SPEED
(Superseded to 12311818331)

Note: HDA-76

$4.99

$

Usually ships in 2-4 days

0

8

Echo 12311802260

NEEDLE - LOW SPEED

Note: HDA-151A

$4.99

$

Usually ships in 2-4 days

0

9

------------------

SPRING, METERING LEVER

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

10

------------------

LEVER, METERING

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

11

------------------

GASKET, METERING

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

12

------------------

DIAPHRAGM, METERING

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

13

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

14

------------------

SCREW

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

15

------------------

SCREW, METERING LEVER PIN

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

16

------------------

PIN, METERING LEVER

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

17

------------------

VALVE, INLET NEEDLE

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

18

------------------

PLUG, WELCH

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

19

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

21

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

22

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

23

------------------

STRAINER

Note: Use Repair Kit HDA-76 P/N 12310019830 and Repair Kit HDA-151A P/N 12310032630

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

25

------------------

GASKET, PUMP

Note: Use Repair Kit HDA-76 P/N 12310019830, Repair Kit HDA-151A P/N 12310032630 and Diaphragm/Gasket Kit P/N 12310117330

$

$

Not available

26

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

27

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

29

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310019830

REPAIR KIT

Note: HDA-76

$23.99

$

Usually ships in 2-4 days

0

Echo 12310032630

REPAIR KIT

Note: HDA-151A

$17.99

$

Usually ships in 2-4 days

0

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
