QZE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

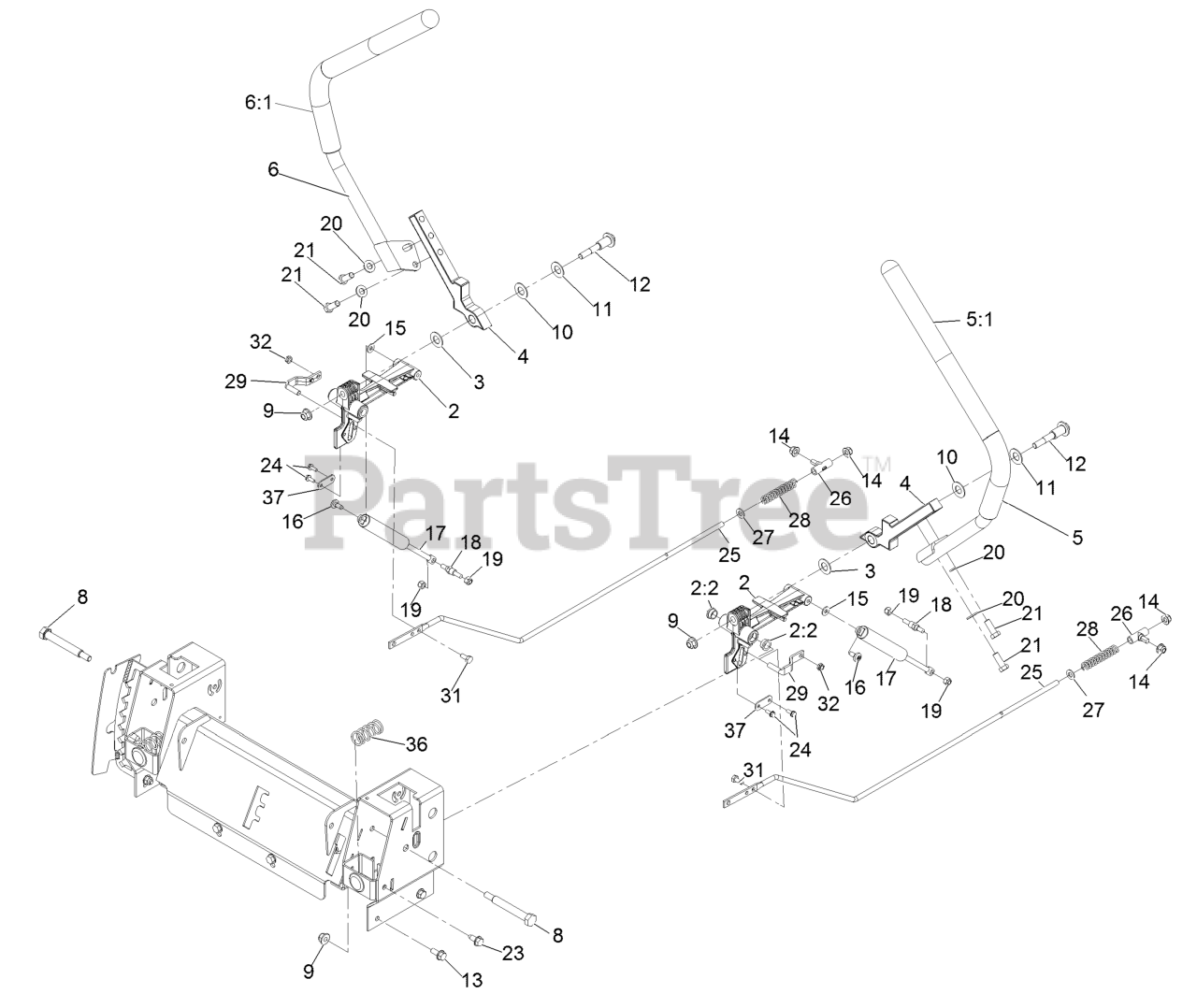

Motion Control Assembly Parts Diagram

  • Title

2

Exmark 119-3470

Actuator Arm ASM

$26.99

$

In Stock, only 3 left!

0

2:2

Exmark 256-156

Bushing-Flange

$13.99

$

In Stock, only 4 left!

0

3

Exmark 120-2273

Washer-Nylon

$2.99

$

In Stock, Qty 7

0

4

Exmark 133-9299-05

Arm-Control

$47.99

$

In Stock, Qty 14

0

5

Exmark 133-7055

Handle-Control, LH

$61.99

$

Usually ships in 3-6 days

0

5:1

Exmark 121-0726

Grip

$14.99

$

In Stock, Qty 11

0

6

Exmark 133-7057

Handle-Control, RH

$61.99

$

In Stock, only 1 left!

0

6:1

Exmark 121-0726

Grip

$14.99

$

In Stock, Qty 11

0

8

Exmark 115-5099

Bolt-Pivot

$5.49

$

In Stock, only 3 left!

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 117-1240

Washer

$2.99

$

In Stock, Qty 20+

0

11

Exmark 119-8925

Washer-Belleville

$1.49

$

In Stock, Qty 20+

0

12

Exmark 117-1198

Bolt-Pivot

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, only 4 left!

0

14

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 119-8952

Washer

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-7950

Screw-1/4-20 X 1/2 Tf Torx Plus

$2.99

$

In Stock, Qty 17

0

17

Exmark 131-4132

Damper

$69.99

$

In Stock, Qty 14

0

18

Exmark 110-6810

Stud-Damper
(Superseded to 138-7215)

$2.99

$

In Stock, only 1 left!

0

19

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

21

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

23

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

24

Exmark 32144-1

Screw-HWH #10-24 X 1/2 Taptite

$3.49

$

In Stock, Qty 18

0

25

Exmark 117-5388

Rod-Hydro
(Superseded to 138-7217)

$12.99

$

In Stock, only 2 left!

0

26

Exmark 119-8842

Mount-Rod, Hydro
(Superseded to 138-7218)

$12.99

$

In Stock, only 3 left!

0

27

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-603807

Spring

$3.49

$

In Stock, Qty 18

0

29

Exmark 121-1753

Pin-Rod, Hydro

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, only 4 left!

0

32

Exmark 3296-56

Nut-Nyloc 1/4-20 Thin

$2.49

$

In Stock, Qty 20+

0

36

Exmark 119-8876

Spring-Return

$2.99

$

In Stock, only 1 left!

0

37

Exmark 119-8948

Plate-Stop, Hydro

$2.99

$

Usually ships in 3-6 days

0
