QZE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

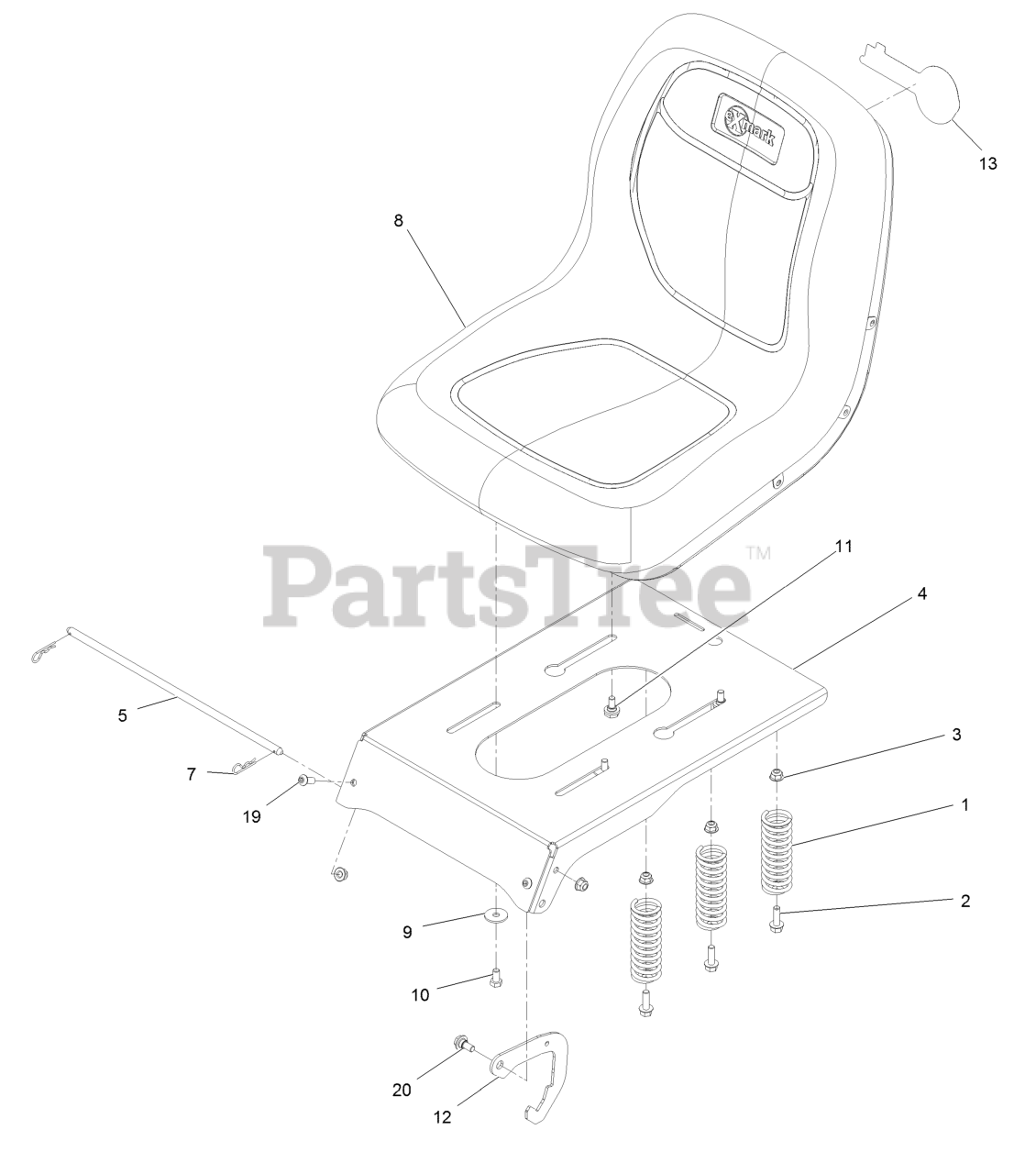

Seat Assembly Parts Diagram

  • Title

1

Exmark 92-7054

Spring-Compression

$20.99

$

In Stock, Qty 19

0

2

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 12

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 131-4037-03

Pan-Seat

$74.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3433

Rod-Pivot, Narrow

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 3290-250

Pin-Cotter

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 119-8956

Seat-18 In

$298.99

$

Usually ships in 3-6 days

0

9

Exmark 5-4460

Washer-Pivot

$7.99

$

In Stock, Qty 20+

0

10

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 20+

0

11

Exmark 37-8771

Screw-Shoulder 5/16-18 X 5/8

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 132-9353

Latch-Seat
(Superseded to 138-7250)

$8.49

$

In Stock, only 1 left!

0

13

Exmark 135-3747

Decal, Exmark Logo

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 16

0

20

Exmark 19-1470

Screw-Shoulder

$3.99

$

In Stock, Qty 7

0
