R 120 S - Husqvarna Swedish Riding Mower 42INCH CUTTING DECK Parts Diagram

Swedish Riding Mower

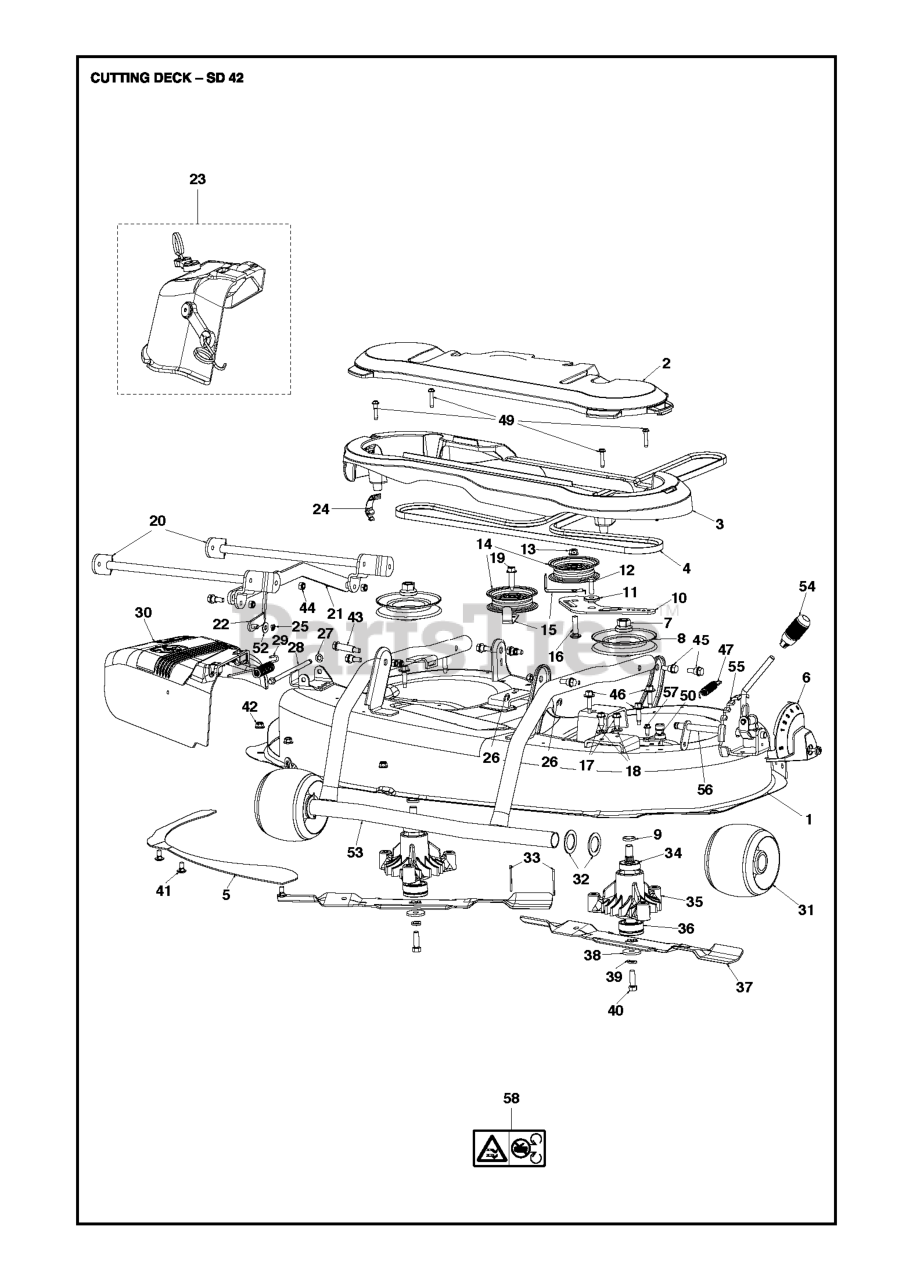

42INCH CUTTING DECK Parts Diagram

  • Title

21

Husqvarna 580620101

LINK ARM

$

$

Not available

54

Husqvarna 574328801

HANDLE

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580926301

COVER CUTTING DECK, UPPER

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580926401

COVER CUTTING DECK, LOWER

$

$

Not available

16

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 573971801

COVER

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580619101

DECK ATTACHMENT ASSY
(Superseded to 580619102)

$

$

Not available

11

Husqvarna 574874101

WASHER
(Superseded to 584288601)

$

$

Not available

49

Husqvarna 817490420

SCREW.HXWH.THDRL.1/4-20X1-1/4
(Superseded to 583608401)

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532138971

42" HI-LIFT BLADE

$14.99

$

In Stock, Qty 20+

0

40

Husqvarna 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 14

0

12

Husqvarna 725245371

SCREW

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

47

Husqvarna 532401872

SPRING RETURN

$4.99

$

In Stock, Qty 18

0

36

Husqvarna 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, Qty 10

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

19

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

7

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

45

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

31

Husqvarna 522735901

WHEEL

$42.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 4 left!

0

58

Husqvarna 574510001

DECAL

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 575802102

RP LEVER ASSY SD42

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

In Stock, Qty 14

0

23

Husqvarna 532198383

COVER ASM.MULCH/HDW.DLX.42"
(Superseded to 954040501)

$28.99

$

In Stock, only 1 left!

0

4

Husqvarna 580926501

BELT DRIVE 42 SD
(Superseded to 584299801)

$56.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193108

DEFLECTOR 42
(Superseded to 532403004)

$44.99

$

In Stock, Qty 5

0

22

Husqvarna 581179901

LIFTING ARM

$

$

Not available

15

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

14

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

52

Husqvarna 532155415

WASHER.20X8.5

$4.99

$

In Stock, only 2 left!

0

55

Husqvarna 522523201

BRACKET

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 721618701

COTTER PIN

$4.99

$

In Stock, Qty 6

0

13

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$37.99

$

In Stock, Qty 20+

0

32

Husqvarna 574264501

WASHER

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522450901

CROSS BAR

$39.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

38

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, only 4 left!

0

53

Husqvarna 580620601

FRAME TUBE
(Superseded to 580620602)

$113.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 506597403

COLLAR SCREW 30 X 13

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 580620701

BRACKET CLUTCHING ARM

$26.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0
