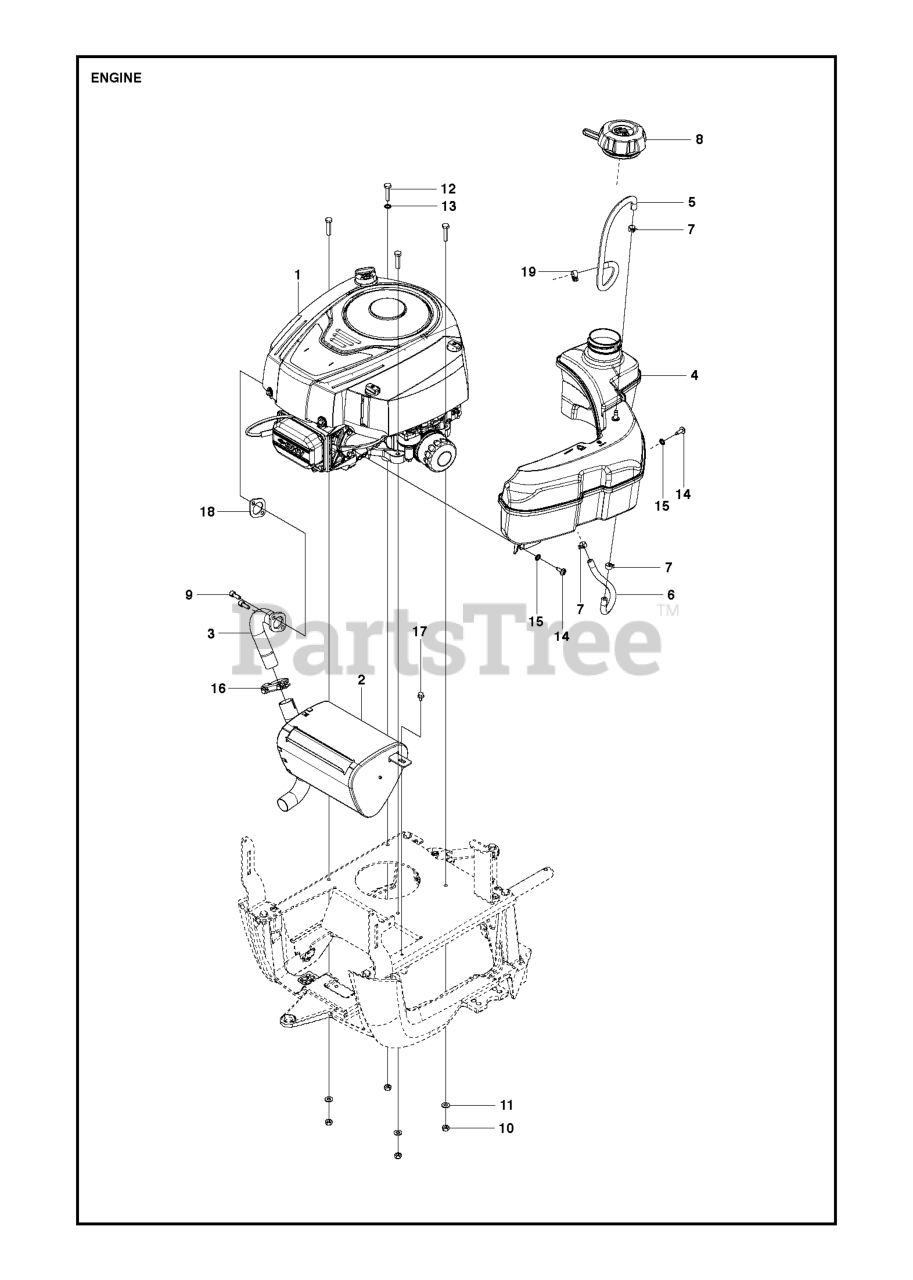

R 120 S - Husqvarna Swedish Riding Mower ENGINE Parts Diagram

Swedish Riding Mower

ENGINE Parts Diagram

  • Title

9

Husqvarna 506556301

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

11

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 544282604

HOSE CLAMP

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506914501

FLANGE

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 580735501

MUFFLER ASSY

$

$

Not available

6

Husqvarna 504800013

FUEL HOSE

$

$

Not available

5

Husqvarna 504800014

FUEL HOSE

$

$

Not available

4

Husqvarna 580541101

FUEL TANK

$68.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 735216400

Washer

$

$

Not available

7

Husqvarna 535469701

CLAMP

$

$

Not available

10

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

17

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544400401

SCREW

$

$

Not available

1

Husqvarna 580375201

ENGINE

$

$

Not available

3

Husqvarna 580376601

MANIFOLD

$

$

Not available

15

Husqvarna 735216400

Washer

$

$

Not available
