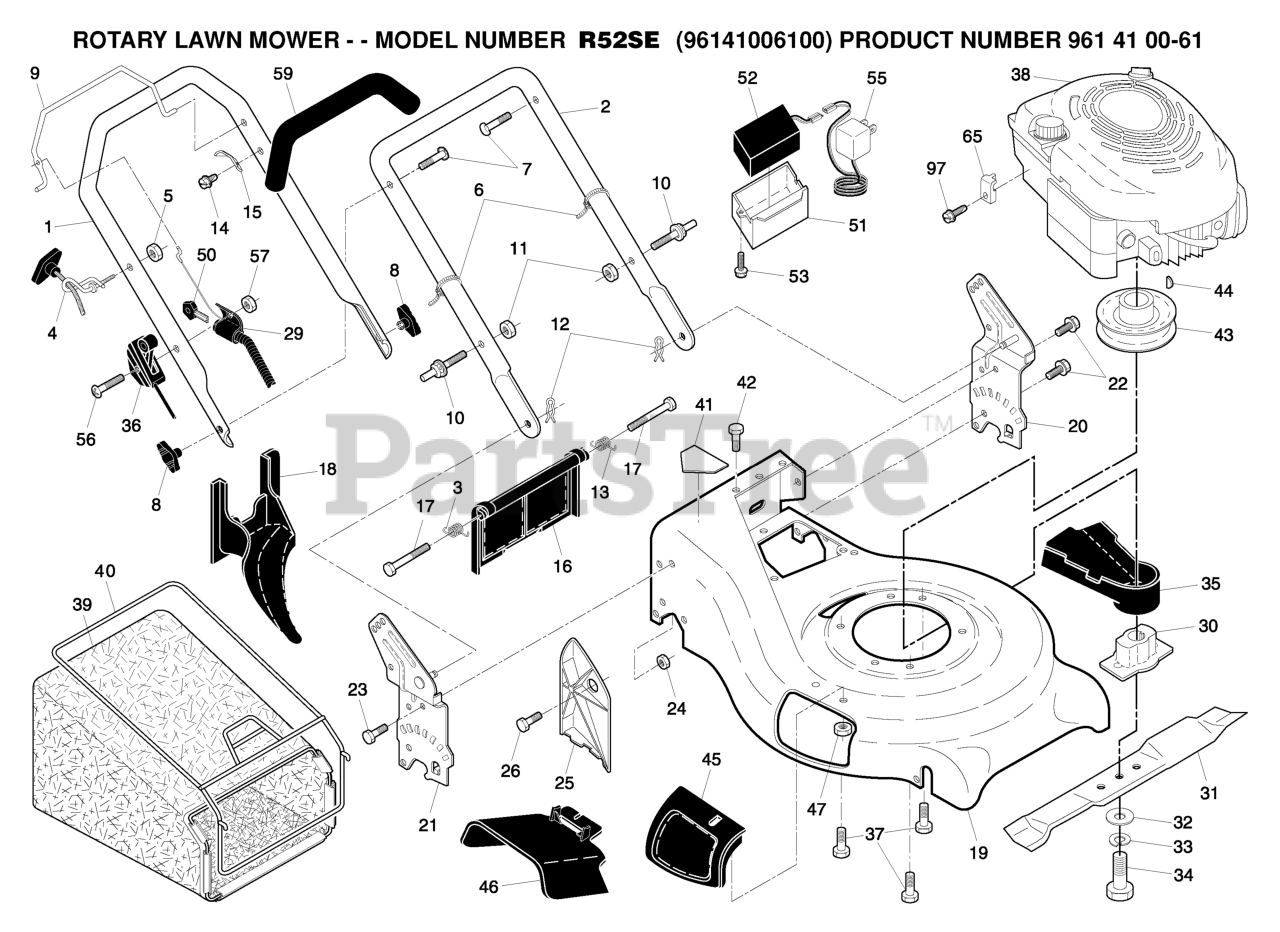

R 52 SE (961410061-00) - Husqvarna Walk-Behind Mower (2006-05) CHASSIS / FRAME Parts Diagram

Walk-Behind Mower

CHASSIS / FRAME Parts Diagram

  • Title

- -

Husqvarna 532199543

NEEDS DESCRIPTION

$

$

Currently unavailable

- -

Husqvarna 532199542

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532186053

SPRING.LH.REAR.DOOR.21.RWGD

$

$

Not available

10

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532182154

CONTRL.THROTTLE.

$

$

Not available

8

Husqvarna 532087692

KNOB

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532194953

CONTROL.COMBI.KEY.ASMR

$103.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$44.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

SCREW

$

$

Not available

14

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

1

Husqvarna 532178067

UPPER HANDLE
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532189185

NEEDS DESCRIPTION

$

$

Not available

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 10

0

31

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

97

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 581826501

CHARGER BATTERY CE

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532194029

BRKT.ASM.HNDL.21.RWGD.LT
(Superseded to 532193917)

$

$

Not available

17

Husqvarna 532184193

BOLT

$

$

Not available

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 873132004

$

$

Currently unavailable

65

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

13

Husqvarna 532186052

SPRING.RH.REAR.DOOR.21.RWGD

$

$

Not available

56

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

- -

Husqvarna 532195484

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532194031

BRKT.ASM.HNDL

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 6

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532191819

NEEDS DESCRIPTION

$

$

Not available

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 8

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532194644

FRAME.CATCHER.21.RGD.AG

$60.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532184941

PULLEY.ENG.25MMM

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532400917

NEEDS DESCRIPTION

$472.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532187723

HI-PRO KEY

$

$

Not available

15

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$8.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532402018

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 532193707

ADAPTER.BLADE
(Superseded to 532420097)

$10.99

$

In Stock, Qty 20+

0

53

Husqvarna 817411318

SCREW.HWH.13-16X1.12

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$34.99

$

In Stock, only 2 left!

0

- -

Husqvarna 532195485

NEEDS DESCRIPTION

$

$

Currently unavailable

51

Husqvarna 532193476

BOX.BATTERY.21RD.,RWGD

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 12

0

52

Husqvarna 532189589

BATTERY WITH AMP CONECTOR AGM
(Superseded to 584353901)

$103.99

$

In Stock, only 1 left!

0
