R1-18OE01 (518-H) - Toro Garden Tractor (1990) BLOWER HOUSING AND GOVERNOR Parts Diagram

Garden Tractor

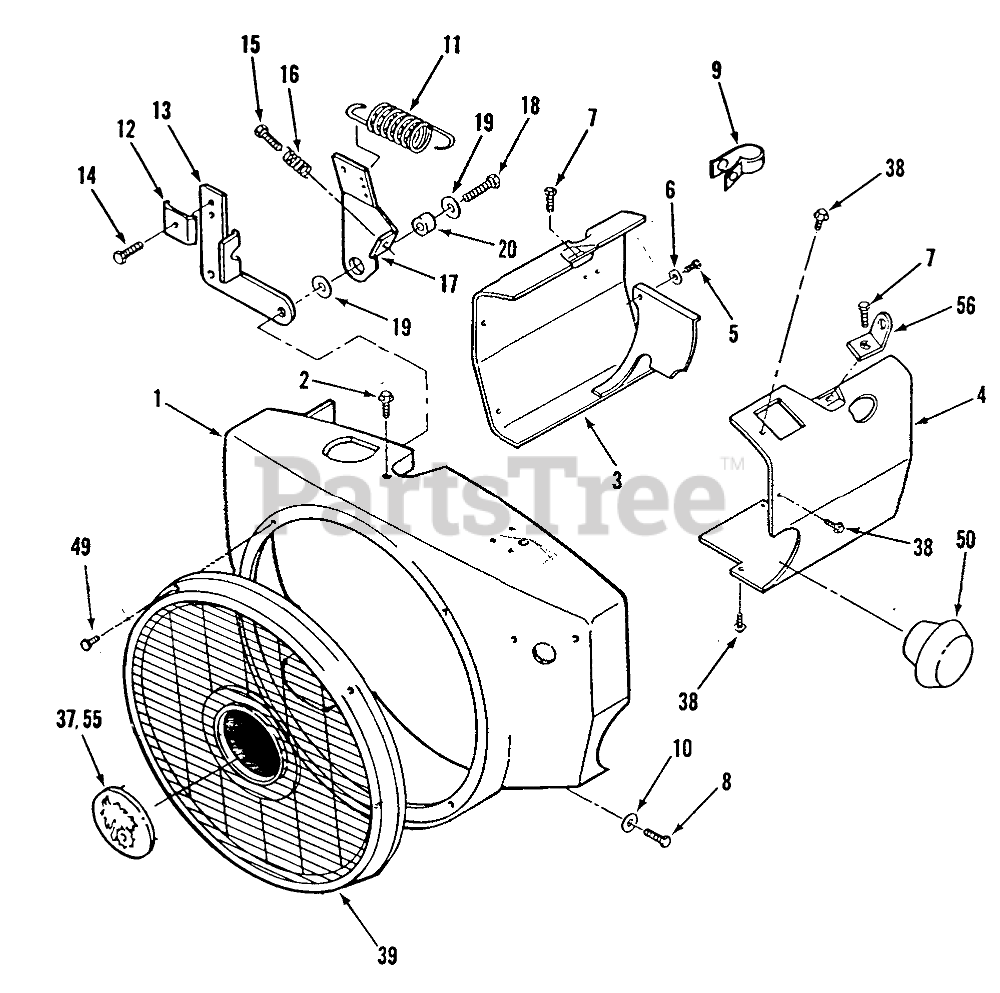

BLOWER HOUSING AND GOVERNOR Parts Diagram

  • Title
1

Toro 134-4654-01

Blower Housing

$

$

Currently unavailable

2

Toro 815-0261

Screw, Cap-Hex. Hd.

$

$

Currently unavailable

3

Toro 134-4615-01

Cylinder Air Housing

$

$

Currently unavailable

4

Toro 134-4614-01

Cylinder Air Housing

$

$

Currently unavailable

5

Toro 815-0290

Screw, Cap-Hex Hd.

$

$

Currently unavailable

6

Toro 526-0021

Washer, Flat

$

$

Currently unavailable

7

Toro 821-0016

Wash. Hd. Screw 5/16-18 x 3/4

$

$

Currently unavailable

8

Toro 815-0290

Screw, Cap-Hex Hd.

$

$

Currently unavailable

9

Toro 332-2319

Camp, Wire-Alternator Leads

$

$

Currently unavailable

10

Toro 526-0018

Washer, Flat

$

$

Currently unavailable

11

Toro 150-1214

Spring, Governor

$

$

Currently unavailable

12

Toro 153-0593

Cable Clamp

$

$

Currently unavailable

13

Toro 150-1725

Bracket Cable

$

$

Currently unavailable

14

Toro 815-0359

ST Screw nr. 10-32 x 1/2

$

$

Currently unavailable

15

Toro 815-0510

Screw, Tapping Hex Head

$

$

Currently unavailable

16

Toro 150-1398

Spring Idle Setting

$

$

Currently unavailable

17

Toro 150-1576

Arm-Governor Control

$

$

Currently unavailable

18

Toro 815-0436

Screw-Cap Hex Washer Hd.

$

$

Currently unavailable

19

Toro 526-0021

Washer, Flat

$

$

Currently unavailable

20

Toro 150-1269

Bushing Control Arm

$

$

Currently unavailable

37

Toro 517-0136

Black Nylon Bushing

$

$

Currently unavailable

38

Toro 821-0008

Screw, Cup Hex Washer Hd.

$

$

Currently unavailable

39

Toro 134-4689

Stationary Guard

$

$

Currently unavailable

49

Toro 815-0575

Wash. Hd. Screw 1/4-20 x 3/8

$

$

Currently unavailable

50

Toro 517-0190

Hole Plug

$

$

Currently unavailable

55

Toro 99-2389

Nameplate Logo

$

$

Currently unavailable

56

Toro 403-1523-01

Lifting Bracket

$

$

Currently unavailable
