R2-12O502 (212-5) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SEAT ASSEMBLY Parts Diagram

Garden Tractor

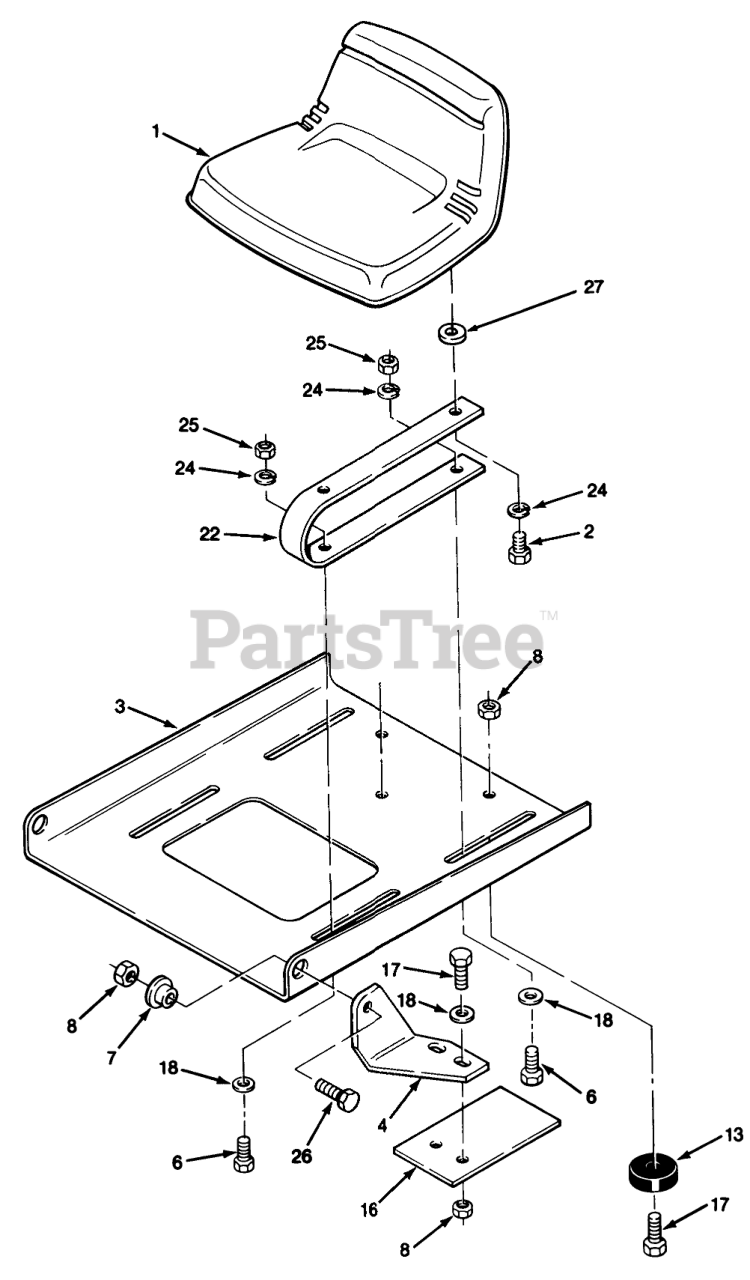

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 79-0670

SEAT V-510

$

$

Not available

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 113852

PLATE-SEAT PIVOT B

$

$

Not available

4

Toro 112745

BRACKET-PIVOT L.H B

$36.99

$

Usually ships in 3-6 days

0

Toro 112744

Bracket-Pivot RH

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

16

Toro 112961

PLATE R

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 112837

SPRING-SEAT B

$

$

Not available

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

26

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
