R5001 - Snapper Rear-Tine Tiller, 5hp 5HP Handles & Controls Parts Diagram

Rear-Tine Tiller, 5hp

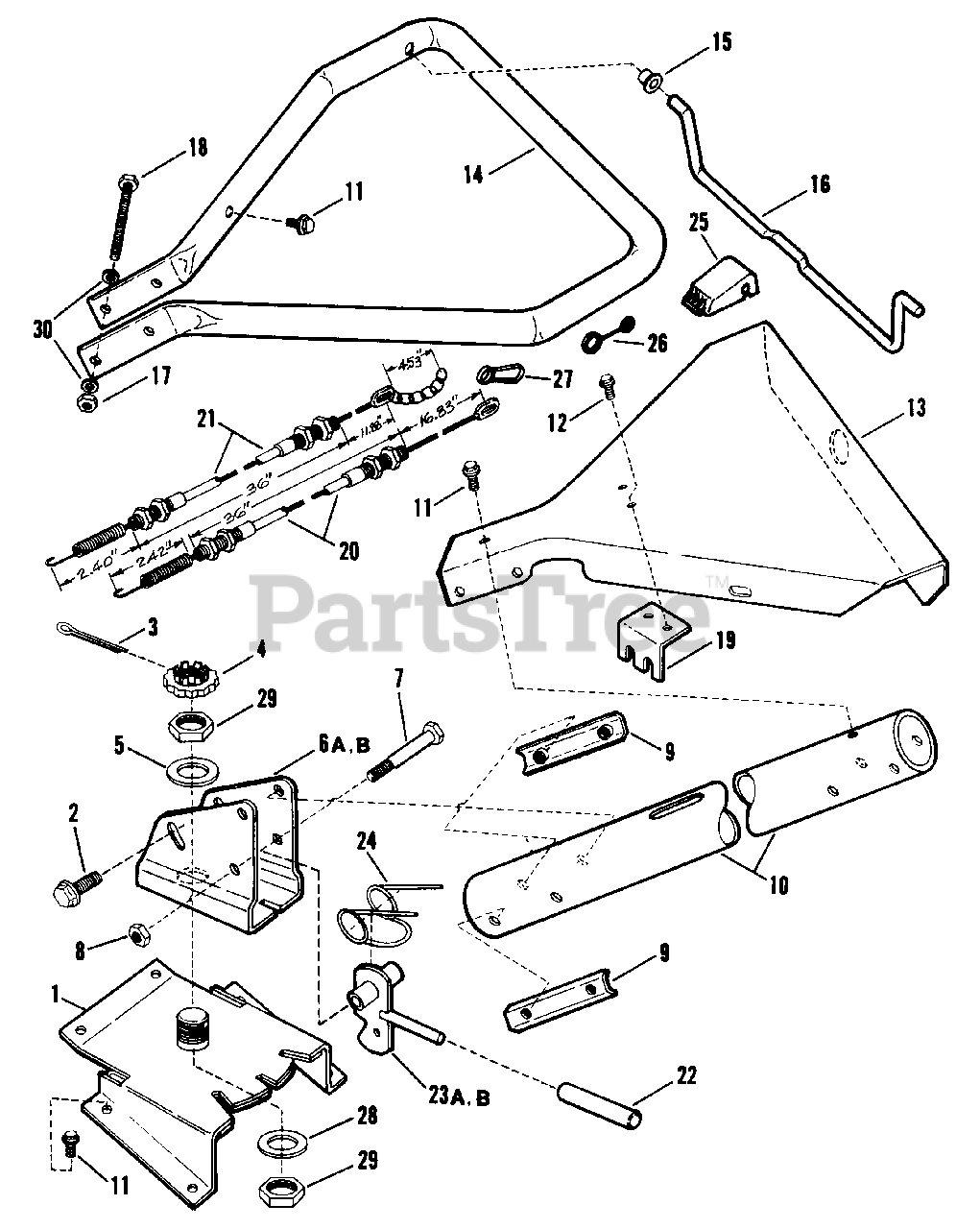

5HP Handles & Controls Parts Diagram

  • Title

1

Snapper 7047854

BRACKET Latch
(Superseded to 7047854YP)

$100.99

$

Usually ships in 2-12 days

0

2

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7090654

PIN, 5/32 x 1-1/4" Cotter

Note: (Used on model RT5). (was 9-0042)

$

$

Currently unavailable

4

Snapper 7014840

RETAINER, Nut Locking
(Superseded to 7014840YP)

Note: (Used on model RT5)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7090864

WASHER, 13/16" Flat

$

$

Not available

6A

Snapper 7036106

BRACKET, Handle
(Superseded to 7036106YP)

Note: (Used on model RT5)

$62.99

$

Usually ships in 2-12 days

0

6B

Snapper 7036059

(NLA) BRACKET, Handle

Note: (Used on model R5000-use with item 23B)

$

$

Currently unavailable

7

Snapper 7090169

SCREW, 3/8-24 x 1/2" Hex Head Cap

$

$

Not available

8

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

9

Snapper 7051462

PLATE, Tap

$

$

Currently unavailable

10

Snapper 7038066

TUBE, Handle Bar Support

$

$

Not available

11

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

12

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7036061

PANEL (5 HP)
(Superseded to 7036061YP)

$66.99

$

Usually ships in 2-12 days

0

14

Snapper 7035206

BAR, Handle
(Superseded to 7035206YP)

Note: Was 35025

$101.99

$

Usually ships in 2-12 days

0

15

Snapper 7014681

BUSHING
(Superseded to 7014681YP)

$4.49

$

In Stock, Qty 12

0

16

Snapper 7018577

BAIL

$

$

Not available

17

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

18

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, Grade 5
(Superseded to 703870)

Note: Was 90553 (Was P/N 90831)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7032284

BRACKET

$

$

Currently unavailable

20

Snapper 7018776

CABLE., Traction Control
(Superseded to 7018776YP)

Note: Was 18578 (Now use 18776 + 15251)

$29.99

$

Usually ships in 2-12 days

0

21

Snapper 7057415

CABLE, Tine Control
(Superseded to 7057415YP)

Note: Was 57359 (Now 57415 + 15252, Includes 26 & 27)

$96.99

$

Usually ships in 2-12 days

0

22

Snapper 7022295

GRIP, Handle
(Superseded to 7022295YP)

Note: Was 10681

$6.99

$

In Stock, Qty 7

0

23A

Snapper 7040509

LATCH

Note: (Used on model RT5)

$

$

Currently unavailable

23B

Snapper 7040489

LATCH

Note: (Used on model R5000-use with item 6B)

$

$

Currently unavailable

24

Snapper 7014380

SPRING
(Superseded to 7014380YP)

$8.99

$

In Stock, only 1 left!

0

25

Snapper 7014682

CLIP, Cable
(Superseded to 7014682YP)

$10.99

$

In Stock, only 3 left!

0

26

Snapper 7014719

LINK, Wire

$

$

Not available

27

Snapper 7014720

CLIP-Snap
(Superseded to 7014720YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7010935

WASHER, 3/4" I.D. Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7090820

NUT, 3/4-16 Hex Jam Lock
(Superseded to 7090820YP)

$5.99

$

Usually ships in 2-12 days

0

30

Snapper 7090188

WASHER, 5/16 SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0
