Ram Ultra 61 (966985401) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-12) WHEELS & TIRES Parts Diagram

61" Ram Ultra Zero-Turn Mower

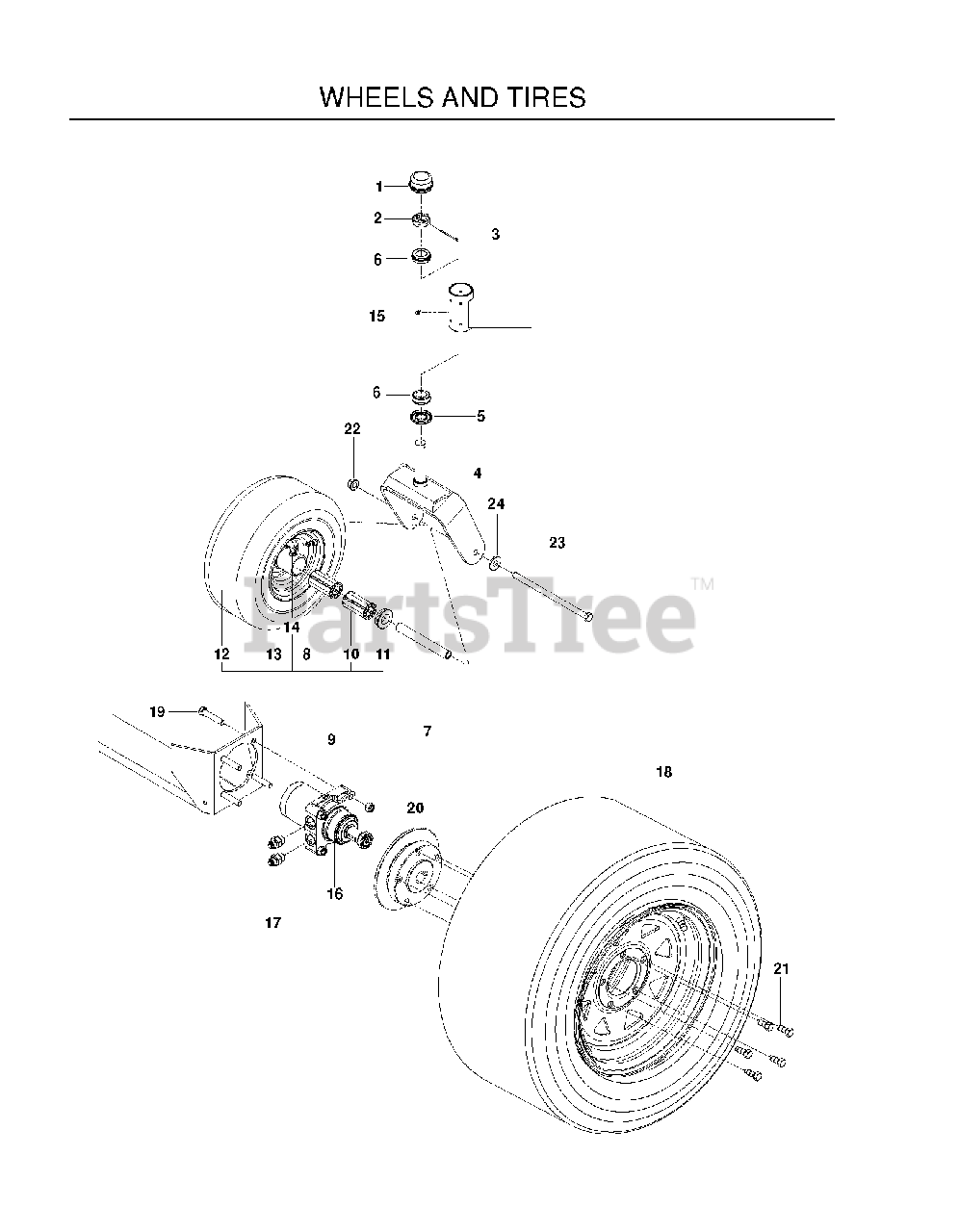

WHEELS & TIRES Parts Diagram

  • Title

1

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

2

Dixon 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

3

Dixon 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

4

Dixon 575329203

YOKE, CASTER, BLUE
(Superseded to 586921905)

$60.99

$

Usually ships in 3-10 days

0

5

Dixon 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, Qty 6

0

6

Dixon 539102851

SEAL

$7.49

$

In Stock, Qty 9

0

7

Dixon 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

8

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

9

Dixon 575348701

TIRE.ASSEM.CASTER.13X6.5-6.SIL
(Superseded to 581199501)

$194.99

$

In Stock, only 1 left!

0

10

Dixon 539105307

ROLLER BEARING-CAGED 3 1/4'

$9.49

$

In Stock, Qty 17

0

11

Dixon 539102484

BEARING RETAINER

$3.99

$

In Stock, Qty 20+

0

12

Dixon 575622201

TIRE.13X6.50-6.4.PLY

$84.99

$

Usually ships in 3-10 days

0

13

Dixon 575622101

WHEEL.6X4.50

$84.99

$

Usually ships in 3-10 days

0

14

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

15

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539114523

WHEEL MOTOR, TJ

$

$

Not available

17

Dixon 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 3 left!

0

18

Dixon 532140556

WHEEL.R.TS.23X10.5-12.C.MS

$278.99

$

Usually ships in 3-10 days

0

19

Dixon 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

20

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

21

Dixon 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

24

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available
