RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Electrical Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

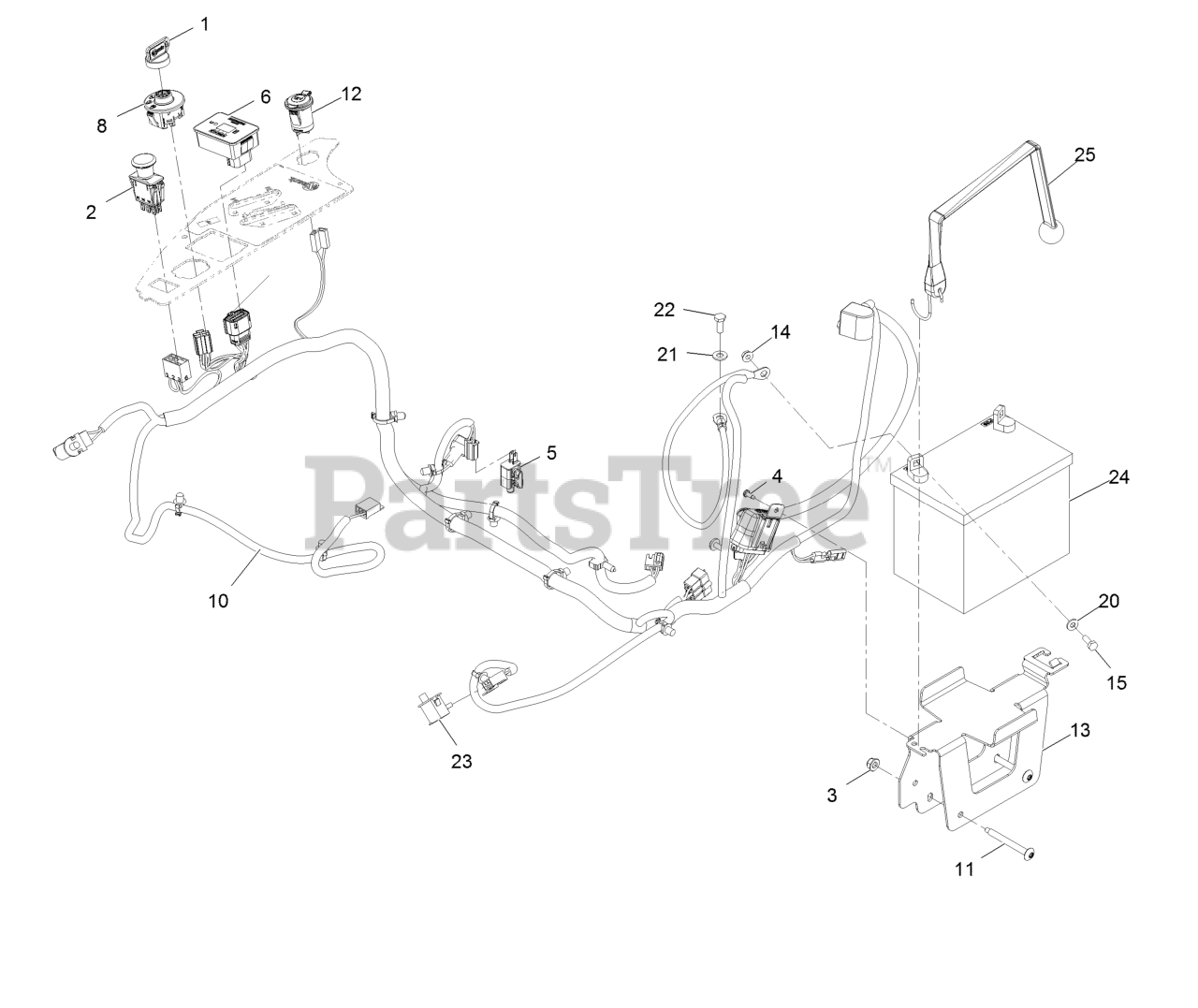

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-603511

Key-Ignition

$2.49

$

In Stock, Qty 20+

0

1

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-5221

Switch-PTO

$55.99

$

In Stock, Qty 20+

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 105-6849

Screw-Tph #10-24 X 1/2 Tf

$1.49

$

In Stock, Qty 7

0

5

Exmark 110-6765

Switch

$13.99

$

In Stock, Qty 20+

0

6

Exmark 116-5609

Module ASM

$149.99

$

In Stock, only 3 left!

0

8

Exmark 117-2221

Switch-Ignition
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

10

Exmark 126-5803

Harness-Wire

$441.99

$

Usually ships in 3-6 days

0

11

Exmark 126-6267

Screw-Truss HD 5/16-18 X 2 3/4 Torx Plus

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 126-6499

Port-Power, 12V

$15.99

$

In Stock, only 2 left!

0

13

Exmark 126-6725-03

Tray-Battery

$27.99

$

Usually ships in 3-6 days

0

14

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

21

Exmark 33094-00

Washer

$0.99

$

In Stock, only 2 left!

0

22

Exmark 33114-020

Screw-HH M8-1.25 X 20Mm

$0.99

$

In Stock, Qty 13

0

23

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 20+

0

24

Battery (300 CCA, Wet)

Battery (300 CCA, Wet)

$

$

Not available

25

Exmark 126-7627

Strap-Bungee

$13.99

$

Usually ships in 3-6 days

0
