RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Motion Control Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

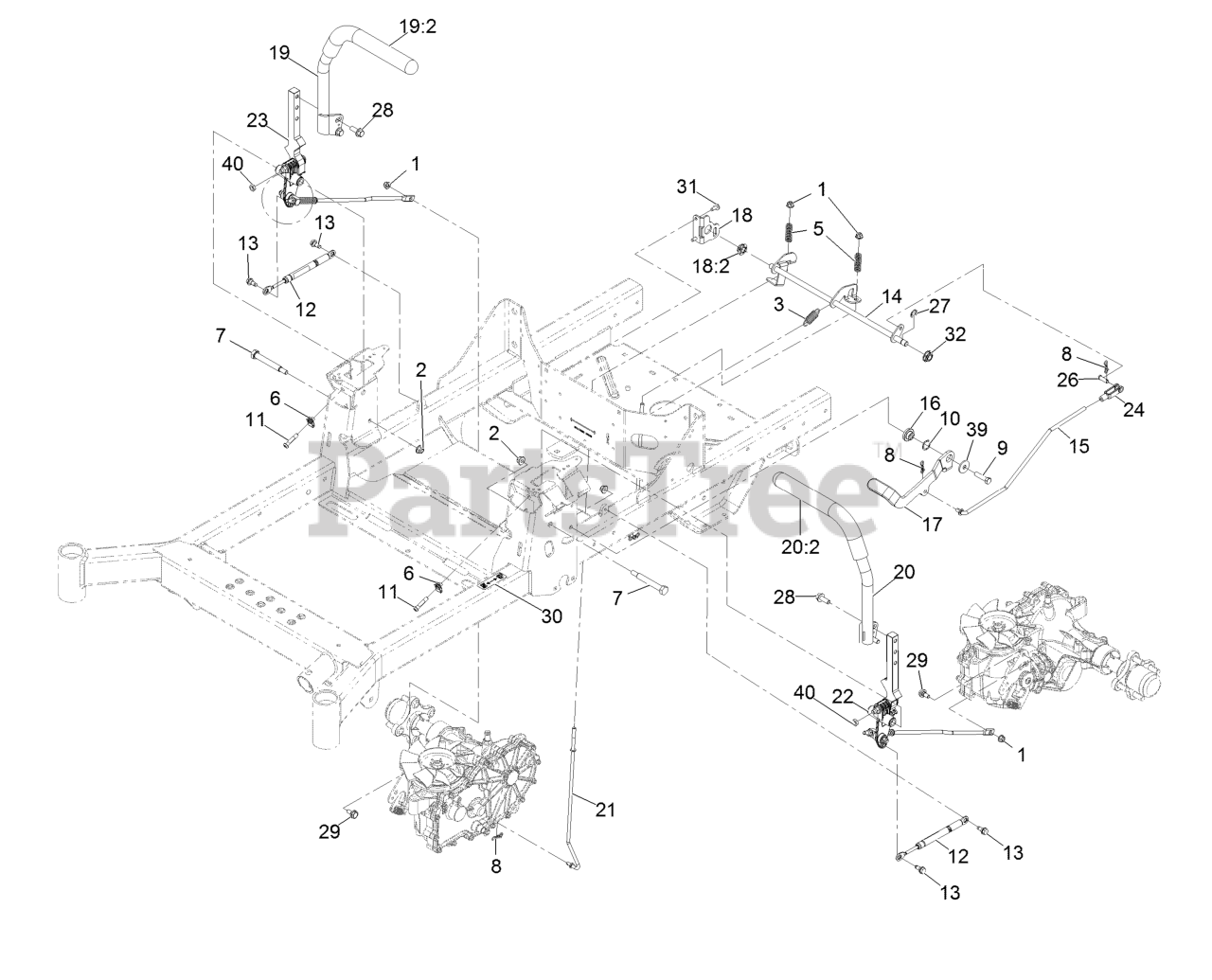

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 107-1045

Spring-Extension

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 109-7694

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

6

Exmark 112-3306

Nut

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 115-5099

Bolt-Pivot

$5.49

$

In Stock, only 3 left!

0

8

Exmark 119-1415

Pin-Cotter, Locking

$1.49

$

In Stock, Qty 18

0

9

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

10

Exmark 119-4164

Washer-Wave

$3.49

$

In Stock, only 3 left!

0

11

Exmark 126-4299

Screw-HSBH

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 126-4322

Damper

$

$

Not available

13

Exmark 126-4424

Screw-Shoulder

$2.99

$

In Stock, Qty 11

0

14

Exmark 126-5813

Shaft-Brake

$39.99

$

Usually ships in 3-6 days

0

15

Exmark 126-5819

Linkage-Brake, Upper

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 126-5989

Pivot-Flange

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 126-9490

Lever-Brake (With Grip)

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6456

Bracket-Brake

$12.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-5820

Bearing-Spherical

$7.99

$

In Stock, only 2 left!

0

19

Exmark 126-9191

RH Control Handle ASM

$67.99

$

Usually ships in 3-6 days

0

19:2

Exmark 126-7359

Grip

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 126-9192

LH Control Handle ASM

$67.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-7359

Grip

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7217

Linkage-Brake, Lower

$13.99

$

Usually ships in 3-6 days

0

22

LH Motion Control ASM

LH Motion Control ASM

$

$

Not available

23

RH Motion Control ASM

RH Motion Control ASM

$

$

Not available

24

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, Qty 5

0

26

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, Qty 16

0

27

Exmark 32120-47

Ring-Retaining

$1.49

$

In Stock, Qty 15

0

28

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 17

0

29

Exmark 37-8771

Screw-Shoulder 5/16-18 X 5/8

$5.49

$

Usually ships in 3-6 days

0

30

Exmark 115-9625

Decal-Brake, Parking

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 126-6266

Screw-1/4-20 X .65 Torx Plus

$1.49

$

In Stock, only 2 left!

0

32

Exmark 126-5820

Bearing-Spherical

$7.99

$

In Stock, only 2 left!

0

39

Exmark 2844

Washer

$2.99

$

In Stock, Qty 20+

0

40

Exmark 3218-3

Nut-Jam 3/8-16

$0.99

$

In Stock, Qty 20+

0
