RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) RH Transaxle Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

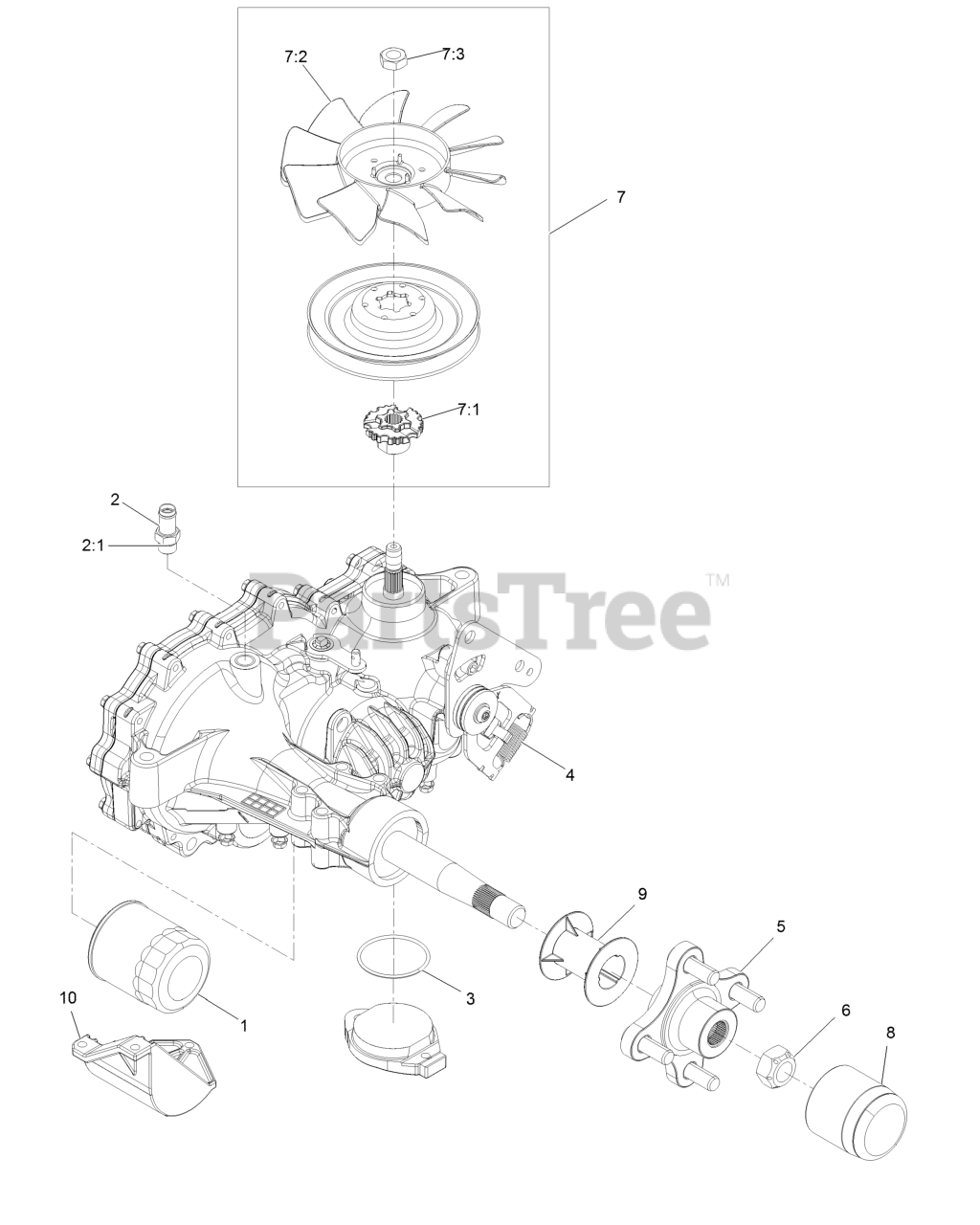

RH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3321

Element-Oil Filter, HYD

$31.99

$

In Stock, Qty 20+

0

2

Exmark 109-3278

Adapter-Straight

$120.99

$

Usually ships in 3-6 days

0

2:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

3

Exmark 109-3540

O Ring-Seal

$6.49

$

In Stock, Qty 20+

0

4

Exmark 109-5592

Spring-Extension

$17.99

$

In Stock, only 4 left!

0

5

Exmark 116-3872

Hub-Offset

$68.99

$

In Stock, only 2 left!

0

6

Exmark 109-3536

Nut-Hub

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 126-8904

Fan And Pulley Kit

$98.99

$

Usually ships in 3-6 days

0

7:1

Exmark 126-8905

Hub-Fan

$15.99

$

Usually ships in 3-6 days

0

7:2

Exmark 126-0226

Fan

$47.99

$

In Stock, only 1 left!

0

7:3

Exmark 116-9714

Nut-HJ

$5.49

$

In Stock, only 4 left!

0

8

Exmark 116-6214

Cap-Axle, Long

$17.99

$

Usually ships in 3-6 days

0

9

Exmark 116-6213

Tube-Axle

$12.99

$

In Stock, only 1 left!

0

10

Exmark 120-7981

Guard-Filter, RH

$33.99

$

Usually ships in 3-6 days

0

11

Exmark 121-3243

Seal Kit

$182.99

$

Usually ships in 3-6 days

0
