RB-500 (215-340-190) - White Outdoor Roto Boss Tiller (1995) Tiller Illustration (Part 1) Parts Diagram

Roto Boss Tiller

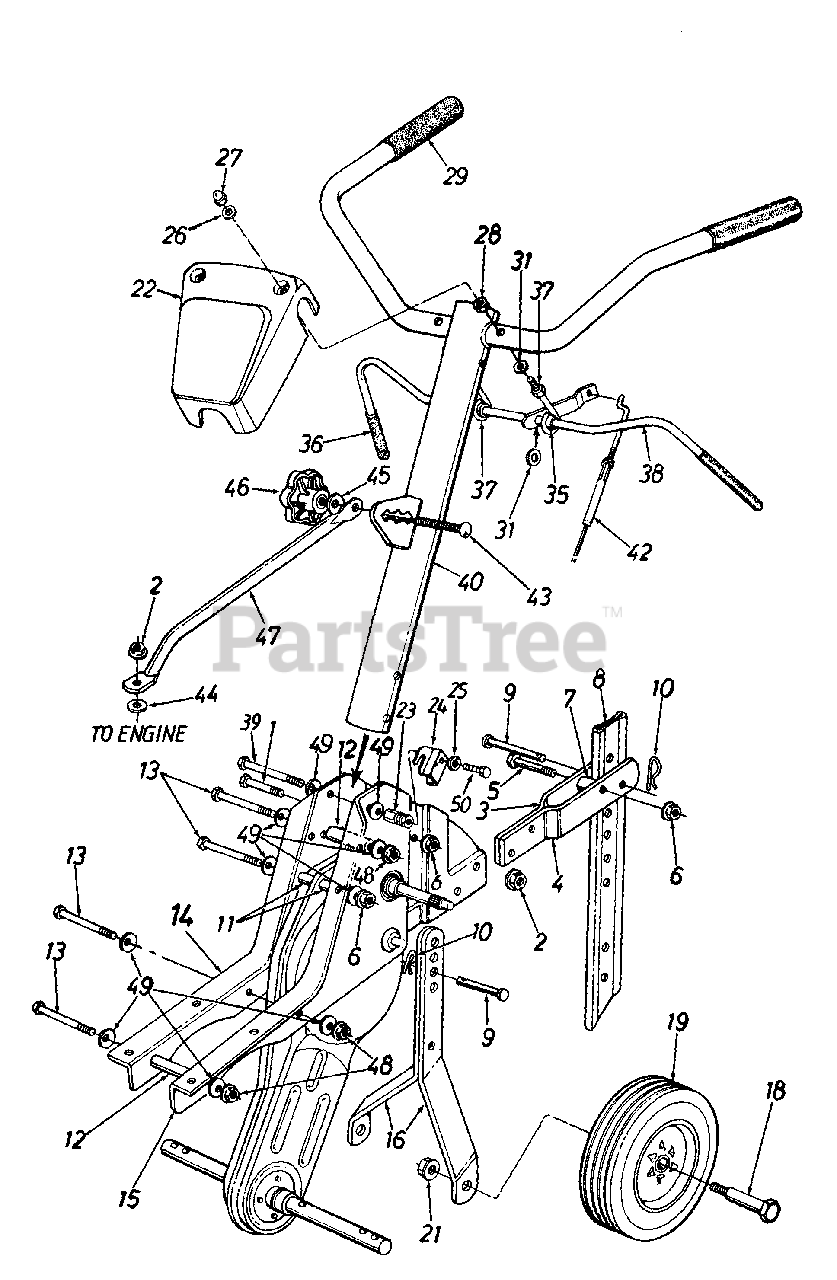

Tiller Illustration (Part 1) Parts Diagram

  • Title

1

White Outdoor 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

2

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 786-0004

Tail Piece Brkt. (R.H.)
(Superseded to 786-0004-0637)

Variations

White Outdoor 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

4

White Outdoor 786-0003

Tail Piece Brkt. (L.H.)
(Superseded to 786-0003-0637)

Variations

White Outdoor 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$23.99

$

In Stock, only 1 left!

0

5

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 12

0

6

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 750-0890

Spacer .32" I.D. x .75" O.D.

$6.99

$

In Stock, Qty 7

0

8

White Outdoor 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

White Outdoor 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

9

White Outdoor 711-0599

Clevis Pin .375" I.D. x 1.75" Lg.
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

10

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 750-0470

Spacer .326" I.D. x .47" O.D.

$6.99

$

Usually ships in 3-6 days

0

12

White Outdoor 750-0885

Spacer .322" I.D. x .44" O.D.
(Superseded to 750-0885A)

$11.99

$

Usually ships in 3-6 days

0

13

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 786-0028

Frame - R.H.

Variations

White Outdoor 786-0028-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 786-0029

Frame - L.H.

Variations

White Outdoor 786-0029-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 686-0025

Wheel Hanger Brkt. Ass'y.

Variations

White Outdoor 686-0025-0637

No Longer Available BRACKET-WHEEL HANG - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 738-0213

Shld. Bolt .498" Dia. x 1.45" Lg.

$7.99

$

In Stock, Qty 5

0

19

White Outdoor 734-1781

Wheel Ass'y.

$32.99

$

In Stock, Qty 10

0

?20

White Outdoor 710-3094

Hex Bolt 3/8-16 x 1" Lg. (Gr. 8)
(Superseded to 710-3094A)

$4.49

$

In Stock, only 2 left!

0

21

White Outdoor 712-3005

Hex Flange L-Nut 3/8-16 Thd. (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 686-0076

Handle Cover

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 686-0076-0637

No Longer Available HANDLE ASSY-W/O TH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 686-0076-0638

No Longer Available HANDLE ASSY-W/O TH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

23

White Outdoor 711-1036

Spec. Hex Nut
(Superseded to 711-1036A)

Note: Code: N notates a new part (not previously existing).

$17.99

$

Usually ships in 3-6 days

0

24

White Outdoor 786-0129

Cable Guide Brkt.
(Superseded to 786-0129-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-3020

Fl - Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

27

White Outdoor 712-0392

Hex L-Stop Nut 1/4-28 Thd.

$6.99

$

In Stock, only 2 left!

0

28

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

29

White Outdoor 720-0268

Grip - Handle

$

$

Not available

31

White Outdoor 736-0140

Fl - Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 8

0

35

White Outdoor 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 720-0269

Grip - Clutch

$4.99

$

In Stock, only 4 left!

0

37

White Outdoor 747-0815

Clutch Handle Eye Bolt

$15.99

$

Usually ships in 3-6 days

0

38

White Outdoor 686-0008

Clutch Handle Ass'y.

Variations

White Outdoor 686-0008-0637

No Longer Available HANDLE ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

40

White Outdoor 649-0001

Longhorn Handle Ass'y.
(Superseded to 649-0022A)

Variations

White Outdoor 649-0001-0480

HANDLE ASSY-LONGHORN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 649-0001-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 649-0001-0498

HANDLE ASSY-LONGHORN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 649-0001-0637

No Longer Available HANDLE ASSY- - POWDER BLACK (0637)

$

$

Not available

White Outdoor 649-0001-0638

HANDLE ASSY-LONGHORN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0001-0662

HANDLE ASSY-LONGHORN - OYSTER GRAY (0662)

$

$

Not available

$

$

42

White Outdoor 746-0918

Clutch Control Cable
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-1236

Carr. Bolt 5/16-18 x 1" Lg. (Special)

$6.99

$

In Stock, only 4 left!

0

44

White Outdoor 736-0123

Fl - Wash. .344" I.D. x 1.12" O.D.
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0242

Bell - Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

47

White Outdoor 749-0915

Engine Tubing Brace

Variations

White Outdoor 749-0915-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-0915-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 749-0915-0662

Engine Tubing Brace - OYSTER GRAY (0662)

$

$

Not available

$

$

48

White Outdoor 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0242

Bell - Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0
