RB-560 (215-406-190) - White Outdoor Roto Boss Tiller (1985) Wheel & Drive Assembly Parts Diagram

Roto Boss Tiller

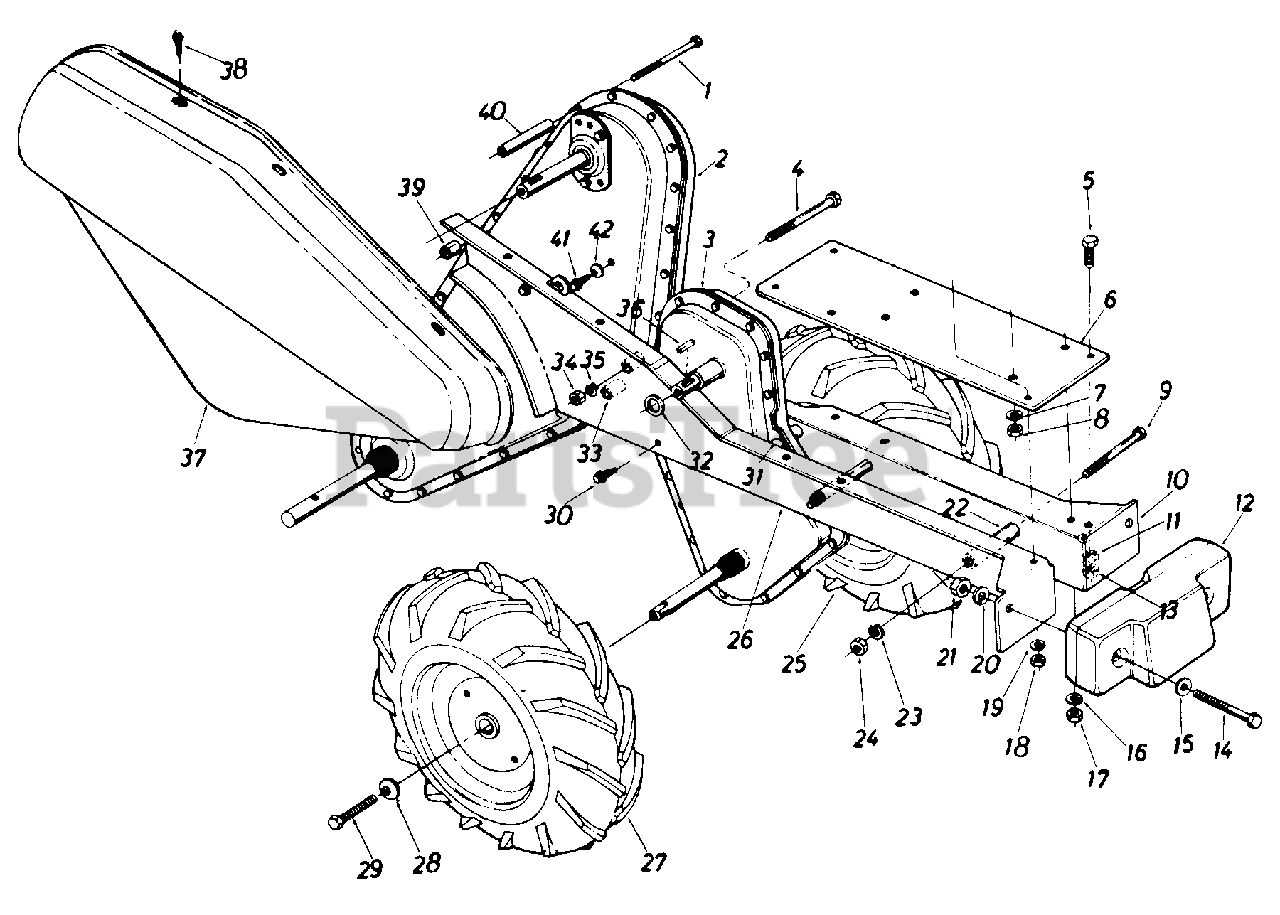

Wheel & Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3.00" Lg.*

$6.49

$

In Stock, Qty 5

0

2

White Outdoor 784-0106

Chai n Case Ass'y. Comp. Tines

$

$

Not available

3

784-0104

Chain Case Ass'y. Comp. Wheels

$

$

Not available

4

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3.00" Lg.*

$6.49

$

In Stock, Qty 5

0

5

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 14973

Engine Mounting Plate

Variations

White Outdoor 14973-0637

No Longer Available PLATE-MTG-ENG - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 710-0830

Hex Bolt 3/8-24 x 3.00" Lg.*

$

$

Not available

10

White Outdoor 14975

Frame Rail L.H.

Variations

White Outdoor 14975-0637

No Longer Available RAIL-FRAME-LH - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 723-0340

Weight 35#

$

$

Not available

13

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

14

White Outdoor 710-0786

Hex Bolt 1/2-13 x 4.00" Lg.*

$16.99

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 18

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

Usually ships in 3-6 days

0

22

750-0579

Spacer .38" I.D. x .62" O.D. x 2. 1 8 " Lg.

$

$

Not available

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

25

734-1255

Wheel Ass'y. Comp. 12.5 x 3.5 L. H .

$

$

Not available

26

White Outdoor 14974

Frame Rail R.H.

Variations

White Outdoor 14974-0637

No Longer Available RAIL-FRAME-RH - POWDER BLACK (0637)

$

$

Not available

$

$

27

734-1254

Wheel Ass'y Comp. 12.5 x 3.5 R. H .

$

$

Not available

28

White Outdoor 736-0242

Belleville Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.*

$4.49

$

Usually ships in 3-6 days

0

30

White Outdoor 710-0600

Hex Wash. Hd. SF-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

31

White Outdoor 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.00" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

33

White Outdoor 750-0470

Spacer.326" I.D. x .47" O.D. x .96 " Lg. .

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

35

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

37

White Outdoor 14980

Belt Cover

$

$

Not available

38

White Outdoor 710-0599

Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

40

750-0219

Spacer.375" I.D. x .500" O.D. x 2.00" Lg.

$

$

Not available

41

White Outdoor 710-0599

Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 10

0
