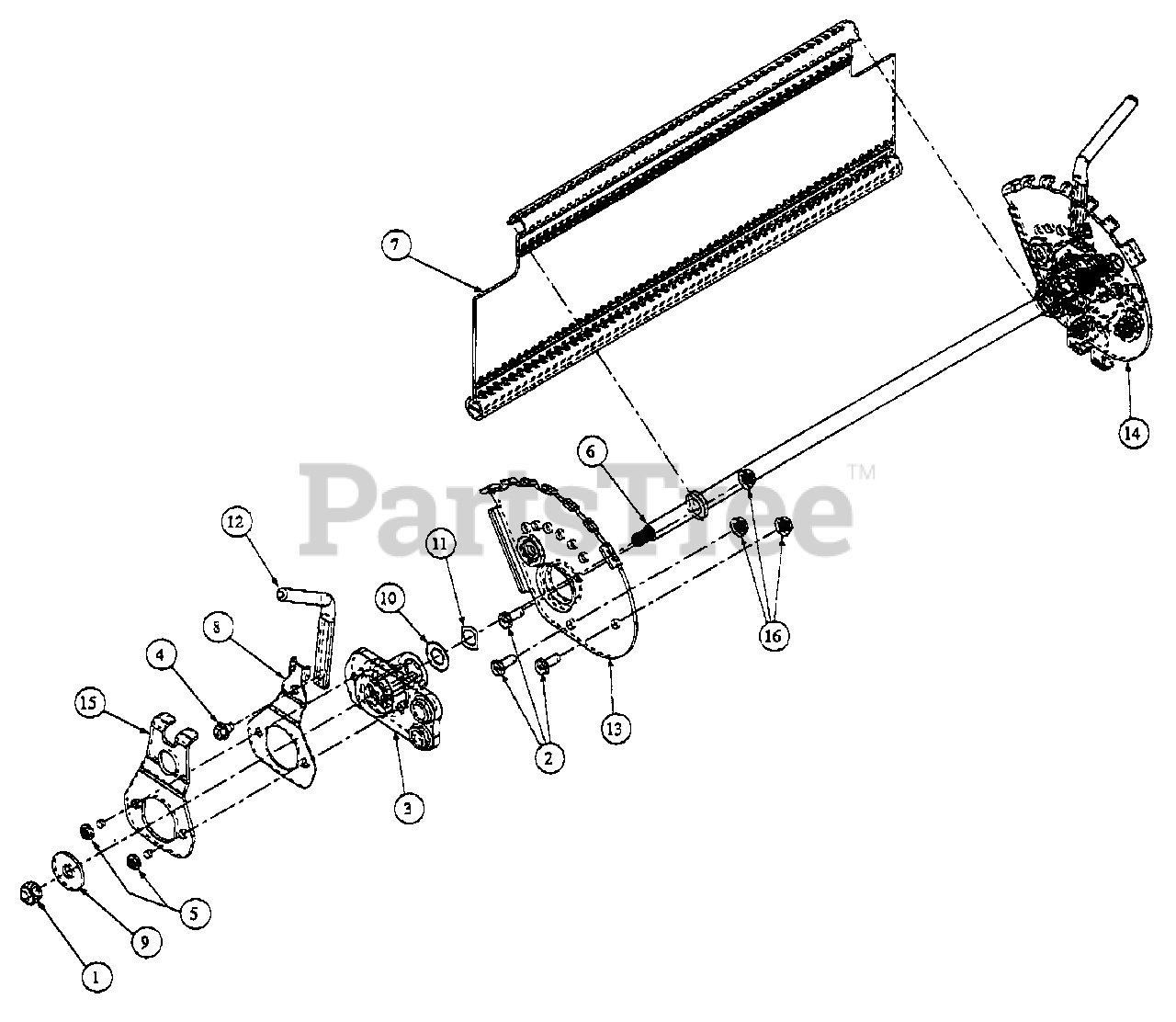

RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Rear Axle Parts Diagram

Walk-Behind Mower

Rear Axle Parts Diagram

  • Title

1

Cub Cadet 00012173

L-Nut, 3/8-16, NYL INS. GR A.
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000338

HHCS, 1/4-20, .620, GR5, Standard
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 01000861

Pivot Wheel Bracket Assembly, 2 POS

$91.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01000925

Screw, TT, 1/4-20, 0.375, Hex Index Washer
(Superseded to 710-0653)

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 01000865

Screw, TT, 1/4-20, 0.625, PANTRXI
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01002828

Rear Axle

$

$

Not available

7

Cub Cadet 01000870

Trail Shield

$

$

Not available

8

Cub Cadet 01000871

Spring Plate Height Adjuster
(Superseded to 732-0864)

$

$

Not available

9

Cub Cadet 01000872

Flat Washer, .411 x 1.25 x .100
(Superseded to 936-0133)

$

$

Not available

10

Cub Cadet 01000873

Flat Washer, .536 ID X .781 OD X .01
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 01000874

Wave Washer, .536 ID X .930 OD X .05
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 16

0

12

Cub Cadet 01002829

Height Adjustment Handle

$

$

Not available

13

Cub Cadet 01002830

Height Adjustment Bracket, Right Rear

$

$

Not available

14

Cub Cadet 01002831

Height Adjustment Bracket, Left Rear

$

$

Not available

15

Cub Cadet 01002832

Spring Lever Support Bracket

$

$

Not available

16

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange, Lock, Group F
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0
