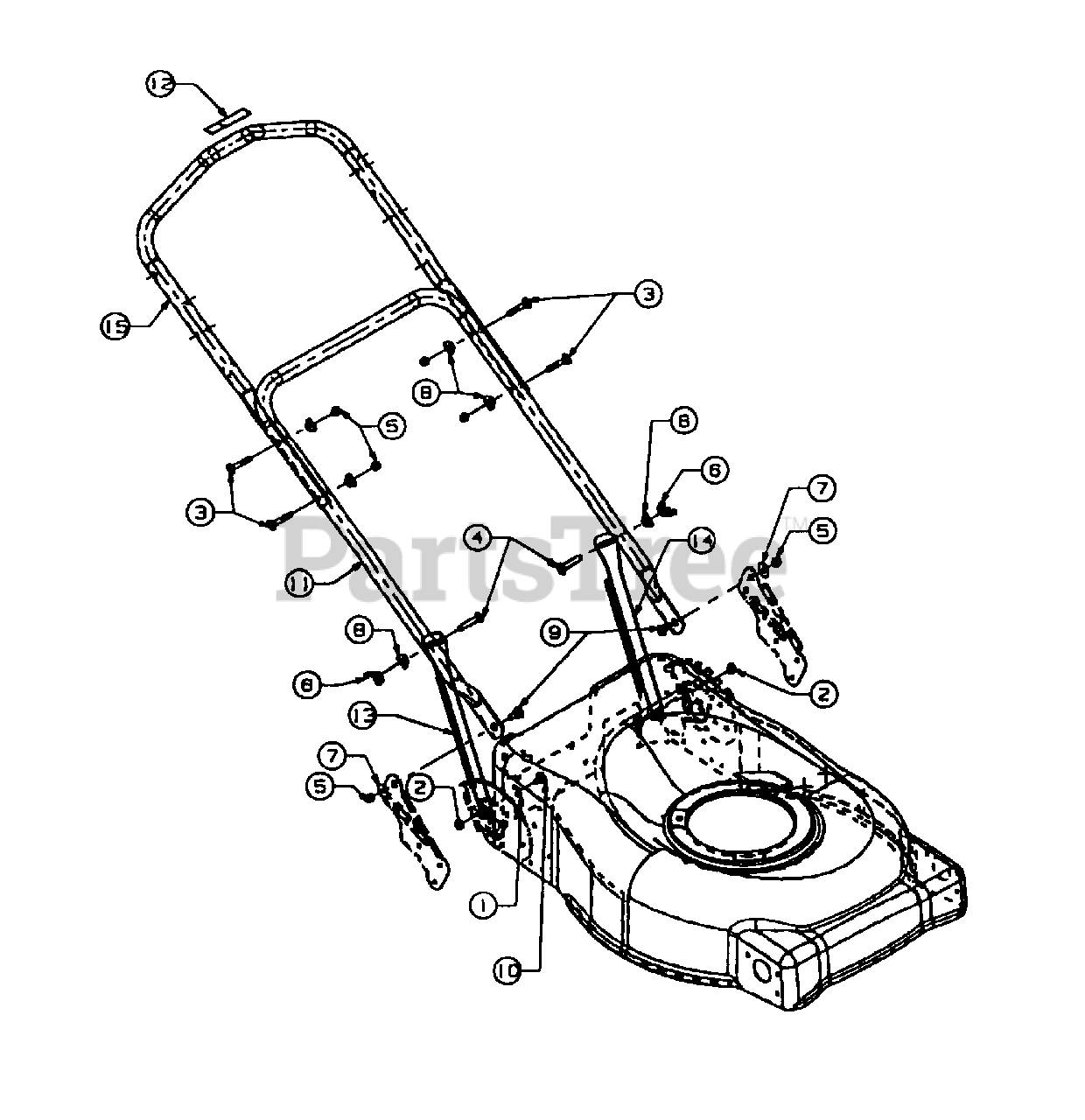

RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower 3 Position Handle Parts Diagram

Walk-Behind Mower

3 Position Handle Parts Diagram

  • Title

1

Cub Cadet 00012577

WASH: THRUST

$5.49

$

In Stock, Qty 12

0

2

Cub Cadet 00022547

NUT:LOCK:5/16-18 X 1.75

$

$

Not available

3

Cub Cadet 01000955

BOLT:CARR:5/16-18 X 1.75
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000956

BOLT:CARR:5/16-18 X 1.75
(Superseded to 710-0458)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 01000957

NUT: HX:5/16-18: LOCK
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000958

WING NUT

$

$

Not available

7

Cub Cadet 01000960

WASH:BELL: .325 X .930 X .045
(Superseded to 936-0425)

$

$

Not available

8

Cub Cadet 01000961

WASHER,SADDLE:320 ID X .93 OD
(Superseded to 936-0451)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000962

SCR:SHOULDER: .435 X .350: 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 8

0

10

Cub Cadet 01000963

BOLT:SHLD: .437 X 1.82 LG.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01002805

HANDLE:LOWER

$

$

Not available

12

Cub Cadet 01001582

DECAL: CAUTION

$

$

Not available

13

Cub Cadet 01001673

STRUT:HNDL:3 POSITION:RH

$

$

Not available

14

Cub Cadet 01001675

STRUT:HNDL:3 POSITION:LH

$

$

Not available

15

Cub Cadet 01003203

HANDLE:UPPER

$

$

Not available
