RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower Control Self Propelled With Shift Lever Parts Diagram

Walk-Behind Mower

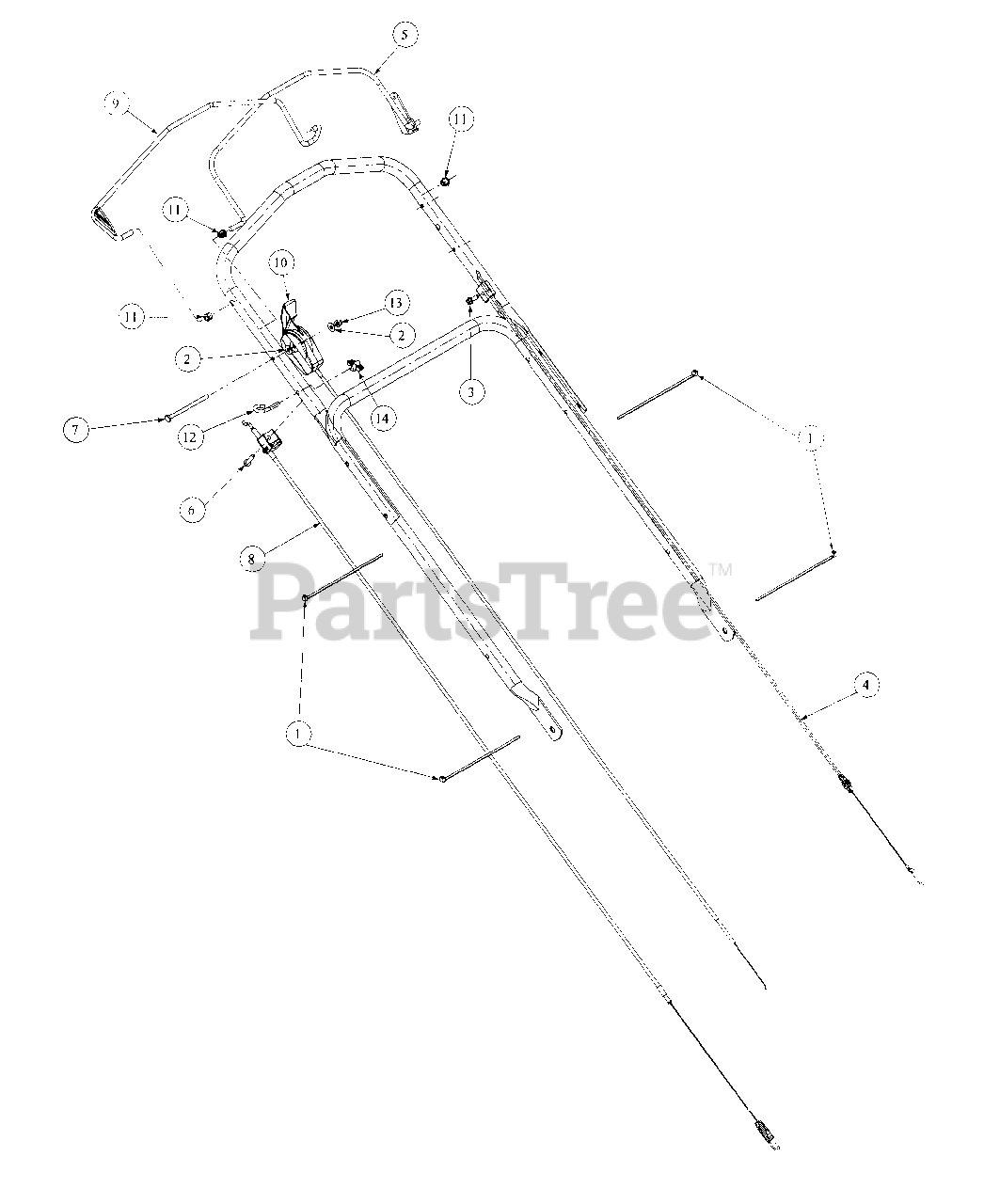

Control Self Propelled With Shift Lever Parts Diagram

  • Title

1

Cub Cadet 00012470

Cable Tie, 3/16 X .05 X 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

2

Cub Cadet 01000600

Flatwasher 1/4 X .630 X .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 01000629

Screw, TT, 1/4-20, 0.750, Hex Index Washer
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000859

Control Cable 43" Long
(Superseded to 01000859P)

$

$

Not available

5

Cub Cadet 01002842

Control Lever
(Superseded to 01000860-0637)

$

$

Not available

6

Cub Cadet 01000897

Screw, TT, 1/4-20, 1.000
(Superseded to 710-0788)

$7.49

$

In Stock, only 4 left!

0

7

Cub Cadet 01000857

HHCS, 1/4-20
(Superseded to 710-0641)

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 01000903

Cable, Clutch Speed Adjuster
(Superseded to 01000903P)

$

$

Not available

9

Cub Cadet 01002859

Clutch Bail, Transmission, Commutator

$

$

Not available

10

Cub Cadet 01000908

Control Throttle, W/Cable, Briggs

$

$

Not available

11

Cub Cadet 01002527

Bushing, .3125 Dia Snap

$

$

Not available

12

Cub Cadet 01002924

Bolt, Eye, 1/4-20, Bent Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 13

0

13

Cub Cadet 01000446

Hex Nut; 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01002925

Handle Knob, 1/4-20
(Superseded to 720-0279)

$4.49

$

In Stock, Qty 20+

0
