RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower Push Control Parts Diagram

Walk-Behind Mower

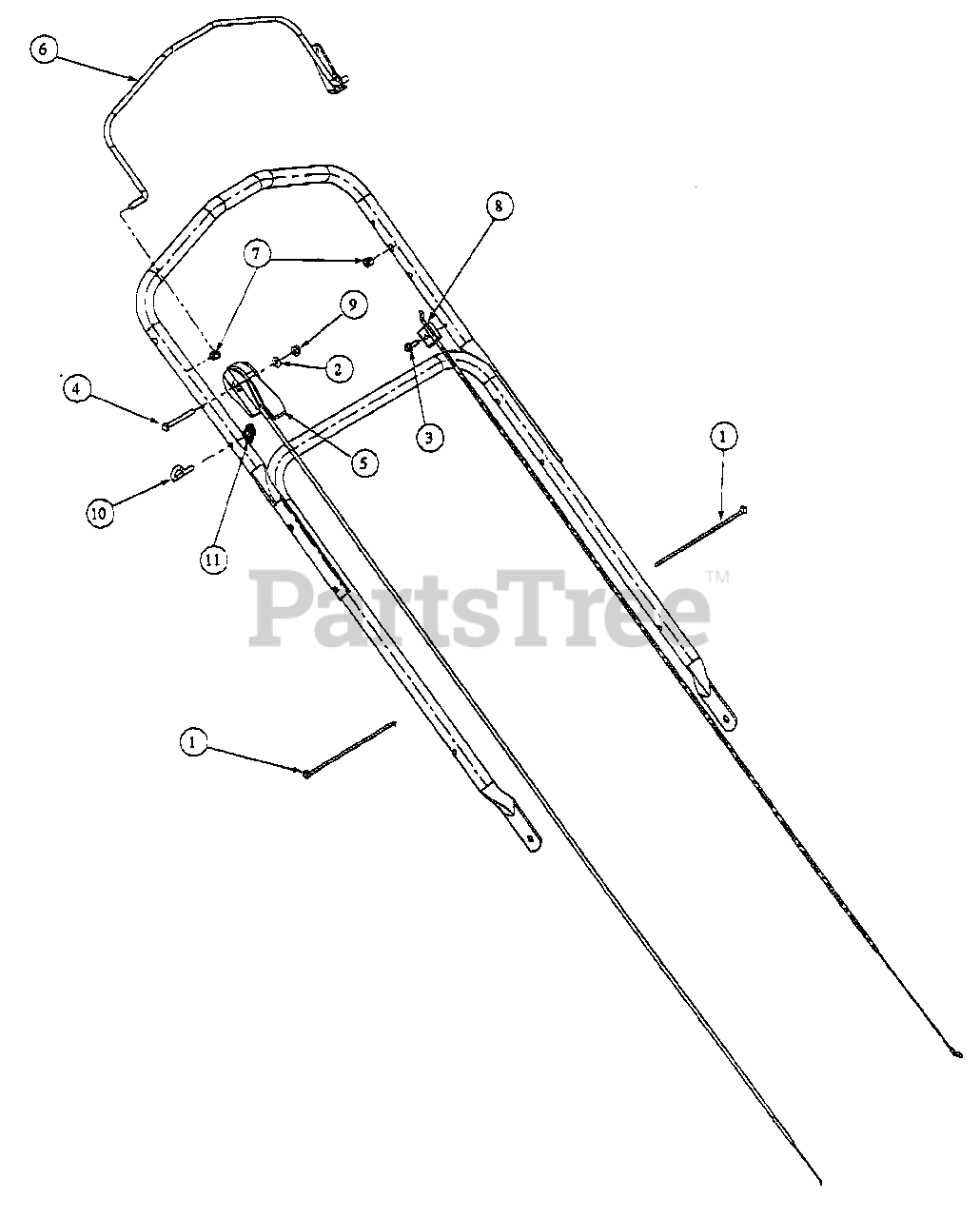

Push Control Parts Diagram

  • Title

1

Cub Cadet 00012470

Cable Tie, 3/16 X .05 X 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

2

Cub Cadet 01000800

Flatwasher 1/4 X .630 X .0515

$

$

Currently unavailable

3

Cub Cadet 01000629

Screw, TT, 1/4-20, 0.750, Hex Index Washer
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000857

HHCS, 1/4-20, 2.25, GR5, Standard
(Superseded to 710-0641)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 01001287

Control Throttle, W/Cable, KAW

$

$

Not available

6

Cub Cadet 01002842

Control Lever, W/O BBC
(Superseded to 01000860-0637)

$

$

Not available

7

Cub Cadet 01002527

Bushing, .3125 Diameter. Snap

$

$

Not available

8

Cub Cadet 01002681

Control Cable, 45.75" Long, KAW

$

$

Not available

9

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange, Lock, Group F
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01002924

Eye Bolt, 1/4-20, Bent Rope GDE
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 13

0

11

Cub Cadet 01003131

Handle Knob, ERS 1/4-20
(Superseded to 720-0279)

$4.49

$

In Stock, Qty 20+

0
