RB 72 (59A40035727) - Cub Cadet Yanmar Tractor 72" Rear Blade Frame RB72 Version 1 Parts Diagram

Tractor 72" Rear Blade

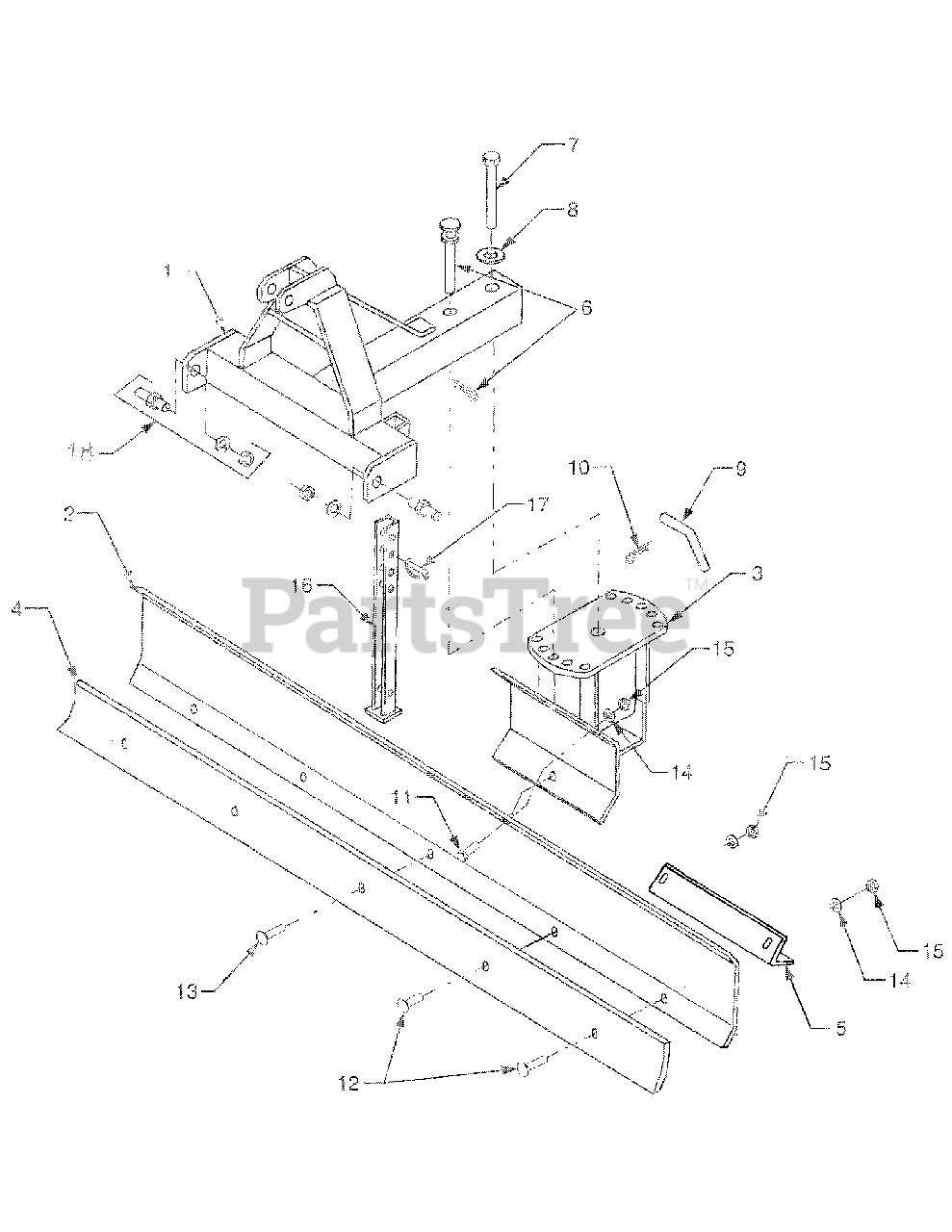

Frame RB72 Version 1 Parts Diagram

  • Title

1

Cub Cadet YS-006-9500

A FRAME

$

$

Not available

2

Cub Cadet YS-026-9501

MOLD BOARD 6'

$

$

Not available

3

Cub Cadet YS-006-9502

SWIVEL
(Superseded to BF-006-9502)

$

$

Not available

4

Cub Cadet YS-036-9019

SCRAPER BLADE 6'

$

$

Not available

5

Cub Cadet YS-006-9400

SKID SHOE (OPTIONAL)
(Superseded to BF-006-9400)

$

$

Not available

6

Cub Cadet YS-006-9616

SWIVEL PIN W/COTTER

$

$

Not available

7

Cub Cadet YS-006-9505

1" X 6" HEX BOLT PLATED
(Superseded to BF-006-9505)

$

$

Not available

8

Cub Cadet YS-006-9513

1" ID FLAT WASHER

$

$

Not available

9

Cub Cadet YS-503-656B

BENT PIN
(Superseded to BF-503-656B)

$

$

Not available

10

Cub Cadet YS-503-657B

COTTER PIN
(Superseded to BF-503-657B)

$

$

Not available

11

Cub Cadet YS-006-9609

5/8"-11 X 2" HEX BOLT PLATED
(Superseded to BF-006-9609)

$

$

Not available

12

Cub Cadet YS-503-651B

5/8"-11 X 1.5" PLOW BOLT
(Superseded to BF-503-651B)

$

$

Not available

13

Cub Cadet YS-503-650B

5/8" X 2" GR5 PLOW BOLT ZINC
(Superseded to BF-503-650B)

$

$

Not available

14

Cub Cadet YS-502-866B

5/8" LOCKWASHER
(Superseded to BF-502-866B)

$4.49

$

In Stock, Qty 15

0

15

Cub Cadet YS-502-865B

5/8" HEX NUT
(Superseded to BF-502-865B)

$4.99

$

In Stock, Qty 13

0

16

Cub Cadet YS-006-9608

FOOT STAND
(Superseded to BF-006-9608)

$

$

Not available

17

Cub Cadet YS-501-684B

LOCK PIN
(Superseded to BF-501-684B)

$

$

Not available

18

Cub Cadet YS-943-008B

7/8" HITCH PIN W/LW & NUT
(Superseded to BF-943-008B)

$

$

Not available
