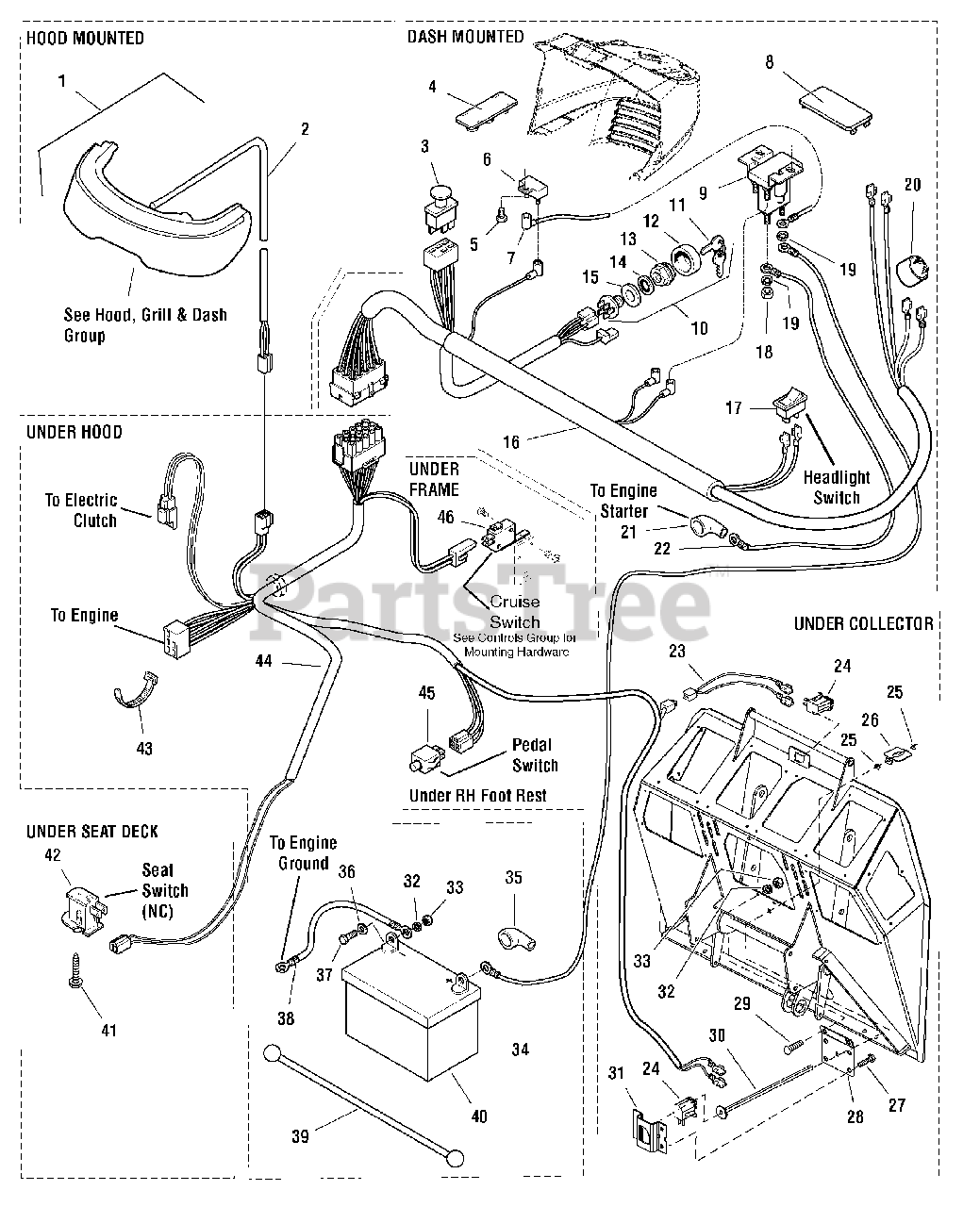

RD 2040 (2690114) - Snapper LT300 Series 40" Lawn Tractor, 20hp Electrical Group Parts Diagram

LT300 Series 40" Lawn Tractor, 20hp

Electrical Group Parts Diagram

  • Title

1

Snapper 1721810

HEADLIGHT ASSEMBLY
(Superseded to 1721810SM)

$164.99

$

Usually ships in 2-12 days

0

2

Snapper 1722669

HARNESS, Headlight Assembly
(Superseded to 1722669SM)

$40.99

$

Usually ships in 2-12 days

0

3

Snapper 1722887

SWITCH, PTO, Push/Pull
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 15

0

4

Snapper 1722611

PLUG, Hole
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 1921959

CAPSCREW, Hex Head, 1/4 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 1665238

BREAKER, Circuit 12Volt, 20Amps
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 8

0

7

Snapper 1665237

WIRE, 12GA, 5.9" Long, Red
(Superseded to 1665237SM)

$11.99

$

In Stock, only 1 left!

0

8

Snapper 1723648

PLUG, Dash, Early Models
(Superseded to 1725698SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 1725698

PLUG, Dash, Later Models
(Superseded to 1725698SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 1722739

SOLENOID
(Superseded to 1722739SM)

$31.99

$

Usually ships in 2-12 days

0

10

Snapper 1686734

SWITCH ASMY, Ignition, 6 Pin, (Includes Ref. Nos. 11, 12, 13
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 18

0

11

Snapper 1717163

KEY, Ignition
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 12

0

12

Snapper 1717550

COVER
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 8

0

13

Snapper 1717549

NUT, Hex Flange, 5/8-32
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 1960547

LOCKWASHER, Internal Tooth, 5/8
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

15

Snapper 2101025

WASHER
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 1722715

HARNESS, Wiring Upper, Early Models
(Superseded to 1722715SM)

$62.99

$

Usually ships in 2-12 days

0

16

Snapper 1725682

HARNESS, Wiring Upper, Later Models
(Superseded to 1725682SM)

$70.99

$

Usually ships in 2-12 days

0

17

Snapper 1716951

SWITCH, Headlights , 2 Terminal
(Superseded to 1716951SM)

$21.99

$

In Stock, only 2 left!

0

18

Snapper 1920263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 2920426

LOCKWASHER, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 1720117

BUZZER, Pulse, Bag Full
(Superseded to 1720117SM)

$38.99

$

Usually ships in 2-12 days

0

21

Snapper 1713535

BOOT, Insulator
(Superseded to 1713535SM)

$5.99

$

Usually ships in 2-12 days

0

22

Snapper 1721830

CABLE, # 6, 25" Long, Red
(Superseded to 1721830SM)

$19.99

$

In Stock, only 1 left!

0

23

Snapper 1723954

HARNESS, Rear
(Superseded to 1723954SM)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 1704379

SWITCH, Push Button, Black
(Superseded to 1732004)

$8.99

$

In Stock, Qty 6

0

25

Snapper 1723613

O- RING
(Superseded to 1723613SM)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 1723612

PAD, Acuator
(Superseded to 1723612SM)

$10.99

$

Usually ships in 2-12 days

0

27

Snapper 1925003

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1724548

BRACKET, Switch
(Superseded to 1724548SM)

$9.49

$

Usually ships in 2-12 days

0

29

Snapper 1960252

CARRIAGE BOLT1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

30

Snapper 1725981

ROD & WASHER ASSEMBLY, Hopper
(Superseded to 1725981SM)

$54.99

$

Usually ships in 2-12 days

0

31

Snapper 1720118

BRACKET, Hopper Switch
(Superseded to 1720118SM)

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 2916964

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

33

Snapper 2916622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

34

Snapper 1603618

CABLE, # 6, 9" Long
(Superseded to 1603618SM)

$11.99

$

In Stock, only 1 left!

0

35

Snapper 1677296

BOOT, Insulator Battery Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

36

Snapper 2921319

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

37

Snapper 2923341

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

38

Snapper 1713163

CABLE, # 6, 26" Long
(Superseded to 1713163SM)

$24.99

$

Usually ships in 2-12 days

0

39

Snapper 1722009

STRAP, Battery
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

40

Snapper 1685215

BATTERY, 12Volt
(Superseded to 1685215SM)

$

$

Not available

41

Snapper 1960536

SCREW, Hex Washer Head Plastite, 1/4-20
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 1716368

SWITCH, Operator Present, NC, Grey
(Superseded to 5100540)

$32.99

$

Usually ships in 2-12 days

0

43

Snapper 1701011

TIE, Wire
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

44

Snapper 1724904

HARNESS, Wiring Lower
(Superseded to 1724904SM)

$84.99

$

Usually ships in 2-12 days

0

45

Snapper 1723507

SWITCH, Push Button Foot, Black
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

46

Snapper 1717050

SWITCH, Cruise, Grey
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 10

0
