RD 2140 (2690774) - Snapper LT300 Series 40" Lawn Tractor, 21hp Steering Group - Power Steering Parts Diagram

LT300 Series 40" Lawn Tractor, 21hp

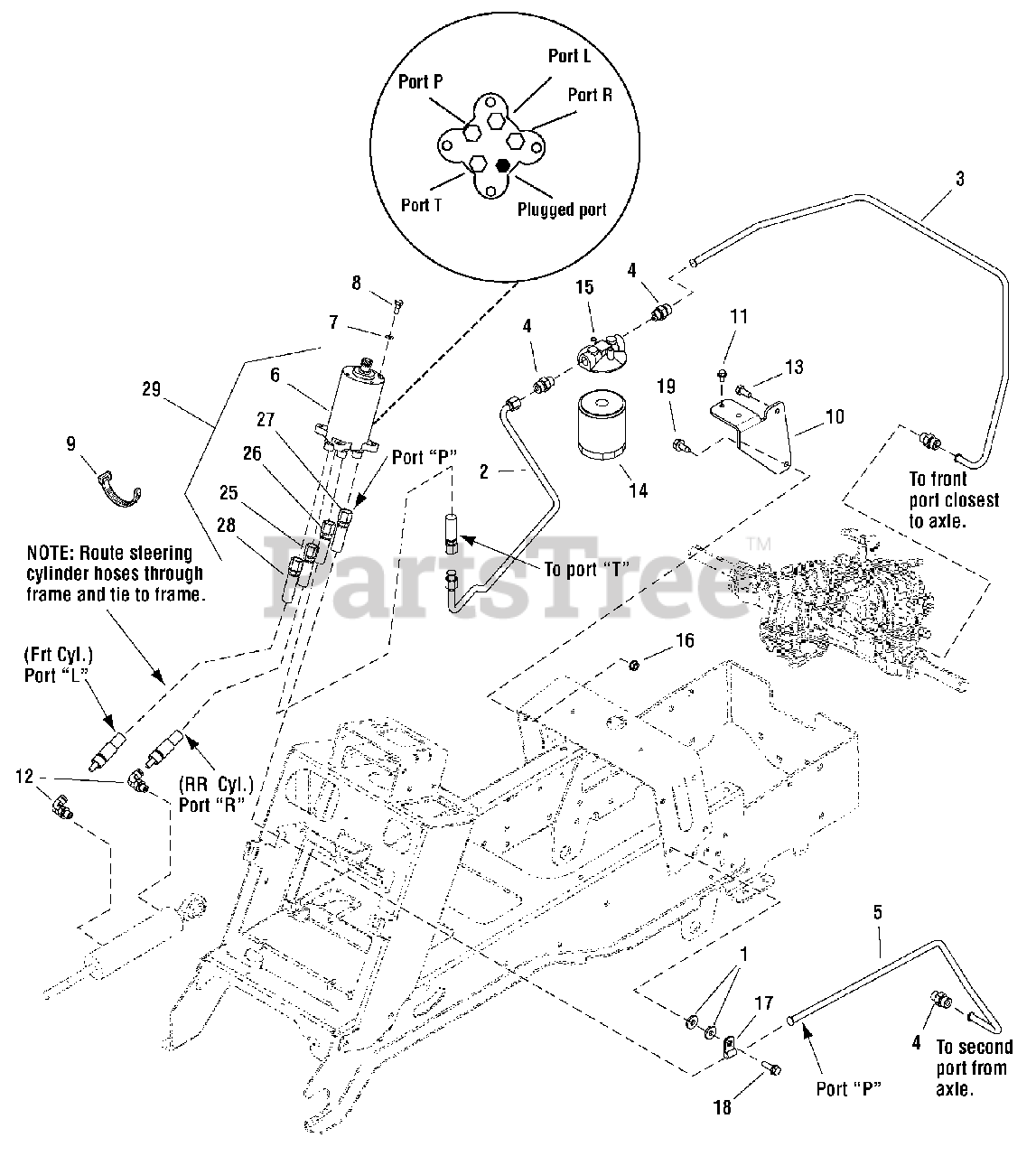

Steering Group - Power Steering Parts Diagram

  • Title

1

Snapper 1960141

WASHER, Flat, 5/16
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 1735083

TUBE, Filter
(Superseded to 1735083SM)

Note: (To Steer Unit - Port "T")

$61.99

$

Usually ships in 2-12 days

0

3

Snapper 1735080

TUBE, Hydro
(Superseded to 1735080SM)

Note: (Hydro-Filter)

$64.99

$

Usually ships in 2-12 days

0

4

Snapper 1722123

FITTING, Hydraulic, Straight
(Superseded to 1722123SM)

$9.99

$

Usually ships in 2-12 days

0

5

Snapper 1735142

TUBE, Hydro
(Superseded to 1735142SM)

Note: (Trans Out Port "P")

$61.99

$

Usually ships in 2-12 days

0

6

Snapper 1733894

POWER STEERING UNIT
(Superseded to 1733894SM)

$1014.99

$

Usually ships in 2-12 days

0

7

Snapper 1916964

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 2860444

CAPSCREW, Hex, M06, 1.0 x 16mm
(Superseded to 2860444SM)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 2825094

TIE, Wire
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 1735445A

SUPPORT, Filter
(Superseded to 1735445ASM)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 1931646

SCREW, Whiz-Lock, 1/4-20 x .50
(Superseded to 1931646SM)

$4.49

$

In Stock, only 4 left!

0

12

Snapper 1733230

FITTING, Perma-Push
(Superseded to 1733230SM)

$103.99

$

Usually ships in 2-12 days

0

13

Snapper 1921332

CAPSCREW, Hex, 5/16-18 x .75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

14

Snapper 1719168

FILTER, Oil
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 16

0

15

Snapper 1719169

MANIFOLD, Oil Filter
(Superseded to 1719169SM)

$56.99

$

Usually ships in 2-12 days

0

16

Snapper 1960636

NUT, KEPS-Lock, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 1708007

CLIP
(Superseded to 1708007SM)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper 1960373

SCREW, Taptite, 5/16-18 x 1.0
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 1664847

SCREW, Taptite, 5/16-18 x .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 1733893

HOSE ASSEMBLY, Hydraulic Rubber, 27"
(Superseded to 1733893SM)

Note: Port R

$84.99

$

Usually ships in 2-12 days

0

26

Snapper 1733791

HOSE ASSEMBLY, Hydraulic Rubber, 18"
(Superseded to 1733791SM)

Note: Port T

$

$

Not available

27

Snapper 1733780

HOSE ASSEMBLY, Hydraulic Rubber, 26"
(Superseded to 1733780SM)

Note: Port P

$113.99

$

Usually ships in 2-12 days

0

28

Snapper 1733595

HOSE ASSEMBLY, Hydraulic Rubber, 31"
(Superseded to 1733595SM)

Note: Port L

$86.99

$

Usually ships in 2-12 days

0

29

Snapper 1733894

POWER STEERING ASSEMBLY, 32 CC, 4 Ports
(Superseded to 1733894SM)

Note: (Includes Ref. Nos. 6, 25, 26, 27 & 28)

$1014.99

$

Usually ships in 2-12 days

0
