RD 2140 (2690774) - Snapper LT300 Series 40" Lawn Tractor, 21hp Wheel & Tires Group Parts Diagram

LT300 Series 40" Lawn Tractor, 21hp

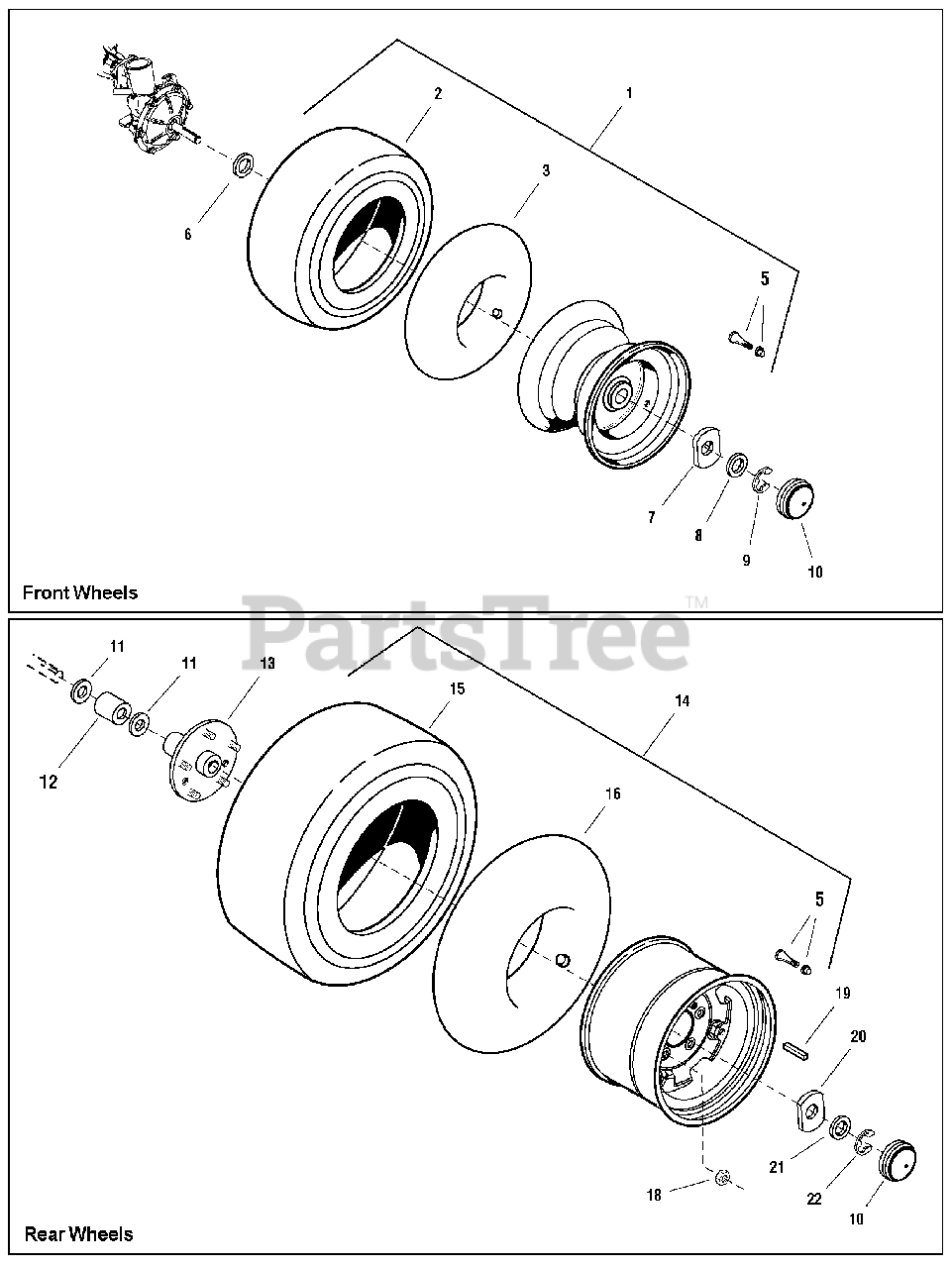

Wheel & Tires Group Parts Diagram

  • Title

1

Snapper 1735010

WHEEL & TIRE ASSEMBLY
(Superseded to 1735010SM)

Note: (Front)

$199.99

$

Usually ships in 2-12 days

0

2

Snapper 1735706

TIRE, 16 x 6-1/2-8
(Superseded to 1735010SM)

Note: (Front)

$199.99

$

Usually ships in 2-12 days

0

3

Snapper 2153038

TUBE, Tire
(Superseded to 2153038SM)

Note: (Front)

$35.99

$

In Stock, only 2 left!

0

5

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

6

Snapper 2860202

WASHER, Flat, 3/4 x 1-5/8 x 1/8
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 10

0

7

Snapper 1722717

WASHER, Flat
(Superseded to 1722717SM)

$7.99

$

In Stock, only 2 left!

0

8

Snapper 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 14

0

9

Snapper 2827794

RING
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 17

0

10

Snapper 1722676

CAP, Hub
(Superseded to 1722676SM)

$5.49

$

In Stock, Qty 11

0

11

Snapper 1960701

WASHER, 1 x 2-1/4 x 1/8
(Superseded to 1960701SM)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 1726089

SPACER
(Superseded to 1726089SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 1721400

PLATE & HUB
(Superseded to 1721400SM)

$101.99

$

Usually ships in 2-12 days

0

14

Snapper 1736032

WHEEL & TIRE ASSEMBLY

Note: (Rear)

$

$

Not available

15

Snapper 1736515

TIRE, 22 x 11-10

Note: (Rear)

$

$

Currently unavailable

16

Snapper 2157638

TUBE, Tire
(Superseded to 2157638SM)

Note: (Rear)

$86.99

$

In Stock, only 2 left!

0

18

Snapper 2177725

NUT, Hex, 7/16-20
(Superseded to 2177725SM)

$6.49

$

In Stock, only 3 left!

0

19

Snapper 2105337

KEY, Hi-Pro, 1/4 x 2
(Superseded to 2105337SM)

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 1722726

WASHER, Flat
(Superseded to 1722726SM)

$5.49

$

In Stock, only 2 left!

0

21

Snapper 1919394

WASHER, Flat
(Superseded to 703149)

$3.49

$

In Stock, Qty 13

0

22

Snapper 2834712

RING
(Superseded to 2834712SM)

$4.99

$

In Stock, Qty 10

0
