RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Kohler CV680-3011 Air Intake & Filtration Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

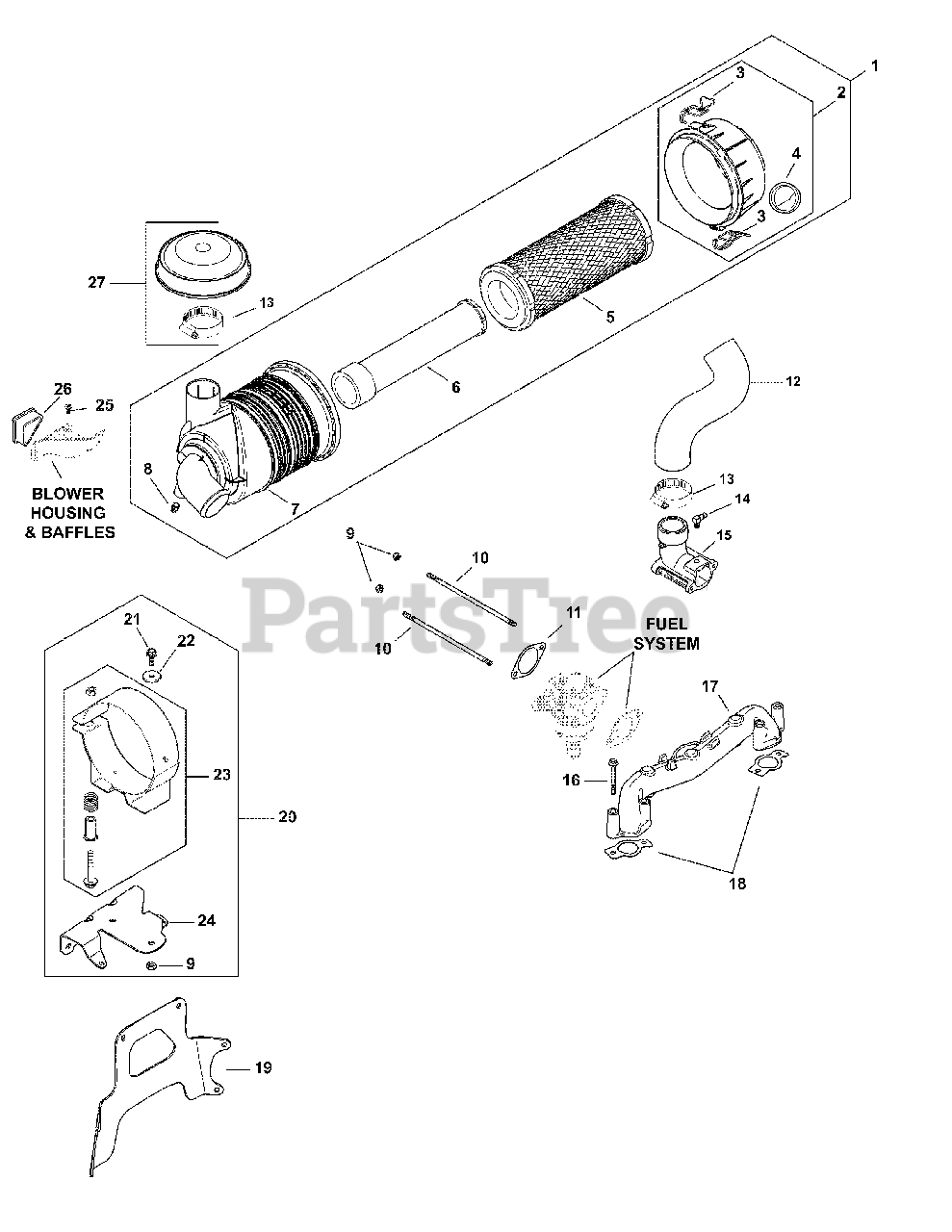

Kohler CV680-3011 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-048-17-S

Cleaner, Air-Canister

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-096-06-S

Cover Assembly, Air Cleaner

$83.99

$

In Stock, Qty 5

0

3

Cub Cadet KH-25-154-05-S

Clip
(Superseded to KH-62-154-07-S)

$12.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-24-462-07-S

Valve, Dust Ejector

$21.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-25-083-01-S

Element, Air Filter-Primary

$31.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-083-04-S

Element, Air Filter-Safety

$31.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-081-01-S

Housing, HD Air Cleaner

$140.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-139-20-S

Plug, Pipe

$8.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-647060

Nut, Lock M6 x 1.0

Note: NLA

$

$

Not available

10

Cub Cadet KH-24-072-10-S

Stud, M6x1.0x180

$16.99

$

In Stock, Qty 16

0

11

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

12

Cub Cadet KH-24-326-72-S

Hose, Air Cleaner

$19.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-237-21-S

Hose Clamp

$7.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-25-155-38-S

Connector, Hose

$16.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-054-16-S

Elbow, Air Cleaner

$140.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-086-84-S

Screw, Flg M6x1.0x55
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-164-06

Manifold, Intake

$

$

Not available

18

Cub Cadet KH-24-041-01

Gasket, Intake Manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

19

Cub Cadet KH-24-126-164-S

Bracket, Main Support
(Superseded to KH-24-126-171-S)

$63.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-126-166-S

Bracket, Air Cleaner Sub Assy

$

$

Not available

21

Cub Cadet KH-M-639016-S

Screw, Flg M6x1.0x16

$2.49

$

In Stock, only 3 left!

0

22

Cub Cadet KH-X-25-73-S

Washer, Flat 1/4"

$3.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-126-02-S

Bracket Assy, Air Cleaner
(Superseded to KH-24-126-191-S)

$60.99

$

In Stock, only 1 left!

0

24

Cub Cadet KH-24-126-165-S

Bracket, Air Cleaner Mounting
(Superseded to KH-24-126-184-S)

$92.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-25-086-91-S

Screw, Wsh Hd Tap #8-18x1/2"

$3.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-096-17-S

Cover, Blower Housing
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet KH-25-324-04-S

Hood, Air Cleaner

$49.99

$

In Stock, Qty 7

0

Cub Cadet KH-25-454-04-S

Tie

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0
