RECON 60 (53AH8ST5050) - Cub Cadet 60" Zero-Turn Mower, 25hp Kohler Kohler CV730-0055 Ignition & Electrical Parts Diagram

60" Zero-Turn Mower, 25hp Kohler

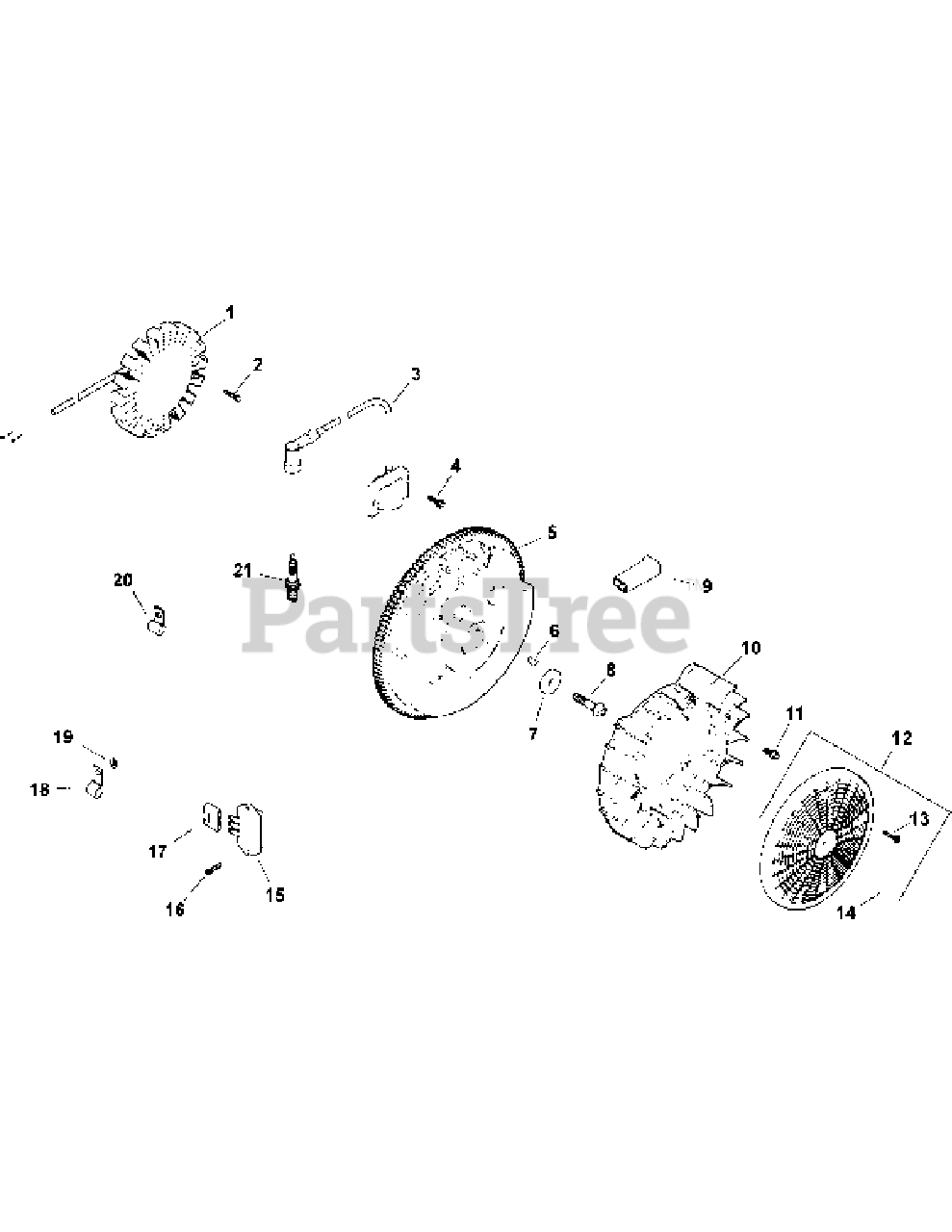

Kohler CV730-0055 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

KIT, 15 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-M-548025-S

SCREW, THD FRM M5X.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-45-S

KIT, MODULE IGNTN (CDI FIXED)
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

5

Cub Cadet KH-24-025-59-S

FLYWHEEL, ASSEMBLY (CV/CH670 & 730)

$

$

Not available

6

Cub Cadet KH-X-42-15

KEY, 3/16" X 5/8"

$

$

Not available

7

Cub Cadet KH-12-468-03

WASHER, FLAT 13/32"

$

$

Not available

8

Cub Cadet KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-277563

CONNECTOR (1 CONTACT)

$

$

Not available

10

Cub Cadet KH-24-157-12-S

FAN

$22.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-25-086-47

BOLT, SHOULDER

$

$

Not available

12

Cub Cadet KH-54-755-15

KIT, GRASS SCREEN

Note: (includes 13, 14)

$

$

Not available

13

Cub Cadet KH-25-086-117-S

SCREW, FLG SEMS M4X.7X25

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-113-18-S

DECAL, GRASS SCREEN

$

$

Not available

15

Cub Cadet KH-41-403-09

RECTIFIER-REGULATOR
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-25-086-157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-236602-S

CONNECTOR (3 CONTACT)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 11

0

18

Cub Cadet KH-235173

CLIP, CABLE

$

$

Not available

19

Cub Cadet KH-X-25-63

WASHER, FLAT 1/4"

$

$

Not available

20

Cub Cadet KH-210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

21

Cub Cadet 759-3336

PLUG, SPARK
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KH-24-126-137-S

BRACKET, GROUND STRAP
(Superseded to KH-24-518-12-S)

Note: (NOT ILLUSTRATED)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-176-112-S

HARNESS, WIRING
(Superseded to KH-24-176-150-S)

Note: (NOT ILLUSTRATED)

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41

LEAD, DUPLEX

Note: (NOT ILLUSTRATED)

$

$

Not available

Cub Cadet KH-25-454-07-S

TIE

Note: (NOT ILLUSTRATED)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

LEAD

Note: (NOT ILLUSTRATED)

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

TERMINAL

Note: (NOT ILLUSTRATED)

$5.49

$

Usually ships in 2-5 days

0
