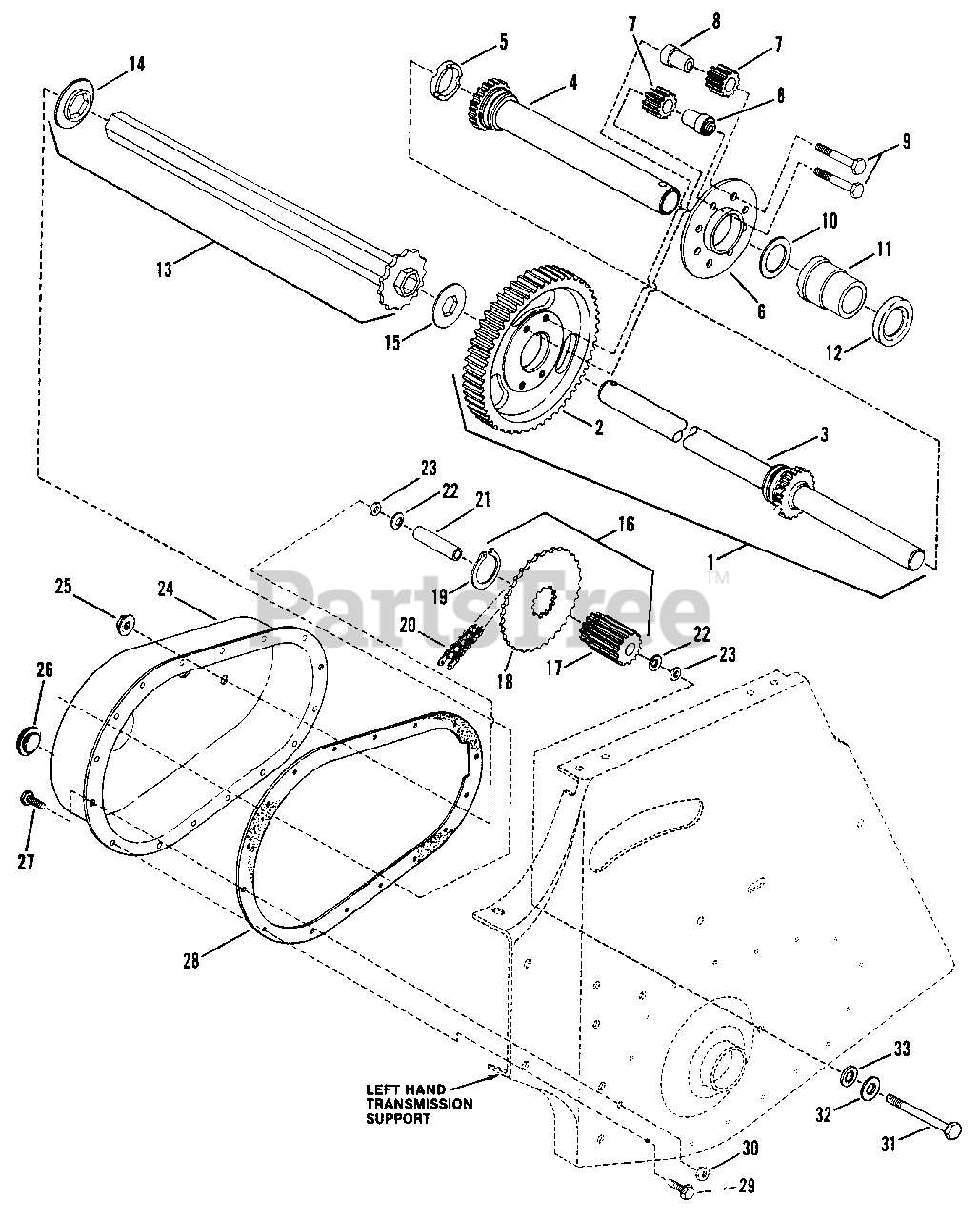

RLT 115D331B (80232) - Snapper 33" Lawn Tractor, 11.5hp Transmission Assembly Parts Diagram

33" Lawn Tractor, 11.5hp

Transmission Assembly Parts Diagram

  • Title

1

Snapper 7059742

ASSEMBLY, Differential

Note: (Includes items 2 thru 9)

$

$

Currently unavailable

2

Snapper 7021158

GEAR, 63 Teeth, 10 Pitch
(Superseded to 7021158YP)

$109.99

$

In Stock, only 3 left!

0

3

Snapper 7047935

AXLE, Long
(Superseded to 7047935YP)

Note: (Includes Gear)

$128.99

$

Usually ships in 2-12 days

0

4

Snapper 7057532

AXLE, Short

Note: (Includes Gear & 2 Internal Bearings)

$

$

Not available

5

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 11

0

6

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 7021127

PINION GEARS, Differential
(Superseded to 7021127YP)

$23.99

$

In Stock, Qty 12

0

8

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7012333

BOLT, 5/16-24x1-5/8" Hex, Special Lock Cap
(Superseded to 7012333YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

11

Snapper 7012296

BEARING, Axle, LH. Transmission Support
(Superseded to 7012296YP)

Note: (Listed with "L.H. Fender Assm'y". illustration and parts list.)

$14.99

$

In Stock, Qty 20+

0

12

Snapper 7011817

SEAL, OIL
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 19

0

13

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

Note: (Includes item 14)

$92.99

$

In Stock, only 1 left!

0

14

Snapper 7010988

WASHER,Hex Insert
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

16

Snapper 7050257

ASSEMBLY, Gear &. Sprocket
(Superseded to 7050257YP)

Note: (Includes items 17,18, & 19)

$78.99

$

Usually ships in 2-12 days

0

17

Snapper 7010964

GEAR, 11 Teeth, 10 Pitch
(Superseded to 7200128YP)

$14.99

$

In Stock, Qty 6

0

18

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$20.99

$

In Stock, only 2 left!

0

19

Snapper 7010965

RING, Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 10

0

20

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 14

0

21

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 3 left!

0

22

Snapper 7011782

WASHER, Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 19

0

23

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7036257

CASE, Transmission
(Superseded to 7036257YP)

$

$

Not available

25

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

27

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

Note: Was 18060

$24.99

$

In Stock, Qty 20+

0

29

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

31

Snapper 7011042

BOLT, Idler, 5/16-24 x 2-5/8"
(Superseded to 7011042YP)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7090188

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7090395

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 10
