Royal 19 S - Husqvarna Walk-Behind Mower (1989-01) Handle Assembly Parts Diagram

Walk-Behind Mower

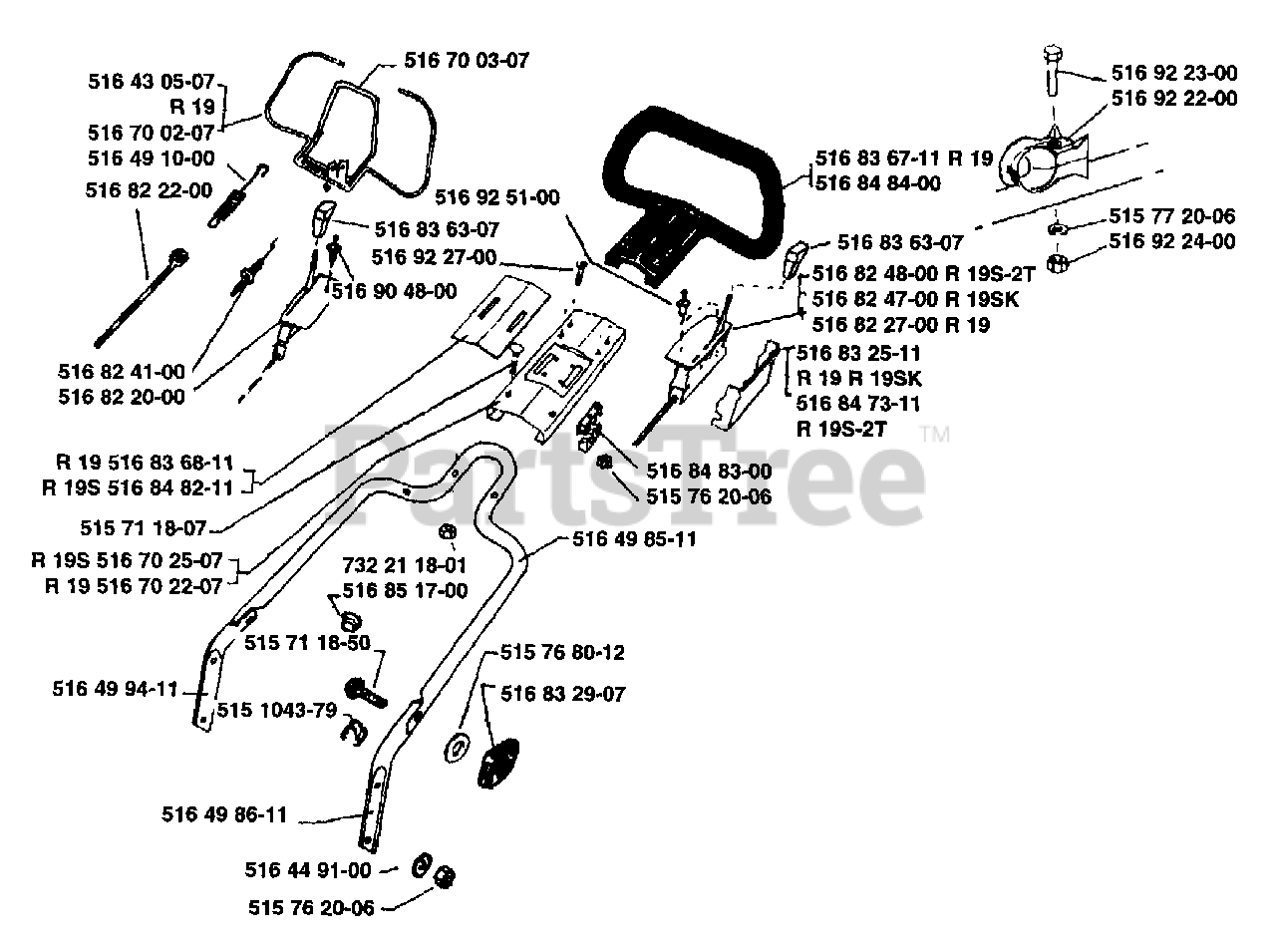

Handle Assembly Parts Diagram

  • Title

516430507

Husqvarna 516430507

CLUTCH BAR HSG.

$

$

Not available

516700207

Husqvarna 516700207

LOOP

$

$

Not available

516491000

Husqvarna 516491000

REPL BY 516 49 10-01
(Superseded to 516491001)

$

$

Not available

516822200

Husqvarna 516822200

COUPLING WIRE
(Superseded to 516822202)

$

$

Not available

516700307

Husqvarna 516700307

LOOP

$

$

Not available

516925100

Husqvarna 516925100

RIVET

$

$

Not available

516836307

Husqvarna 516836307

REPL BY 516 83 63-15
(Superseded to 516836315)

$

$

Not available

516922700

Husqvarna 516922700

REPL BY 516 92 27-01
(Superseded to 516922701)

$

$

Not available

516904800

Husqvarna 516904800

RIVET
(Superseded to 516925100)

$

$

Not available

516824100

Husqvarna 516824100

%BRAKE WIRE
(Superseded to 516825100)

$

$

Not available

516822000

Husqvarna 516822000

CONTROL
(Superseded to 517810047)

$

$

Not available

516836811

Husqvarna 516836811

PLASTIC PANEL
(Superseded to 516855797)

$

$

Not available

516848211

Husqvarna 516848211

PANEL

$

$

Not available

515711807

Husqvarna 515711807

$

$

Currently unavailable

516702507

Husqvarna 516702507

PANEL

$

$

Not available

516702207

Husqvarna 516702207

PANEL
(Superseded to 516702507)

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

516851700

Husqvarna 516851700

PLUG

$

$

Not available

515711850

Husqvarna 515711850

REPL BY 727 64 61-01
(Superseded to 727646101)

$8.99

$

In Stock, only 1 left!

0

516499411

Husqvarna 516499411

HANDLE
(Superseded to 517770297)

$

$

Not available

515104379

Husqvarna 515104379

CABLE CLIP

$

$

Not available

516498611

Husqvarna 516498611

HANDLE
(Superseded to 517770297)

$

$

Not available

516449100

Husqvarna 516449100

REPL BY 516 44 91-01
(Superseded to 516449101)

$

$

Not available

515762006

Husqvarna 515762006

REPL BY 732 21 16-01
(Superseded to 732211601)

$4.99

$

Usually ships in 3-10 days

0

515768012

Husqvarna 515768012

$

$

Currently unavailable

516832907

Husqvarna 516832907

REPL BY 516 85 70-07
(Superseded to 516857007)

$6.99

$

Usually ships in 3-10 days

0

516498511

Husqvarna 516498511

HANDLE
(Superseded to 516612011)

$

$

Not available

516847311

Husqvarna 516847311

COVER

$

$

Not available

516832511

Husqvarna 516832511

COVER
(Superseded to 516832500)

$

$

Not available

516822700

Husqvarna 516822700

THROTTLE CONTR.

$

$

Not available

516824700

Husqvarna 516824700

WIRE
(Superseded to 531005051)

$

$

Not available

516824800

Husqvarna 516824800

THROTTLE CONTROL

$

$

Not available

516848300

Husqvarna 516848300

CLAMP

$

$

Not available

515762006

Husqvarna 515762006

REPL BY 732 21 16-01
(Superseded to 732211601)

$4.99

$

Usually ships in 3-10 days

0

516836307

Husqvarna 516836307

REPL BY 516 83 63-15
(Superseded to 516836315)

$

$

Not available

516848400

Husqvarna 516848400

HANDLE NLA

$

$

Not available

516836711

Husqvarna 516836711

HANDLE
(Superseded to 516848411)

$

$

Not available

516922300

Husqvarna 516922300

REPL BY 516 92 23-01
(Superseded to 516922301)

$

$

Not available

516922200

Husqvarna 516922200

HOLDER

$

$

Not available

515772006

Husqvarna 515772006

$

$

Currently unavailable

516922400

Husqvarna 516922400

REPL BY 516 92 24-01
(Superseded to 516922401)

$

$

Not available
