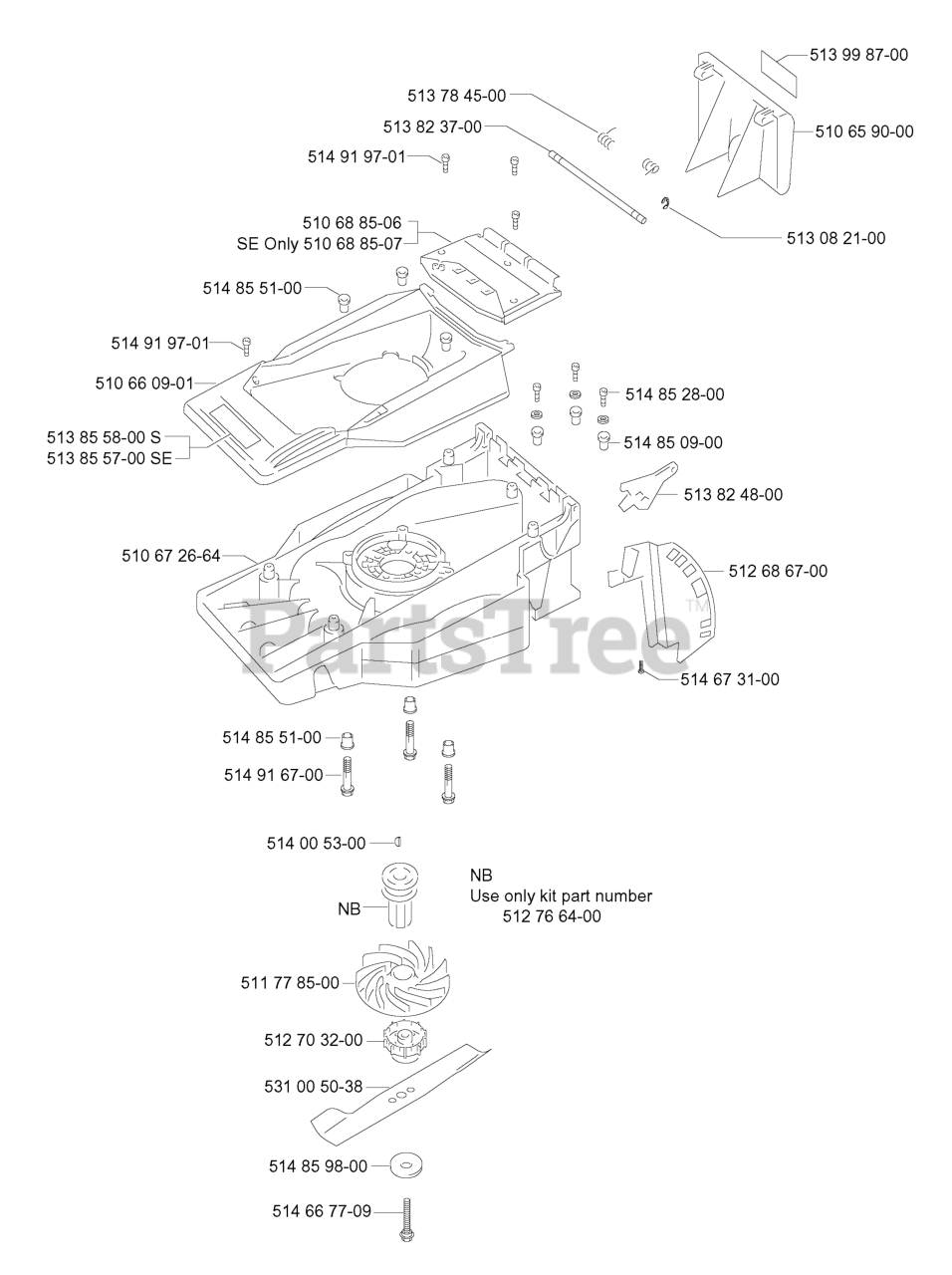

Royal 43 - Husqvarna Walk-Behind Mower (2002-04) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

513 08 21-00

Husqvarna 513082100

NEEDS DESCRIPTION

$

$

Currently unavailable

510 68 85-06

Husqvarna 510688506

NEEDS DESCRIPTION

$

$

Currently unavailable

514 91 97-01

Husqvarna 514919701

SCREW

$

$

Not available

512 68 67-00

Husqvarna 512686700

QUADANT

$

$

Not available

510 68 85-07

Husqvarna 510688507

NEEDS DESCRIPTION

Note: SE ONLY

$

$

Currently unavailable

514 00 53-00

Husqvarna 514005300

KEY

$6.99

$

Usually ships in 3-10 days

0

514 85 28-00

Husqvarna 514852800

RIVET

$

$

Not available

514 85 51-00

Husqvarna 514855100

WASHER

$

$

Not available

512 70 32-00

Husqvarna 512703200

HOLDER

$

$

Not available

513 82 48-00

Husqvarna 513824800

$

$

Currently unavailable

511 77 85-00

Husqvarna 511778500

FAN

$

$

Not available

513 85 58-00

Husqvarna 513855800

Note: S

$

$

Currently unavailable

513 99 87-00

Husqvarna 513998700

NEEDS DESCRIPTION

$

$

Not available

510 66 09-01

Husqvarna 510660901

DECK COVER

$

$

Not available

NB

Husqvarna NB

NEEDS DESCRIPTION

Note: NB USE ONLY KIT PART NUMBER 512 76 64-00

$

$

Currently unavailable

513 85 57-00

Husqvarna 513855700

Note: SE

$

$

Currently unavailable

513 82 37-00

Husqvarna 513823700

$

$

Currently unavailable

514 66 77-09

Husqvarna 514667709

SCREW

$

$

Not available

510 67 26-64

Husqvarna 510672664

$

$

Currently unavailable

514 67 31-00

Husqvarna 514673100

SCREW-ON/OFF SWITCH

$

$

Not available

514 85 09-00

Husqvarna 514850900

BUSHING

$

$

Not available

514 91 67-00

Husqvarna 514916700

BOLT

$

$

Not available

513 78 45-00

Husqvarna 513784500

SPRING

$

$

Not available

510 65 90-00

Husqvarna 510659000

COVER

$

$

Not available

531 00 50-38

Husqvarna 531005038

BLADE

$

$

Not available

514 85 98-00

Husqvarna 514859800

DISC SPRING

$

$

Not available
