Royal 48 - Husqvarna Walk-Behind Mower BLADE DRIVE & DEPTH CONTROL Parts Diagram

Walk-Behind Mower

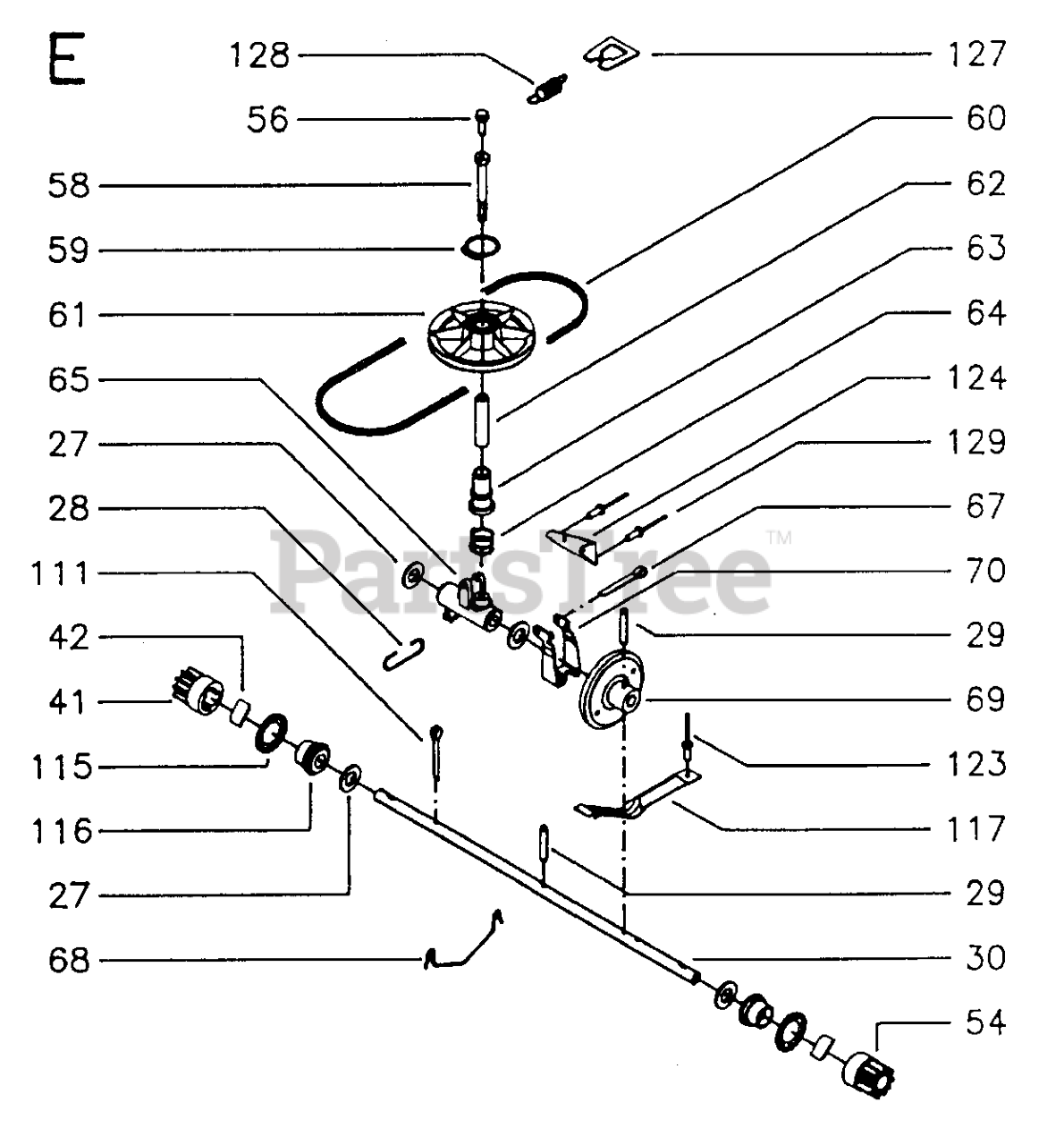

BLADE DRIVE & DEPTH CONTROL Parts Diagram

  • Title

117

Husqvarna 516478901

GUARD

$

$

Not available

29

Husqvarna 721431250

PIN

$

$

Not available

54

Husqvarna 516921600

PINION, LEFT

$

$

Not available

68

Husqvarna 516441401

HOLDER SPACER

$

$

Not available

58

Husqvarna 516909001

BOLT

$

$

Not available

61

Husqvarna 516694600

PULLEY W/BRG

$

$

Not available

62

Husqvarna 516922000

SPACER

$

$

Not available

64

Husqvarna 516449601

SPRING

$

$

Not available

41

Husqvarna 516921500

PINION, RIGHT

$

$

Not available

27

Husqvarna 515768016

WASHER
(Superseded to 515796033)

$

$

Not available

129

Husqvarna 516924000

RIVET

$2.49

$

In Stock, Qty 8

0

67

Husqvarna 516916201

PIN

$

$

Not available

69

Husqvarna 516693700

WHEEL ASSY FRICTION
(Superseded to 513902401)

$

$

Not available

63

Husqvarna 516712803

SLEEVE
(Superseded to 513950600)

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 516790800

HOLDER
(Superseded to 513077900)

$

$

Not available

124

Husqvarna 516426701

COVER

$

$

Not available

59

Husqvarna 516909700

SNAP RING

$

$

Not available

60

Husqvarna 516922600

BELT -V RUBBER/TEXTILE
(Superseded to 531005034)

$

$

Not available

30

Husqvarna 516614901

SHAFT

$

$

Not available

123

Husqvarna 516909200

REPL BY 516 92 38-00
(Superseded to 516923800)

$

$

Not available

128

Husqvarna 516615101

SPRING

$

$

Not available

28

Husqvarna 516447701

CLIPS
(Superseded to 513951200)

$

$

Not available

42

Husqvarna 516910000

CARRIER
(Superseded to 514883100)

$7.99

$

In Stock, only 4 left!

0

70

Husqvarna 516429701

RAM
(Superseded to 513952700)

$

$

Not available

56

Husqvarna 516909101

SCREW TAPTITE

$

$

Not available

111

Husqvarna 516919401

PIN

$

$

Not available

127

Husqvarna 516432001

SPRING FASTENING

$

$

Not available

116

Husqvarna 516786100

BUSHING

$

$

Not available

115

Husqvarna 516426600

LOCK WASHER

$

$

Not available
