Royal 48 - Husqvarna Walk-Behind Mower FRAME 6 Parts Diagram

Walk-Behind Mower

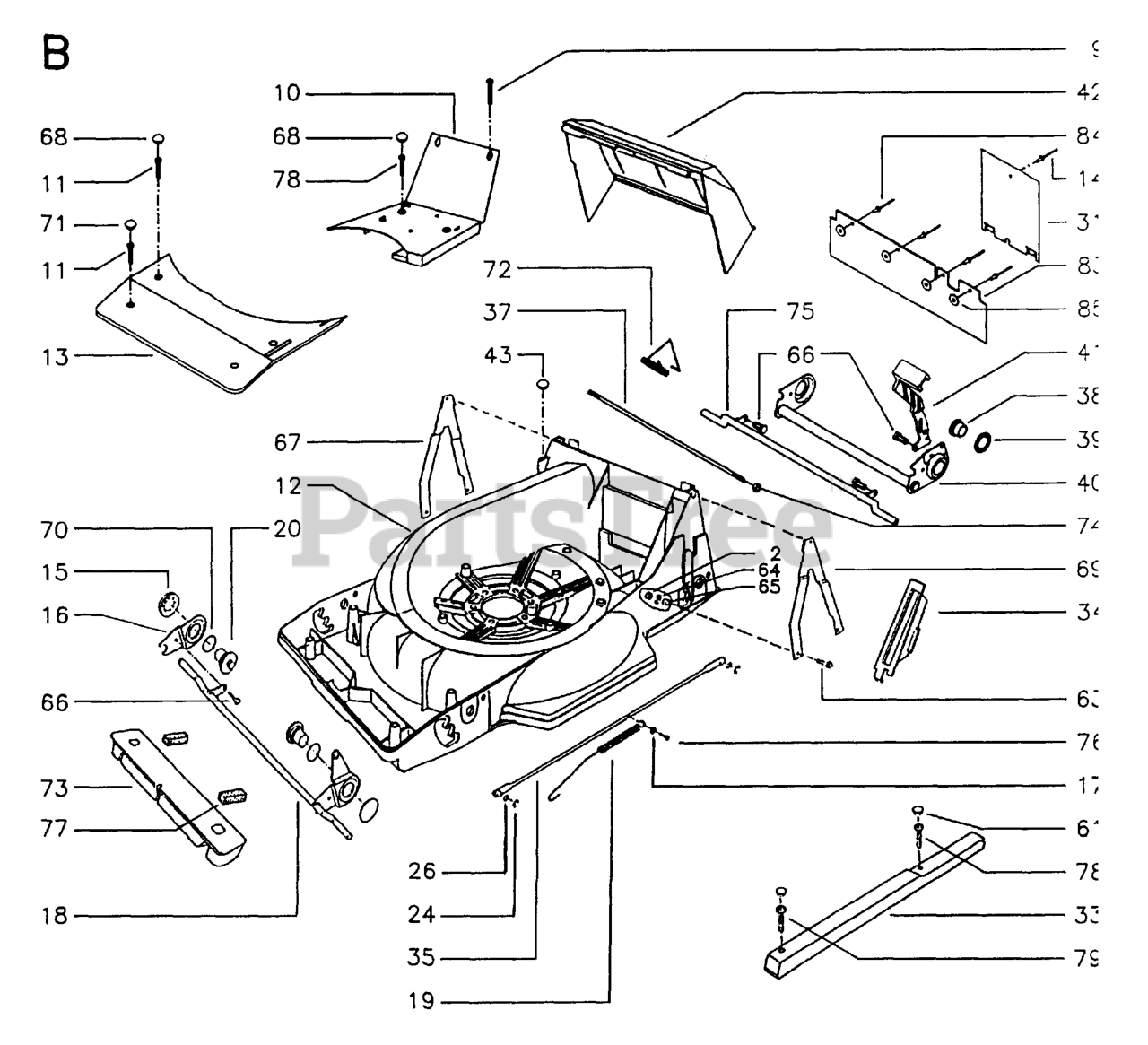

FRAME 6 Parts Diagram

  • Title

66

Husqvarna 516928501

BOLT

$

$

Not available

9

Husqvarna 515745029

SCREW

$

$

Not available

33

Husqvarna 516859411

COVER

$

$

Not available

71

Husqvarna 516859107

$

$

Currently unavailable

38

Husqvarna 516425701

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 516429001

REPL BY 516 49 96-01
(Superseded to 516499601)

$

$

Not available

70

Husqvarna 516920100

O-RING

$

$

Not available

84

Husqvarna 516909200

REPL BY 516 92 38-00
(Superseded to 516923800)

$

$

Not available

12

Husqvarna 516872607

COVER

$

$

Not available

31

Husqvarna 516628601

PLATE

$

$

Not available

68

Husqvarna 516874507

PLUG

$

$

Not available

75

Husqvarna 516709801

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 515745051

SCREW

$

$

Not available

15

Husqvarna 516913200

LOCK RING

$

$

Not available

26

Husqvarna 516919100

O-RING

$

$

Not available

78

Husqvarna 515745149

SCREW

$

$

Not available

79

Husqvarna 515745053

SCREW

$

$

Not available

42

Husqvarna 516872707

COVER

$

$

Not available

41

Husqvarna 516854507

CONTROL

$

$

Not available

72

Husqvarna 516448901

SPRING

$

$

Not available

77

Husqvarna 516841100

Damper

$

$

Not available

24

Husqvarna 516905100

Ring

$

$

Not available

83

Husqvarna 516849000

SPLASH GUARD

$

$

Not available

76

Husqvarna 516909101

SCREW TAPTITE

$

$

Not available

63

Husqvarna 725245051

SCREW

$

$

Not available

10

Husqvarna 516872807

BRACKET 48S

$

$

Not available

40

Husqvarna 516704001

SHAFT

$

$

Not available

19

Husqvarna 516438801

SPRING

$

$

Not available

17

Husqvarna 516925301

WASHER

$

$

Not available

18

Husqvarna 516709701

NEEDS DESCRIPTION

$

$

Not available

85

Husqvarna 516492301

WASHER

$

$

Not available

61

Husqvarna 516858811

PLUG

$

$

Not available

34

Husqvarna 516852611

HEIGHT ADJ. COVER

$

$

Not available

13

Husqvarna 516872907

PLATE

$

$

Not available

39

Husqvarna 516426600

LOCK WASHER

$

$

Not available

73

Husqvarna 516840600

WEIGHT

$

$

Not available

43

Husqvarna 516838611

FLANGE

$

$

Not available

64

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 516505901

SUPPORT

$

$

Not available

35

Husqvarna 516693101

ROD

$

$

Not available

69

Husqvarna 516509511

PLATE

$

$

Not available

20

Husqvarna 516425801

FASTENING

$

$

Not available

67

Husqvarna 516509411

PLATE

$

$

Not available

65

Husqvarna 516509601

SLEEVE

$

$

Not available

2

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

74

Husqvarna 516919201

NUT

$

$

Not available

14

Husqvarna 516927900

RIVET

$

$

Not available
