Royal 53 - Husqvarna Walk-Behind Mower (2003-01) Handle Assy. Parts Diagram

Walk-Behind Mower

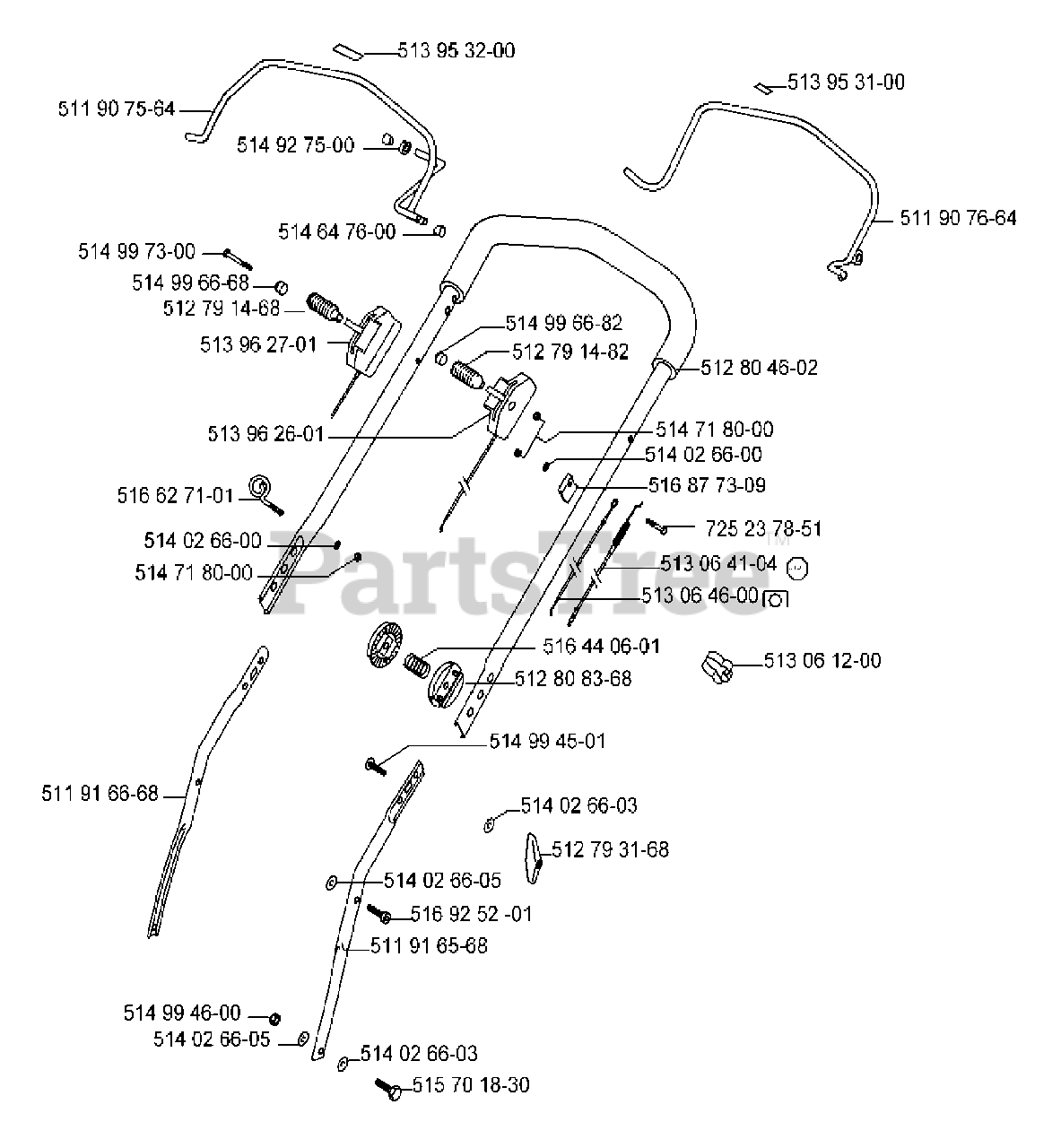

Handle Assy. Parts Diagram

  • Title

513953200

Husqvarna 513953200

Decal

$

$

Not available

514957500

Husqvarna 514957500

$

$

Currently unavailable

511907564

Husqvarna 511907564

BAIL ARM:BRAKE

$

$

Not available

514647600

Husqvarna 514647600

Knob

$

$

Not available

514997300

Husqvarna 514997300

HEAD BOLT HEX M6

$

$

Not available

513962701

Husqvarna 513962701

CABLE VARIATOR
(Superseded to 513962700)

$

$

Not available

512791468

Husqvarna 512791468

Handle

$

$

Not available

514996682

Husqvarna 514996682

REGULATOR KNOB (RED)

$

$

Not available

512791482

Husqvarna 512791482

Handle

$

$

Not available

513962601

Husqvarna 513962601

CABLE THROTTLE

$

$

Not available

516627101

Husqvarna 516627101

Cable Guide
(Superseded to 513076300)

$

$

Not available

514026600

Husqvarna 514026600

Washer

$4.99

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

Nut

$

$

Not available

514996668

Husqvarna 514996668

REGULATOR KNOB CAP

$

$

Not available

511916668

Husqvarna 511916668

LOWER HANDLE RH

$

$

Not available

512808368

Husqvarna 512808368

TILT ADJUSTER

$

$

Not available

514994501

Husqvarna 514994501

Bolt

$

$

Not available

514026603

Husqvarna 514026603

Washer

$

$

Not available

516440601

Husqvarna 516440601

Spring

$

$

Not available

513061200

Husqvarna 513061200

CABLE CLIP STANDARD

$

$

Not available

513064600

Husqvarna 513064600

CABLE, DRIVE 53CM

$

$

Not available

513064104

Husqvarna 513064104

CABLE, ENGINE BRAKE

$

$

Not available

516877309

Husqvarna 516877309

Bracket

$

$

Not available

514026600

Husqvarna 514026600

Washer

$4.99

$

Usually ships in 3-10 days

0

514718000

Husqvarna 514718000

Nut

$

$

Not available

512804602

Husqvarna 512804602

COMFORT HANDLE W/ GRIP

$

$

Not available

725237851

Husqvarna 725237851

Screw

$6.49

$

In Stock, only 2 left!

0

511907664

Husqvarna 511907664

BAIL ARM:DRIVE
(Superseded to 511907668)

$

$

Not available

513953100

Husqvarna 513953100

Decal

$

$

Not available

514994600

Husqvarna 514994600

Nut

$

$

Not available

514026605

Husqvarna 514026605

WASHER

$

$

Not available

514026605

Husqvarna 514026605

WASHER

$

$

Not available

516925201

Husqvarna 516925201

Screw
(Superseded to 516924101)

$

$

Not available

511916568

Husqvarna 511916568

LOWER HANDLE

$

$

Not available

514026603

Husqvarna 514026603

Washer

$

$

Not available

515701830

Husqvarna 515701830

Repl by 725 24 57-51
(Superseded to 725245751)

$7.99

$

In Stock, only 1 left!

0

512793168

Husqvarna 512793168

Wingnut
(Superseded to 512793167)

$6.99

$

Usually ships in 3-10 days

0
