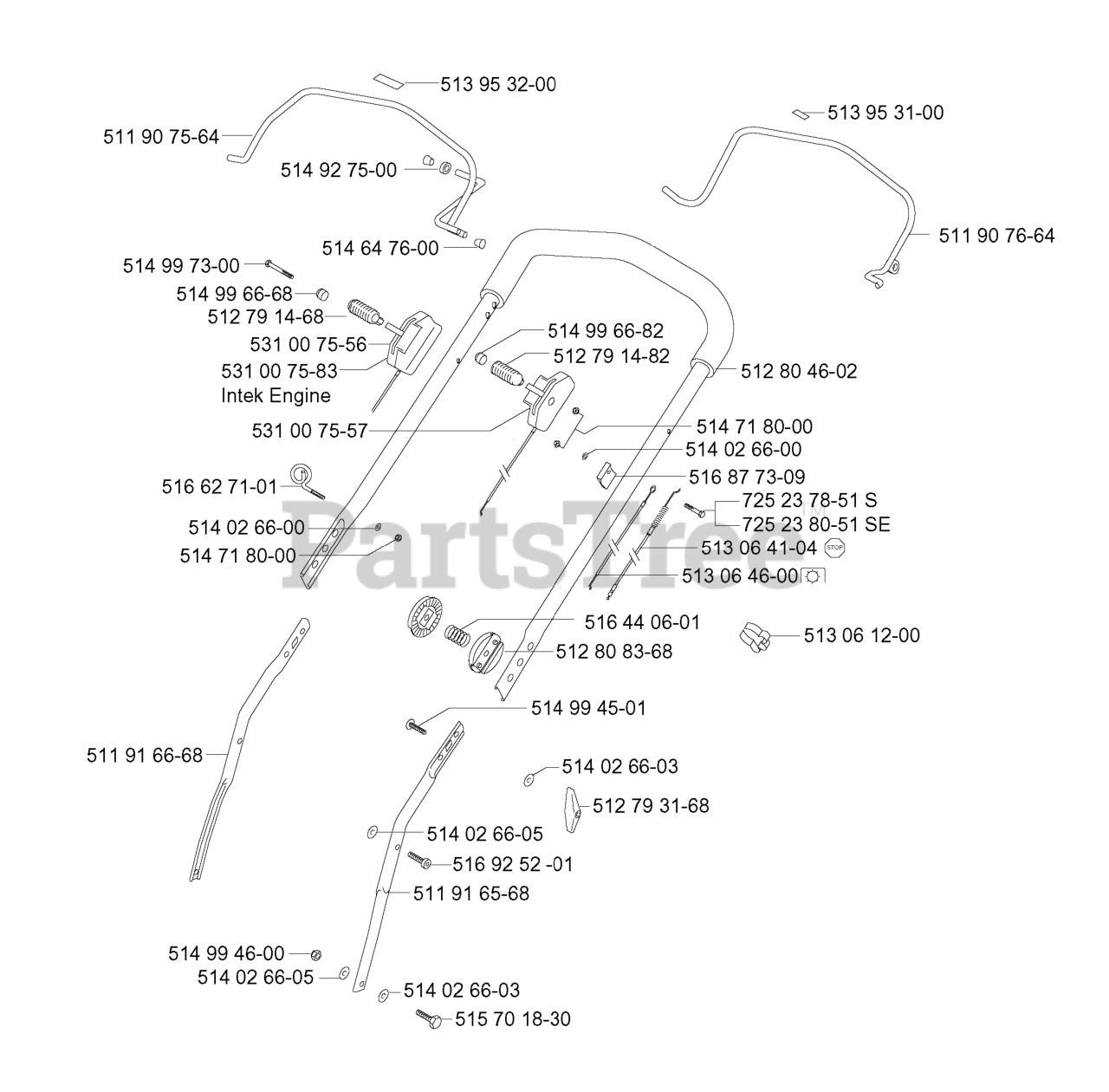

Royal 53 - Husqvarna Walk-Behind Mower HANDLE & CONTROLS 17 Parts Diagram

Walk-Behind Mower

HANDLE & CONTROLS 17 Parts Diagram

  • Title

511 90 76-64

Husqvarna 511907664

BAIL ARM:DRIVE
(Superseded to 511907668)

$

$

Not available

531 00 75-57

Husqvarna 531007557

NEEDS DESCRIPTION

$

$

Currently unavailable

514 02 66-05

Husqvarna 514026605

WASHER

$

$

Not available

512 79 14-82

Husqvarna 512791482

HANDLE

$

$

Not available

513 06 41-04

Husqvarna 513064104

CABLE, ENGINE BRAKE

$

$

Not available

516 87 73-09

Husqvarna 516877309

BRACKET

$

$

Not available

513 06 12-00

Husqvarna 513061200

CABLE CLIP STANDARD

$

$

Not available

516 44 06-01

Husqvarna 516440601

SPRING

$

$

Not available

531 00 75-56

Husqvarna 531007556

NEEDS DESCRIPTION

$

$

Currently unavailable

516 92 52 -01

Husqvarna 516925201

SCREW
(Superseded to 516924101)

$

$

Not available

514 02 66-03

Husqvarna 514026603

WASHER

$

$

Not available

511 90 75-64

Husqvarna 511907564

BAIL ARM:BRAKE

$

$

Not available

512 80 83-68

Husqvarna 512808368

TILT ADJUSTER

$

$

Not available

531 00 75-83

Husqvarna 531007583

NEEDS DESCRIPTION

Note: INTEK ENGINE

$

$

Currently unavailable

512 79 14-68

Husqvarna 512791468

Handle

$

$

Not available

513 95 32-00

Husqvarna 513953200

DECAL

$

$

Not available

516 62 71-01

Husqvarna 516627101

CABLE GUIDE
(Superseded to 513076300)

$

$

Not available

514 71 80-00

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

514 64 76-00

Husqvarna 514647600

Knob

$

$

Not available

514 99 66-82

Husqvarna 514996682

REGULATOR KNOB (RED)

$

$

Not available

513 95 31-00

Husqvarna 513953100

Decal

$

$

Not available

511 91 65-68

Husqvarna 511916568

LOWER HANDLE

$

$

Not available

514 99 73-00

Husqvarna 514997300

HEAD BOLT HEX M6

$

$

Not available

514 99 66-68

Husqvarna 514996668

REGULATOR KNOB CAP

$

$

Not available

513 06 46-00

Husqvarna 513064600

CABLE, DRIVE 53CM

$

$

Not available

512 79 31-68

Husqvarna 512793168

WINGNUT
(Superseded to 512793167)

$6.99

$

Usually ships in 3-10 days

0

514 02 66-00

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

725 23 80-51

Husqvarna 725238051

SCREW M6X50

Note: SE

$4.99

$

Usually ships in 3-10 days

0

725 23 78-51

Husqvarna 725237851

SCREW

Note: S

$6.49

$

In Stock, only 2 left!

0

514 99 45-01

Husqvarna 514994501

Bolt

$

$

Not available

512 80 46-02

Husqvarna 512804602

COMFORT HANDLE W/ GRIP

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

514 92 75-00

Husqvarna 514927500

NEEDS DESCRIPTION

$

$

Not available

515 70 18-30

Husqvarna 515701830

SCREW
(Superseded to 725245751)

$7.99

$

In Stock, only 1 left!

0

511 91 66-68

Husqvarna 511916668

LOWER HANDLE RH

$

$

Not available
