Royal 53 - Husqvarna Walk-Behind Mower WHEEL & DEPTH STAKE ASSEMBLY 8 Parts Diagram

Walk-Behind Mower

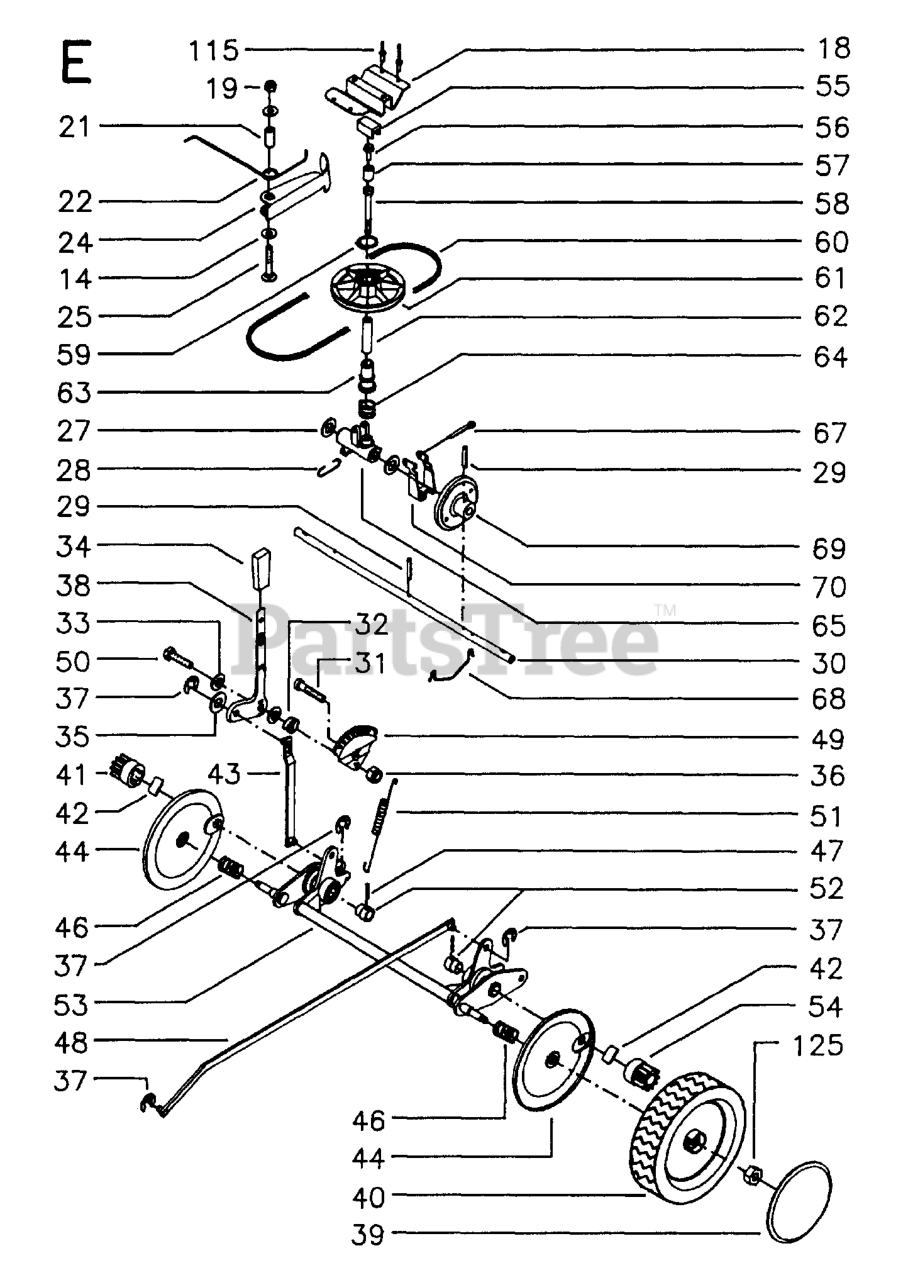

WHEEL & DEPTH STAKE ASSEMBLY 8 Parts Diagram

  • Title

67

Husqvarna 516916201

PIN

$

$

Not available

25

Husqvarna 727638051

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 516925201

SCREW
(Superseded to 516924101)

$

$

Not available

42

Husqvarna 516910000

CARRIER
(Superseded to 514883100)

$7.99

$

In Stock, only 4 left!

0

68

Husqvarna 516441401

HOLDER SPACER

$

$

Not available

29

Husqvarna 721431200

SPRING PIN 5X28

$

$

Not available

58

Husqvarna 516909001

BOLT

$

$

Not available

37

Husqvarna 516905100

Ring

$

$

Not available

70

Husqvarna 516429701

RAM
(Superseded to 513952700)

$

$

Not available

125

Husqvarna 732212031

NUT

$

$

Not available

39

Husqvarna 516845808

WHEEL COVER

$

$

Not available

32

Husqvarna 516499201

Spring

$

$

Not available

115

Husqvarna 516927900

RIVET

$

$

Not available

33

Husqvarna 515139765

Washer

$

$

Not available

53

Husqvarna 516807100

$

$

Currently unavailable

46

Husqvarna 516614801

SPRING
(Superseded to 514930700)

$

$

Not available

55

Husqvarna 516850809

SLIDE BEARING

$

$

Not available

114

Husqvarna 516449101

WASHER

$

$

Not available

43

Husqvarna 516708701

STAY

$

$

Not available

52

Husqvarna 516614001

SLEEVE

$

$

Not available

35

Husqvarna 516440701

WASHER

$

$

Not available

28

Husqvarna 516447701

CLIPS
(Superseded to 513951200)

$

$

Not available

51

Husqvarna 516494701

SPRING

$

$

Not available

56

Husqvarna 516924201

SCREW
(Superseded to 516925201)

$

$

Not available

34

Husqvarna 516874807

HANDLE

$

$

Not available

30

Husqvarna 516614201

SHAFT
(Superseded to 516614200)

$

$

Not available

63

Husqvarna 516712803

SLEEVE
(Superseded to 513950600)

$14.99

$

Usually ships in 3-10 days

0

48

Husqvarna 516708801

STAY

$

$

Not available

47

Husqvarna 721421000

PIN

$

$

Not available

69

Husqvarna 516693700

WHEEL ASSY FRICTION
(Superseded to 513902401)

$

$

Not available

60

Husqvarna 516924600

BELT
(Superseded to 531005032)

$

$

Not available

40

Husqvarna 516824900

WHEEL

$

$

Not available

57

Husqvarna 516495101

SPACER

$

$

Not available

65

Husqvarna 516790800

HOLDER
(Superseded to 513077900)

$

$

Not available

36

Husqvarna 732212001

NUT

$5.99

$

Usually ships in 3-10 days

0

50

Husqvarna 725249771

Screw

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 515768016

WASHER
(Superseded to 515796033)

$

$

Not available

18

Husqvarna 516495001

PLATE

$

$

Not available

21

Husqvarna 516934701

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 516921600

PINION, LEFT

$

$

Not available

64

Husqvarna 516449601

SPRING

$

$

Not available

62

Husqvarna 516922000

SPACER

$

$

Not available

59

Husqvarna 516909700

SNAP RING

$

$

Not available

49

Husqvarna 515139840

INDEXPLATE
(Superseded to 516805800)

$

$

Not available

44

Husqvarna 516845709

SHIELD
(Superseded to 512797000)

$

$

Not available

19

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 516633301

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 51649661

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 516921500

PINION, RIGHT

$

$

Not available

24

Husqvarna 516633601

NEEDS DESCRIPTION

$

$

Currently unavailable

61

Husqvarna 516703100

PULLEY
(Superseded to 513906200)

$

$

Not available
