Royal 53 S - Husqvarna Walk-Behind Mower (1990-06) Handle Assembly Parts Diagram

Walk-Behind Mower

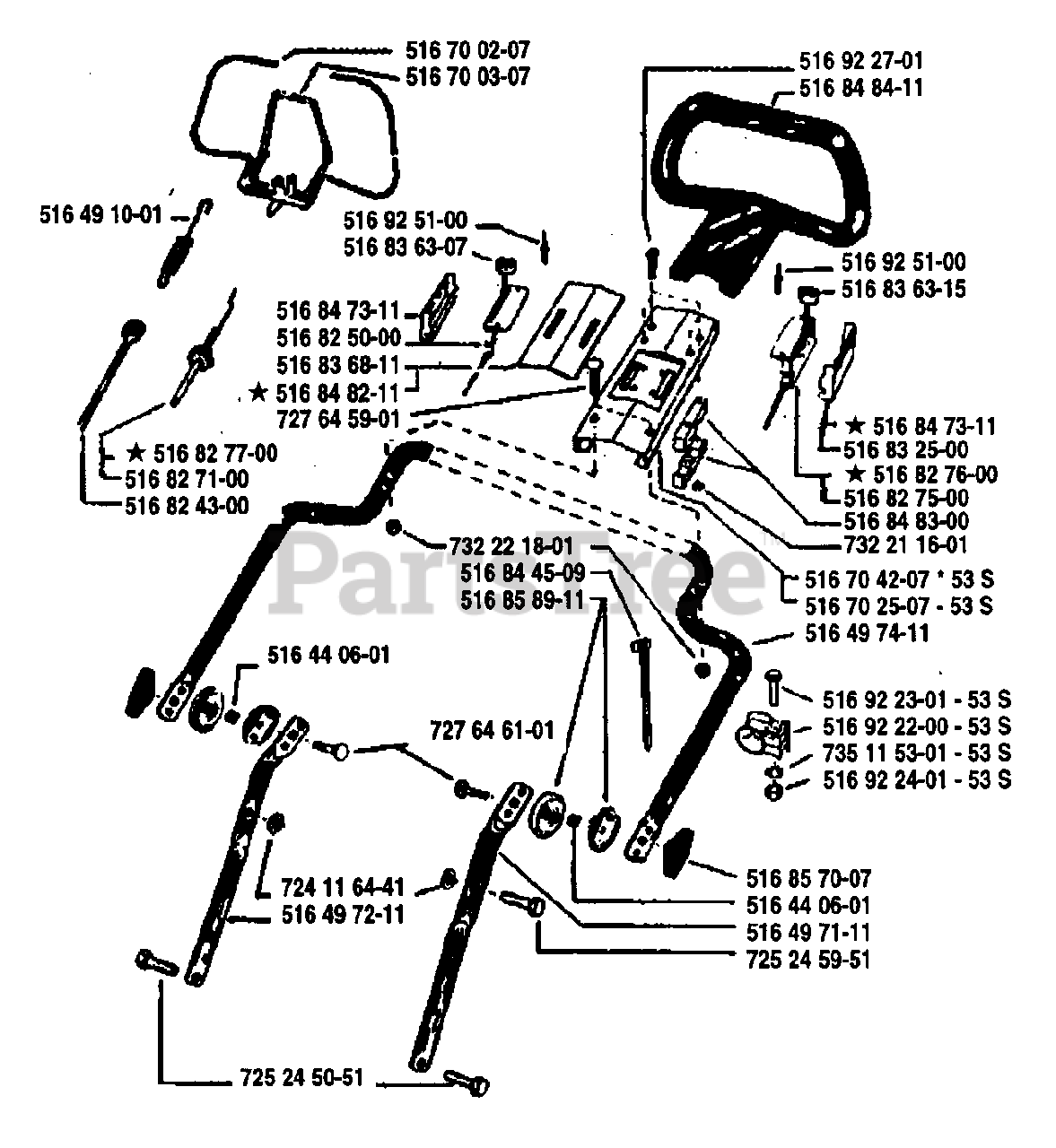

Handle Assembly Parts Diagram

  • Title

516700207

Husqvarna 516700207

LOOP

$

$

Not available

516700307

Husqvarna 516700307

LOOP

$

$

Not available

516925100

Husqvarna 516925100

RIVET

$

$

Not available

516836307

Husqvarna 516836307

REPL BY 516 83 63-15
(Superseded to 516836315)

$

$

Not available

516847311

Husqvarna 516847311

COVER

$

$

Not available

516825000

Husqvarna 516825000

WIRE
(Superseded to 516825002)

$

$

Not available

516836811

Husqvarna 516836811

PLASTIC PANEL
(Superseded to 516855797)

$

$

Not available

516848211

Husqvarna 516848211

PANEL

$

$

Not available

727645901

Husqvarna 727645901

SCREW

$

$

Not available

516827700

Husqvarna 516827700

WIRE

$

$

Not available

516791001

Husqvarna 516791001

$

$

Currently unavailable

516827100

Husqvarna 516827100

WIRE

$

$

Not available

516824300

Husqvarna 516824300

WIRE
(Superseded to 516824302)

$

$

Not available

516440601

Husqvarna 516440601

SPRING

$

$

Not available

732221801

Husqvarna 732221801

$

$

Currently unavailable

516844509

Husqvarna 516844509

TIE-WRAP

$

$

Not available

516858911

Husqvarna 516858911

ADJUSTER

$

$

Not available

727646101

Husqvarna 727646101

SCREW

$8.99

$

In Stock, only 1 left!

0

516847311

Husqvarna 516847311

COVER

$

$

Not available

516832500

Husqvarna 516832500

COVER

$

$

Not available

516827600

Husqvarna 516827600

THROTTLE TRIGGER
(Superseded to 516824000)

$

$

Not available

516827500

Husqvarna 516827500

REPL BY 516 82 45-00
(Superseded to 516824500)

$

$

Not available

516848300

Husqvarna 516848300

CLAMP

$

$

Not available

732211601

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

516704207

Husqvarna 516704207

PANEL

$

$

Not available

516702507

Husqvarna 516702507

PANEL

$

$

Not available

516797411

Husqvarna 516797411

$

$

Currently unavailable

516922301

Husqvarna 516922301

BOLT

$

$

Not available

516922200

Husqvarna 516922200

HOLDER

$

$

Not available

735115301

Husqvarna 735115301

SPRING WASHER

$4.99

$

In Stock, only 1 left!

0

516922401

Husqvarna 516922401

NUT

$

$

Not available

516857007

Husqvarna 516857007

WING NUT
(Superseded to 516874607)

$6.99

$

Usually ships in 3-10 days

0

516440601

Husqvarna 516440601

SPRING

$

$

Not available

516497111

Husqvarna 516497111

HANDLE
(Superseded to 511916568)

$

$

Not available

725245951

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

724116441

Husqvarna 724116441

WASHER
(Superseded to 734116401)

$6.49

$

In Stock, only 4 left!

0

516497211

Husqvarna 516497211

HANDLE

$

$

Not available

725245051

Husqvarna 725245051

SCREW

$

$

Not available

516922701

Husqvarna 516922701

SCREW

$

$

Not available

516848411

Husqvarna 516848411

HANDLE

$

$

Not available

516925100

Husqvarna 516925100

RIVET

$

$

Not available

516836315

Husqvarna 516836315

PLASTIC GRIP

$

$

Not available
