Royal 53 S - Husqvarna Walk-Behind Mower (1995-02) Ground Drive Assembly Parts Diagram

Walk-Behind Mower

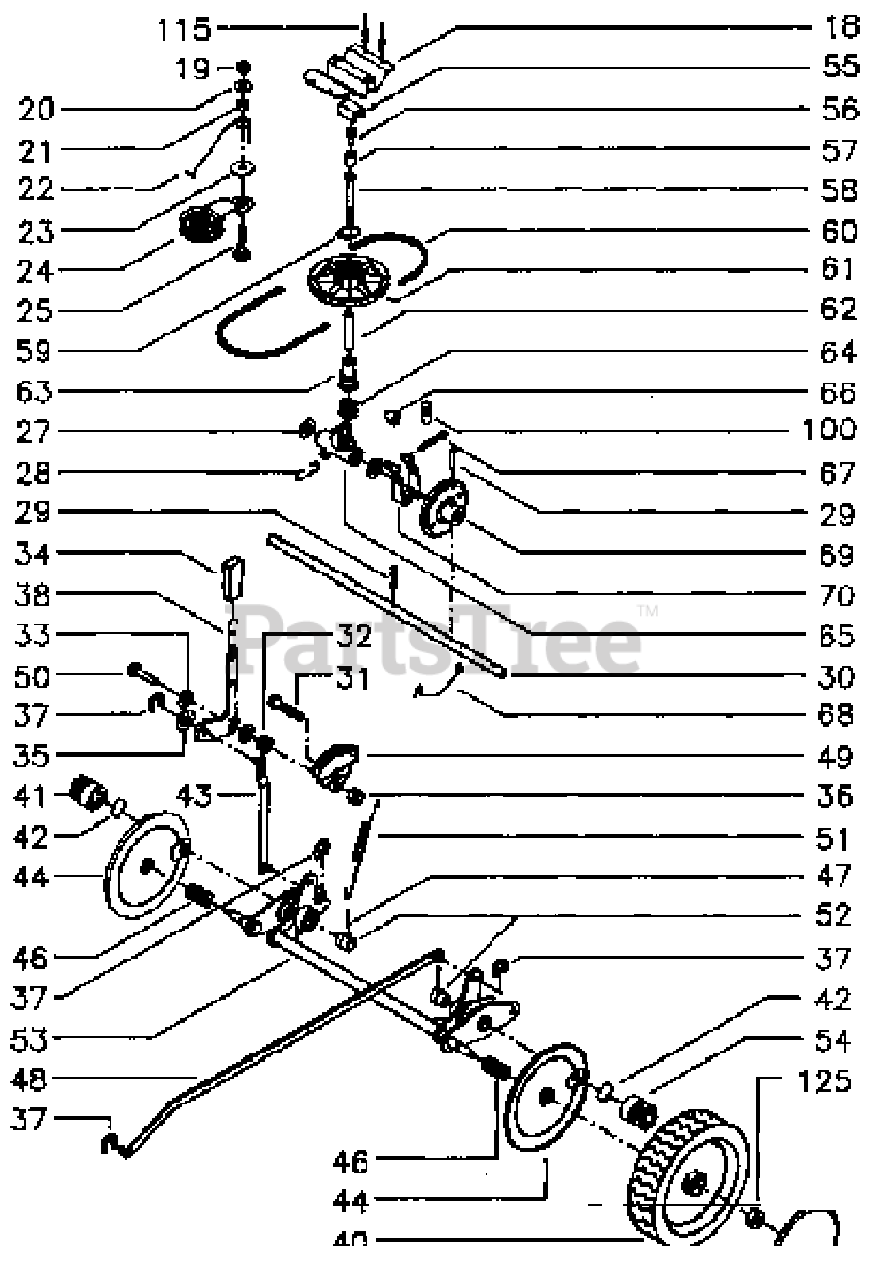

Ground Drive Assembly Parts Diagram

  • Title

18

Husqvarna 516495001

Plate

$

$

Not available

19

Husqvarna 732211601

Locknut M6

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 734116441

Spacer

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 516491901

Spacer

$

$

Not available

22

Husqvarna 516631601

Spring

$

$

Not available

23

Husqvarna 516492201

Washer

$

$

Not available

24

Husqvarna 516700501

Tensioner
(Superseded to 513081600)

$

$

Not available

25

Husqvarna 515711630

Screw

$

$

Not available

27

Husqvarna 515768016

Washer
(Superseded to 515796033)

$

$

Not available

28

Husqvarna 516447701

Clips
(Superseded to 513951200)

$

$

Not available

29

Husqvarna 721431200

Spring Pin 5x28

$

$

Not available

30

Husqvarna 516614201

Shaft
(Superseded to 516614200)

$

$

Not available

31

Husqvarna 516925201

Screw
(Superseded to 516924101)

$

$

Not available

32

Husqvarna 516499201

Spring

$

$

Not available

33

Husqvarna 515139765

Washer

$

$

Not available

34

Husqvarna 516874807

Handle

$

$

Not available

35

Husqvarna 516440701

Washer

$

$

Not available

36

Husqvarna 732212001

Nut

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 516905100

Ring

$

$

Not available

38

Husqvarna 516496611

Control

$

$

Not available

39

Husqvarna 516845808

Wheel Cover

$

$

Not available

40

Husqvarna 516824900

Wheel

$

$

Not available

41

Husqvarna 516921500

Pinion, Right

$

$

Not available

42

Husqvarna 516910000

Carrier
(Superseded to 514883100)

$7.99

$

In Stock, only 4 left!

0

43

Husqvarna 516708701

Stay

$

$

Not available

44

Husqvarna 516845709

Shield
(Superseded to 512797000)

$

$

Not available

46

Husqvarna 516614801

Spring
(Superseded to 514930700)

$

$

Not available

47

Husqvarna 721421000

Pin

$

$

Not available

48

Husqvarna 516708801

Stay

$

$

Not available

49

Husqvarna 515139840

Indexplate
(Superseded to 516805800)

$

$

Not available

50

Husqvarna 725249771

Screw

$3.49

$

In Stock, only 1 left!

0

51

Husqvarna 516494701

Spring

$

$

Not available

52

Husqvarna 516614001

Sleeve

$

$

Not available

53

Husqvarna 516807100

$

$

Currently unavailable

54

Husqvarna 516921600

Pinion, Left

$

$

Not available

55

Husqvarna 516850809

Slide Bearing

$

$

Not available

56

Husqvarna 516924201

Screw
(Superseded to 516925201)

$

$

Not available

57

Husqvarna 516495101

Spacer

$

$

Not available

58

Husqvarna 516909001

Bolt

$

$

Not available

59

Husqvarna 516909700

Snap Ring

$

$

Not available

60

Husqvarna 516924600

Belt
(Superseded to 531005032)

$

$

Not available

61

Husqvarna 516703100

Pulley
(Superseded to 513906200)

$

$

Not available

62

Husqvarna 516922000

Spacer

$

$

Not available

63

Husqvarna 516712803

Sleeve
(Superseded to 513950600)

$14.99

$

Usually ships in 3-10 days

0

64

Husqvarna 516449601

Spring

$

$

Not available

65

Husqvarna 516790800

Holder
(Superseded to 513077900)

$

$

Not available

66

Husqvarna 516922100

Muff

$

$

Not available

67

Husqvarna 516916201

Pin

$

$

Not available

68

Husqvarna 516441401

Holder Spacer

$

$

Not available

69

Husqvarna 516693700

Wheel Assy Friction
(Superseded to 513902401)

$

$

Not available

70

Husqvarna 516429701

Ram
(Superseded to 513952700)

$

$

Not available

100

Husqvarna 516920602

Nipple

$

$

Not available

115

Husqvarna 516927900

Rivet

$

$

Not available

125

Husqvarna 732212031

Nut

$

$

Not available
