RPB7-65011 - Subaru Robin Submersible Pump 4200 Pump Parts Diagram

Submersible Pump

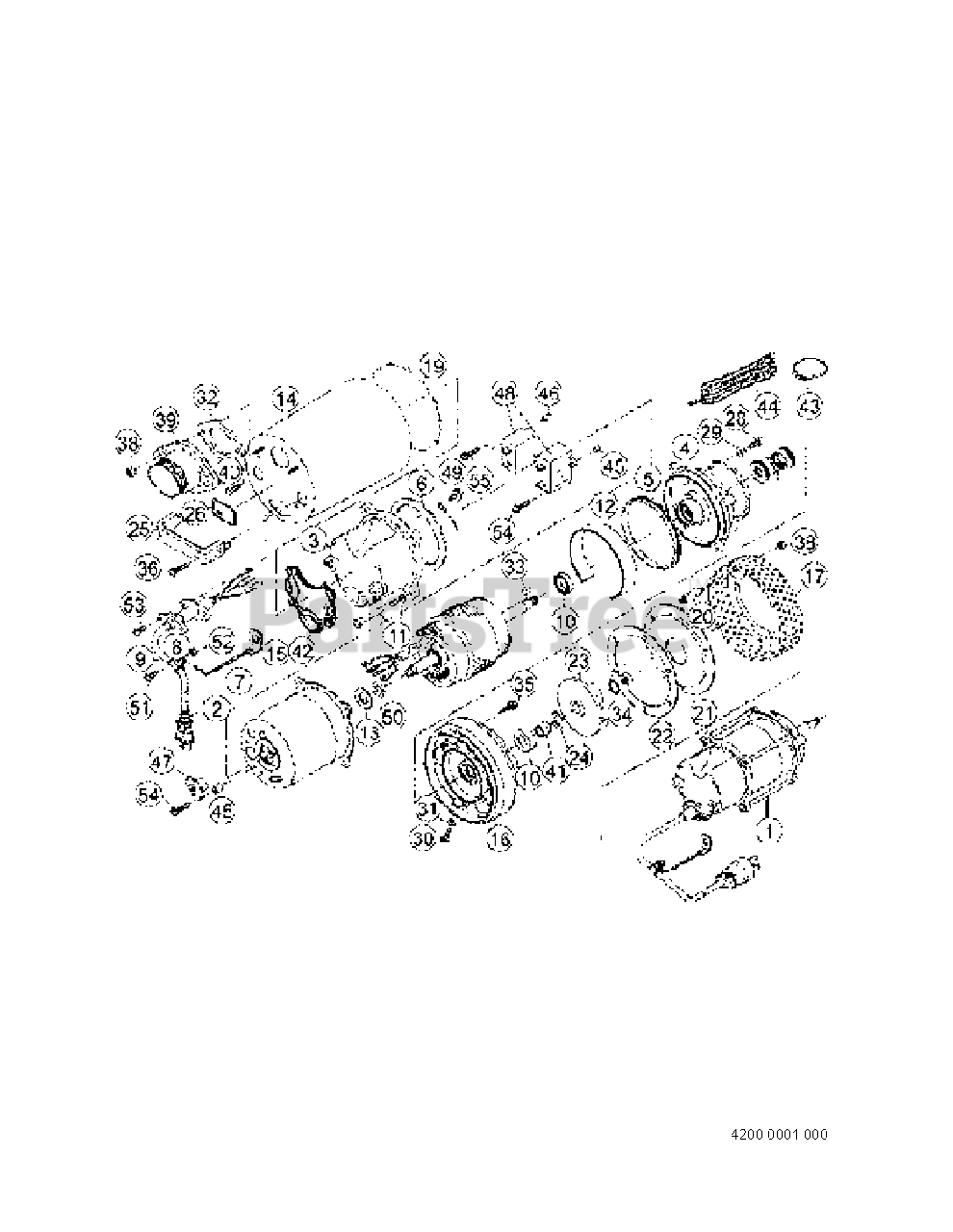

4200 Pump Parts Diagram

  • Title

2

0430232

POWER CORD

$

$

Not available

3

0430012

HEAD COVER

$

$

Not available

4

0430220

FRONT BRACKET

$

$

Not available

5

0430004

FRAME GASKET

$

$

Not available

6

0430003

HEAD GASKET

$

$

Not available

7

0390027

CHAIN AY

$

$

Not available

8

0260018

CORD BAND

$

$

Not available

9

0390031

CORD SUPPORTER

$

$

Not available

10

893555043

OIL SEAL

$

$

Not available

11

0430043

SCREW

$

$

Not available

12

0430021

SUPPORTER

$

$

Not available

13

0430082

WASHER

$

$

Not available

14

0430008

OUTER COVER

$

$

Not available

15

0430013

OUTER GASKET

$

$

Not available

16

0430223

CASING

$

$

Not available

17

0430225

STRAINER

$

$

Not available

18

Subaru Robin 889955100

O RING

Note: NOT LISTED ON DRAWING

$

$

Currently unavailable

19

890155150

O RING

$

$

Not available

20

0430253

STUD BOLT

Note: NOT LISTED ON DRAWING

$

$

Not available

21

0430226

SUCTION COVER

$

$

Not available

22

0430227

SUCTION COVER GASKET

$

$

Not available

23

0430234

IMPELLER

$

$

Not available

24

0390025

ADJUSTING WASHER

$

$

Not available

25

0430078

HANDLE

$

$

Not available

26

LABEL

$

$

Not available

27

0390003

MECHANICAL SEAL

Note: NOT LISTED ON DRAWING

$

$

Not available

28

0340153

SCREW

$

$

Not available

29

0340142

SEAL RING

$

$

Not available

30

0390037

HEX SOCKET BOLT

$

$

Not available

31

854255010

SEAL WASHER

$

$

Not available

32

0390092

DELIVERY GASKET

$

$

Not available

33

Subaru Robin 884205023

KEY

$

$

Currently unavailable

34

845205010

TOOTHED WASHER

$

$

Not available

35

0430044

HEX SOCKET BOLT

$

$

Not available

36

707605057

SCREW

$

$

Not available

37

827405010

NUT

Note: NOT LISTED ON DRAWING

$

$

Not available

38

827405008

NUT

$

$

Not available

39

0430143

DELIVERY FLANGE

$

$

Not available

40

747805028

HEX BOLT

Note: NOT LISTED ON DRAWING

$

$

Not available

41

0430074

SLEEVE

$

$

Not available

43

940019060

HOSE BAND

$

$

Not available

44

0390101

ROPE

$

$

Not available

45

0430294

SPACER

$

$

Not available

46

0430295

SPACER

$

$

Not available

47

0430293

THERMAL PROTECTOR

Note: NOT LISTED ON DRAWING

$

$

Not available

48

0430296

CONDENSER

$

$

Not available

49

707819036

SCREW

$

$

Not available

50

0430082

WAVE WASHER

$

$

Not available

51

703305100

SCREW

$

$

Not available

52

827305005

HEX NUT

$

$

Not available

53

703305102

SCREW

$

$

Not available

54

708119039

SCREW

$

$

Not available

55

708119041

SCREW

$

$

Not available
