RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE BUCKET ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

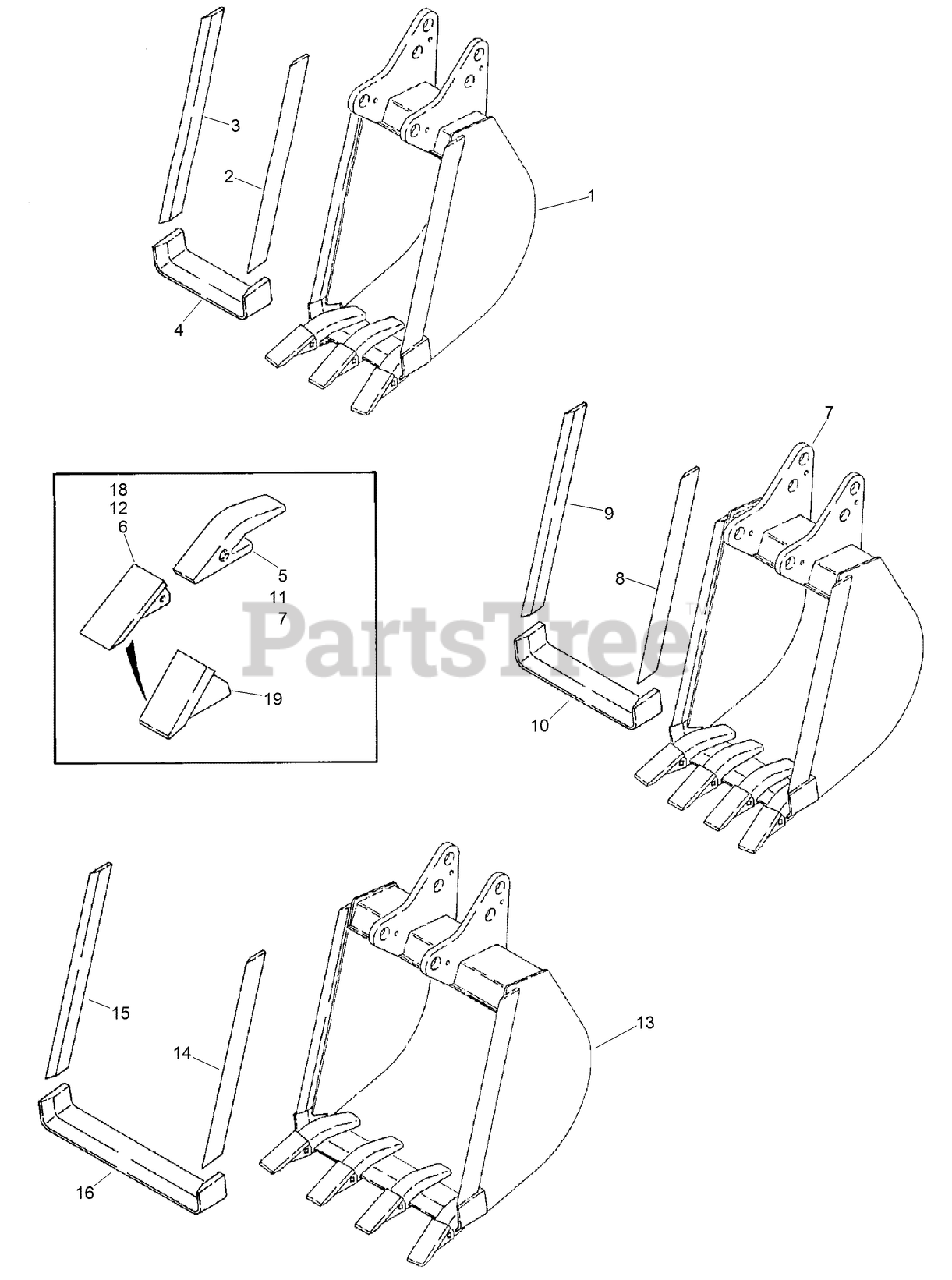

BACKHOE BUCKET ASSEMBLY Parts Diagram

  • Title

1

Toro AUH672513

ASSEMBLY - Bucket, 344 mm (13 in) (Includes items 2 - 6 )

$

$

Not available

2

Toro AUH433581

EDGE-CUTTING - LH

$113.99

$

Usually ships in 3-6 days

0

3

Toro AUH433584

EDGE-CUTTING - RH

$116.99

$

Usually ships in 3-6 days

0

Toro AUH672510

ASSEMBLY - Plate, Center (Includes items 4 - 6)

Note: Not illustrated

$

$

Currently unavailable

4

PLATE - Center (Includes items 5 & 6)

Note: Not serviced separately

$

$

Not available

5

SHANK - Bucket Tooth

Note: Not serviced separately

$

$

Not available

6

Toro AUD27748

POINT - Bucket Tooth

$

$

Not available

7

Toro AUH672514

BUCKET-TRENCHING, 18IN

$

$

Currently unavailable

8

Toro AUH433581

EDGE-CUTTING - LH

$113.99

$

Usually ships in 3-6 days

0

9

Toro AUH433584

EDGE-CUTTING - RH

$116.99

$

Usually ships in 3-6 days

0

Toro AUH672511

BLADE-BUCKET

Note: Not illustrated

$

$

Not available

10

PLATE - Center (Includes items 11 & 12)

Note: Not serviced separately

$

$

Not available

11

SHANK - Bucket Tooth

Note: Not serviced separately

$

$

Not available

12

Toro AUD27748

POINT - Bucket Tooth

$

$

Not available

13

Toro AUH672515

ASSEMBLY - Bucket, 610 mm (24 in) (Includes items 14 - 18)

$

$

Currently unavailable

14

Toro AUH433581

EDGE-CUTTING - LH

$113.99

$

Usually ships in 3-6 days

0

15

Toro AUH433584

EDGE-CUTTING - RH

$116.99

$

Usually ships in 3-6 days

0

Toro AUH672512

ASSEMBLY - Plate, Center (Includes items 16 - 18)

Note: Not illustrated

$

$

Currently unavailable

16

PLATE - Center (Includes items 17 & 18)

Note: Not serviced separately

$

$

Not available

17

SHANK - Bucket Tooth

Note: Not illustrated

$

$

Not available

18

Toro AUD27748

POINT - Bucket Tooth

$

$

Not available

19

Toro AUD36720

POINT - Bucket Tooth, Heavy Duty (Service Option Only)

$

$

Not available
