RT 600 - Toro Riding Trencher Traction Unit (2012) HYDRA-BORER ATTACHMENT UNIVERSAL JOINT Parts Diagram

Riding Trencher Traction Unit

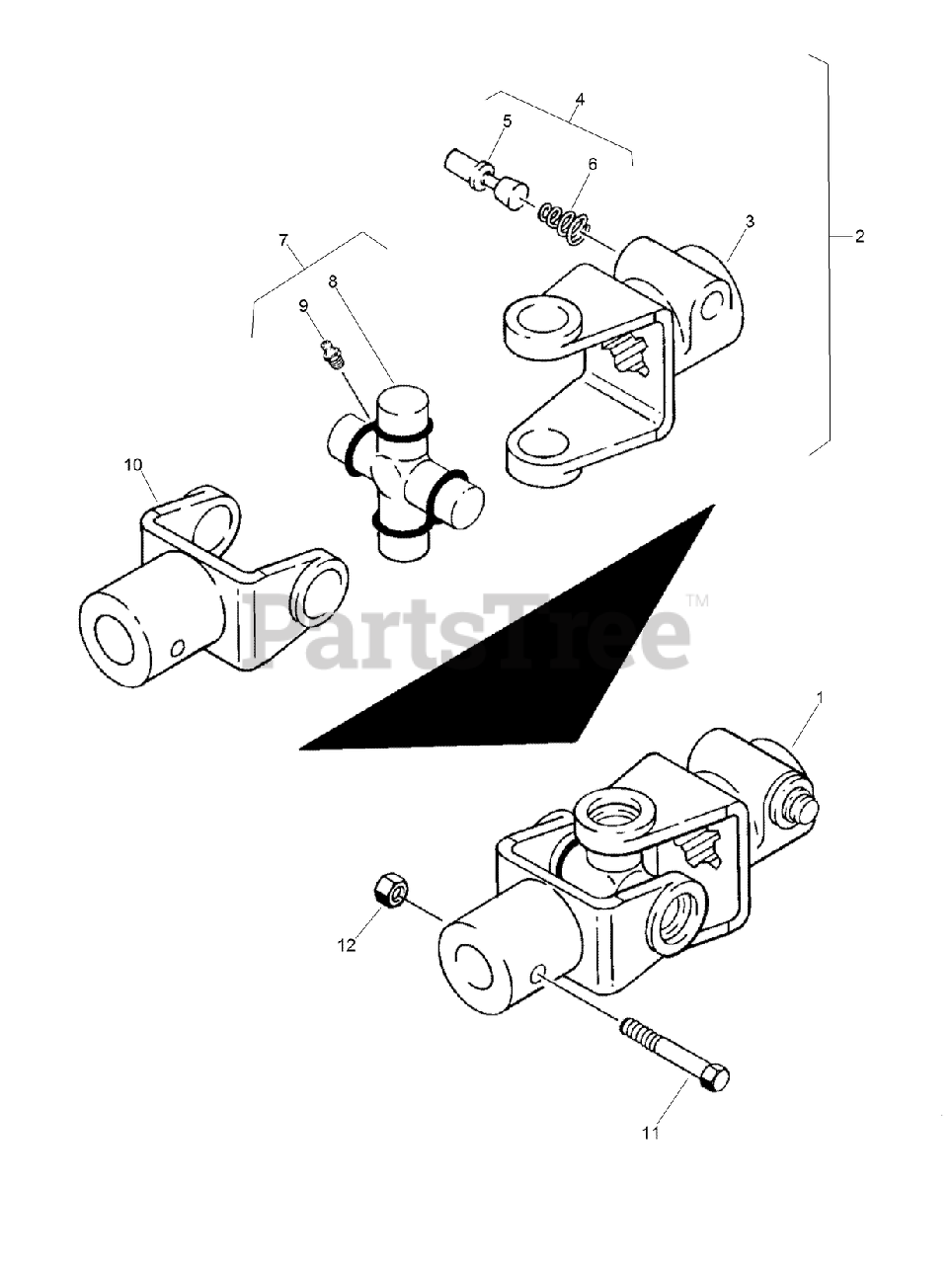

HYDRA-BORER ATTACHMENT UNIVERSAL JOINT Parts Diagram

  • Title

1

Toro AUH511113

U-JOINT ASM
(Superseded to AUH511113-03)

$357.99

$

Usually ships in 3-6 days

0

2

Toro AUH71142

YOKE ASM-splined, mounts to gearbox

$260.99

$

Usually ships in 3-6 days

0

3

YOKE-splined, mounts to gearbox

Note: Not serviced separately

$

$

Not available

4

Toro AUH658179

KIT-universal joint retaining

$100.99

$

Usually ships in 3-6 days

0

5

PIN-retaining

Note: Not serviced separately

$

$

Not available

6

SPRING-special

Note: Not serviced separately

$

$

Not available

7

Toro AUH71167

CROSS ASM-universal joint

$88.99

$

Usually ships in 3-6 days

0

8

CROSS-U-joint

Note: Not serviced separately

$

$

Not available

9

Toro AU219-11

FITTING-grease, straight, 1/4-28 taper x 15/16 inch

$3.99

$

Usually ships in 3-6 days

0

10

Toro AUH71159

YOKE-boring attachments

$244.99

$

Usually ships in 3-6 days

0

11

Toro AU424-640

BOLT-hex, 3/8 NC x 2-1/2 inch, grade 2
(Superseded to 323-47)

$5.49

$

In Stock, only 2 left!

0

12

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0
