RY 08578 - Ryobi Backpack Blower Figure B Parts Diagram

Backpack Blower

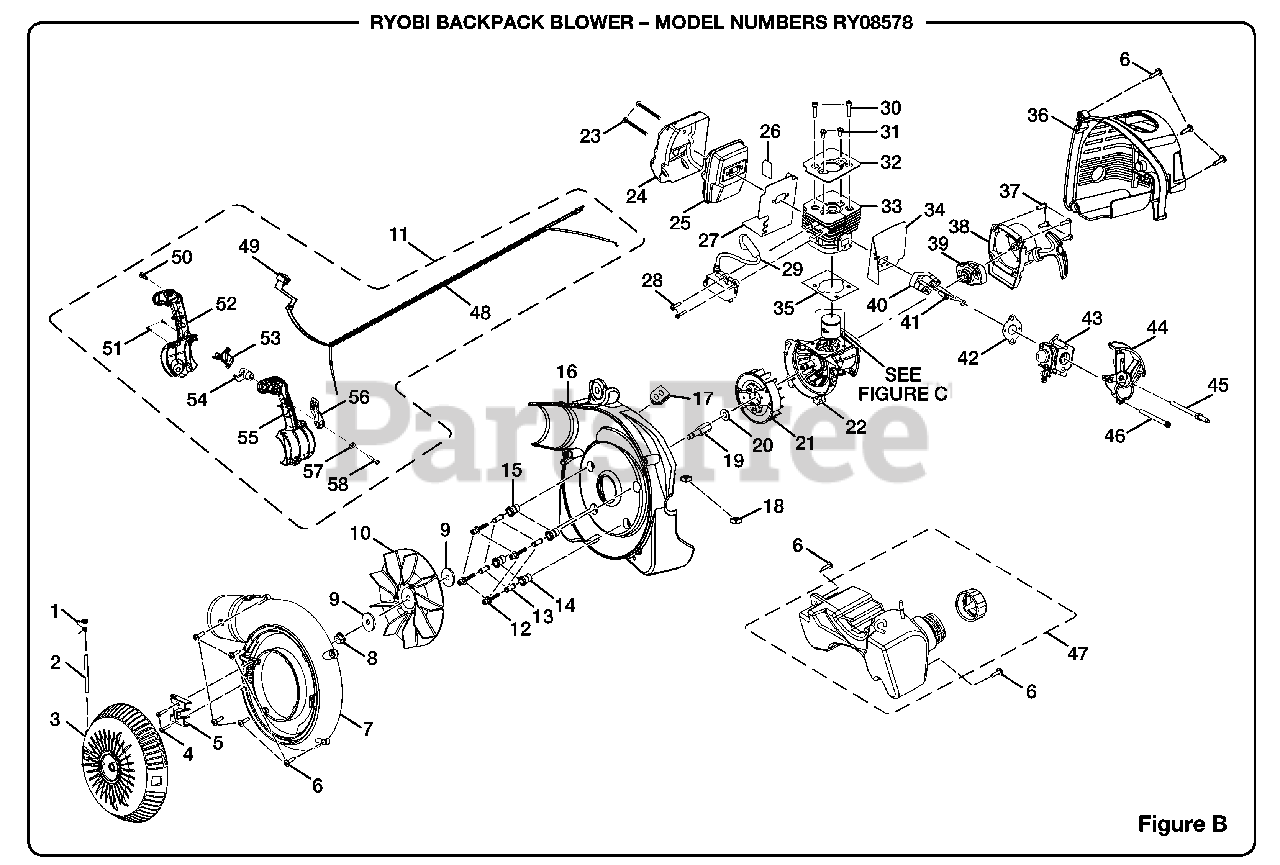

Figure B Parts Diagram

  • Title

1

Homelite 678117001

Vacuum Door Hinge Spring

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 650026002

Hinge Pin

$

$

Not available

3

Homelite 518268001

Vacuum Door

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 660665001

Screw (M4 X 19 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 518170001

Vacuum Door Hinge

$

$

Not available

6

Homelite 660674003

Screw

Note: Purchase locally

$

$

Not available

7

Homelite 518266031

Outer Volute Housing

$8.99

$

Usually ships in 3-7 days

0

8

Homelite 678128002

Retaining Washer Nut

$1.49

$

In Stock, only 1 left!

0

9

Homelite 678126001

Washer (Fan Spacer)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518265001

24.5cc Blower Fan

$

$

Not available

11

Homelite 308345004

Control Assembly

Note: Inc. Key Nos. 48-58

$

$

Not available

12

Homelite 660759002

Screw (M5 X 8 mm Cap Hd.)

Note: Purchase locally

$

$

Not available

13

Homelite 678124001

Bushing Sleeve

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 570544002

Anti Vibration Bushing

$

$

Not available

15

Homelite 570544003

Vibration Isolator

$

$

Not available

16

Homelite 518270014

Inner Volute Housing

$

$

Not available

17

Homelite 570624001

Rubber Grommet

$

$

Not available

18

Homelite 678108001

Square Nut
(Superseded to 81246)

$

$

Not available

19

Homelite 308068002

Crankshaft Extension

$

$

Not available

20

Homelite 678171002

Washer (2.3 mm)

$

$

Not available

21

Homelite 640574001

Flywheel Assembly
(Superseded to 6457401)

$

$

Not available

22

Homelite 300749004

Crankcase Assembly

$66.99

$

Usually ships in 3-7 days

0

23

Homelite 660347001

Screw (M5 X 50 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

24

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 300748016

Muffler Assembly

$

$

Not available

26

Homelite 900955003

Heat Shield

$

$

Not available

27

Homelite 638183001

Gasket Muffler

$8.99

$

In Stock, only 4 left!

0

28

Homelite 660349001

Screw (M4 X 22 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

29

Homelite 290178008

Coil & Boot Assembly

$

$

Not available

30

Homelite 660342001

Screw (M5 X 22 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

31

Homelite 660351002

Screw w/Washer (M5 X 10 mm)
(Superseded to 983660005)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 630002021

Plate for Cylinder

$1.49

$

In Stock, only 3 left!

0

33

Homelite 640570016

Cylinder
(Superseded to 640570026)

$35.99

$

Usually ships in 3-7 days

0

34

Homelite 901206001

Insulator Gasket

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 900709001

Cylinder Gasket
(Superseded to 9070901)

$

$

Not available

36

Homelite 518324012

Engine Shroud Housing

$

$

Not available

37

Homelite 660351001

Screw (M5 X 16 mm)
(Superseded to 6635101)

Note: Purchase locally

$1.49

$

In Stock, Qty 9

0

38

Homelite 308430001

Starter Assembly
(Superseded to 308430016)

$

$

Not available

39

Homelite 308004001

Pulley Assembly

$10.99

$

Usually ships in 3-7 days

0

40

Homelite 518596001

Heat Dam

$

$

Not available

41

Homelite 660344003

Screw w/Washer (M5 X 31 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 901552001

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

43

Homelite 308054010

Carburetor

$37.99

$

Usually ships in 3-7 days

0

44

Homelite 518498002

Roto-choke base

$

$

Not available

45

Homelite 660453003

Hex Bolt (Double Side)

$

$

Not available

46

Homelite 660454004

Screw (M5 X 25 mm)

Note: Purchase locally

$

$

Not available

47

Homelite 308342003

Fuel Tank Assembly

$

$

Not available

48

Homelite 518210002

Corrugated Tube

$3.99

$

Usually ships in 3-7 days

0

49

Homelite 760363003

Switch

$

$

Not available

50

Homelite 660629001

Screw (10-14 X 3/4 in.)
(Superseded to 82563)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

51

Homelite 660734001

Screw (M4 X 16 mm Pan Head)

$1.49

$

In Stock, Qty 5

0

52

Homelite 518272001

Housing - RH remote control

$

$

Not available

53

Homelite 518255001

Trigger

$1.49

$

In Stock, only 1 left!

0

54

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

55

Homelite 518271001

Housing - LH remote control

$

$

Not available

56

Homelite 518160001

Cruise Control Lever

$

$

Not available

57

Homelite 678125001

Washer

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 660666001

Screw (M4 X 25 mm)

$1.49

$

Usually ships in 3-7 days

0
