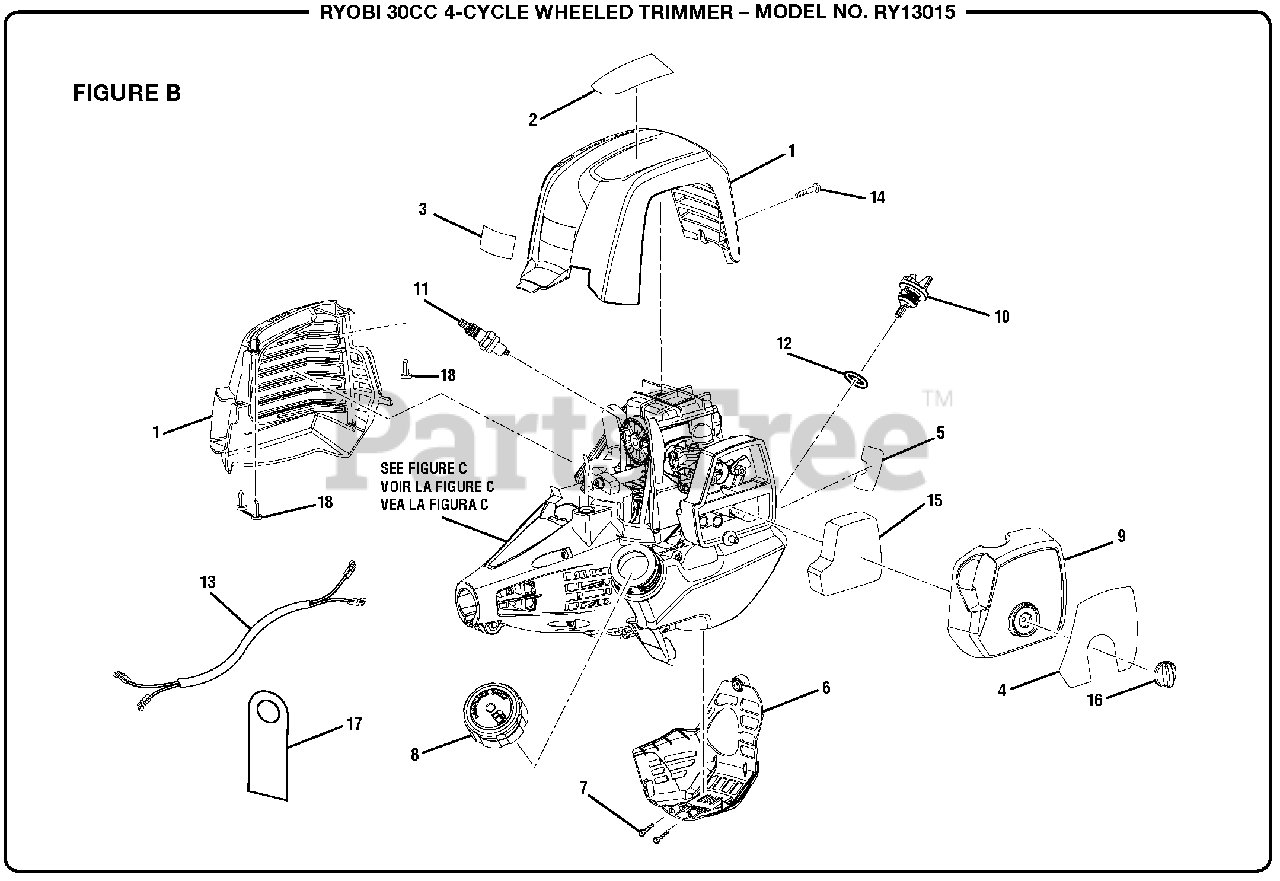

RY 13015 - Ryobi Walk-Behind Trimmer, 30cc Figure B Parts Diagram

Walk-Behind Trimmer, 30cc

Figure B Parts Diagram

  • Title

1

Homelite 310592001

Top Cover Assembly (Inc. Key No. 18)
(Superseded to 518142002)

Note: 1

$

$

Not available

2

Homelite 940991034

Label

Note: 1

$

$

Not available

3

Homelite 940705020

Logo Label

Note: 1

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 940686051

Starting Label

Note: 1

$

$

Not available

5

Homelite 940680023

Hot Surface Label

Note: 1

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518548001

Bottom Cover

Note: 1

$1.99

$

Usually ships in 3-7 days

0

7

Homelite T660619001

Screw (M6-19 x 1/2 in.)

Note: 2

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 310816006

Fuel Cap Assembly

Note: 1

$3.99

$

In Stock, only 4 left!

0

9

Homelite 310266001

AIr Box Cover

Note: 1

$

$

Not available

10

Homelite 310302001

Oil Cap/Dipstick

Note: 1

$1.49

$

In Stock, only 2 left!

0

11

Homelite 870301002

Spark Plug (Champion RY4C)

Note: 1

$8.49

$

In Stock, only 1 left!

0

12

Homelite 570400001

O-Ring

Note: 1

$1.49

$

In Stock, Qty 5

0

13

Homelite 308863022

Wiring Harness

Note: 1

$2.99

$

In Stock, only 1 left!

0

14

Homelite 660510006

Screw (M4 x 20 mm)

Note: 1

$1.49

$

In Stock, only 4 left!

0

15

Homelite 901454002

Air Filter

Note: 1

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 590461001

Air Cover Knob
(Superseded to 5946101)

Note: 1

$1.49

$

In Stock, only 2 left!

0

17

Homelite 940971028

Hangtag

Note: 1

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 660466002

Screw (M4 x 12 mm)

Note: 3

$1.49

$

Usually ships in 3-7 days

0
