RY 15519 - Ryobi Expand-It Blower Attachment General Assembly Parts Diagram

Expand-It Blower Attachment

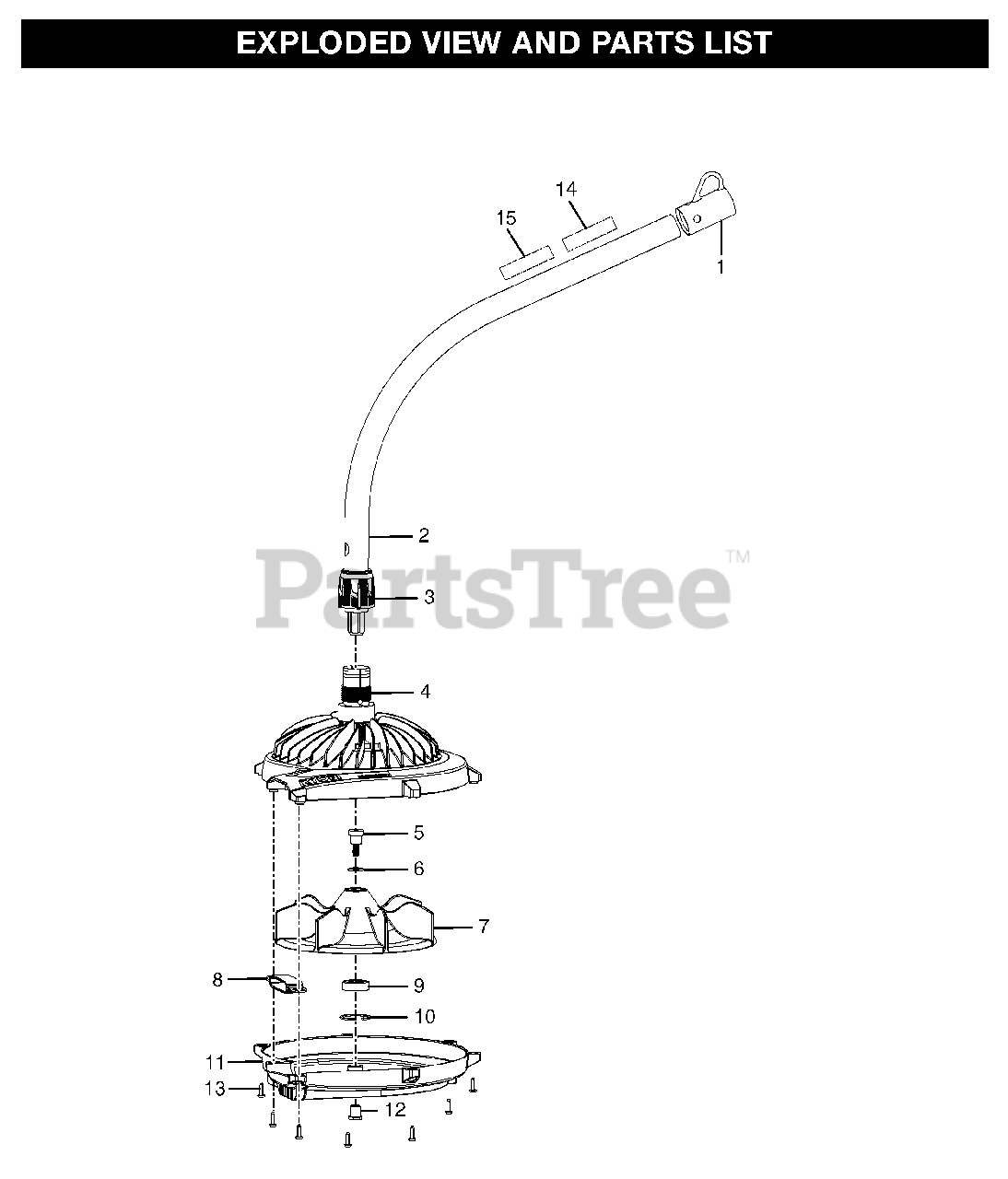

General Assembly Parts Diagram

  • Title

1

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

2

Homelite 308495004

Blower Attachment Shaft
(Superseded to 308737003)

Note: (Inc. Key No. 14-15)

$24.99

$

Usually ships in 3-7 days

0

3

Homelite 518663001

Attachment Securing Cap

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 518659001

Upper Housing

$

$

Not available

5

Homelite 660941002

Shoulder Bolt (M5 x 21 mm)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678263002

Lock Washer (M12)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 308164002

Fan

Note: (Inc. Key No. 9-10)

$

$

Not available

8

Homelite 518662001

Guard

$

$

Not available

9

Homelite 690697001

Ball Bearing

$1.99

$

In Stock, only 1 left!

0

10

Homelite 690684001

C-ring

$

$

Not available

11

Homelite 518661001

Lower Housing

$

$

Not available

12

Homelite 678302002

Threaded Insert

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 660721002

Screw (M4 x 13 mm T.F.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 940657026

Warning Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000378

Operator's Manual

$

$

Currently unavailable
