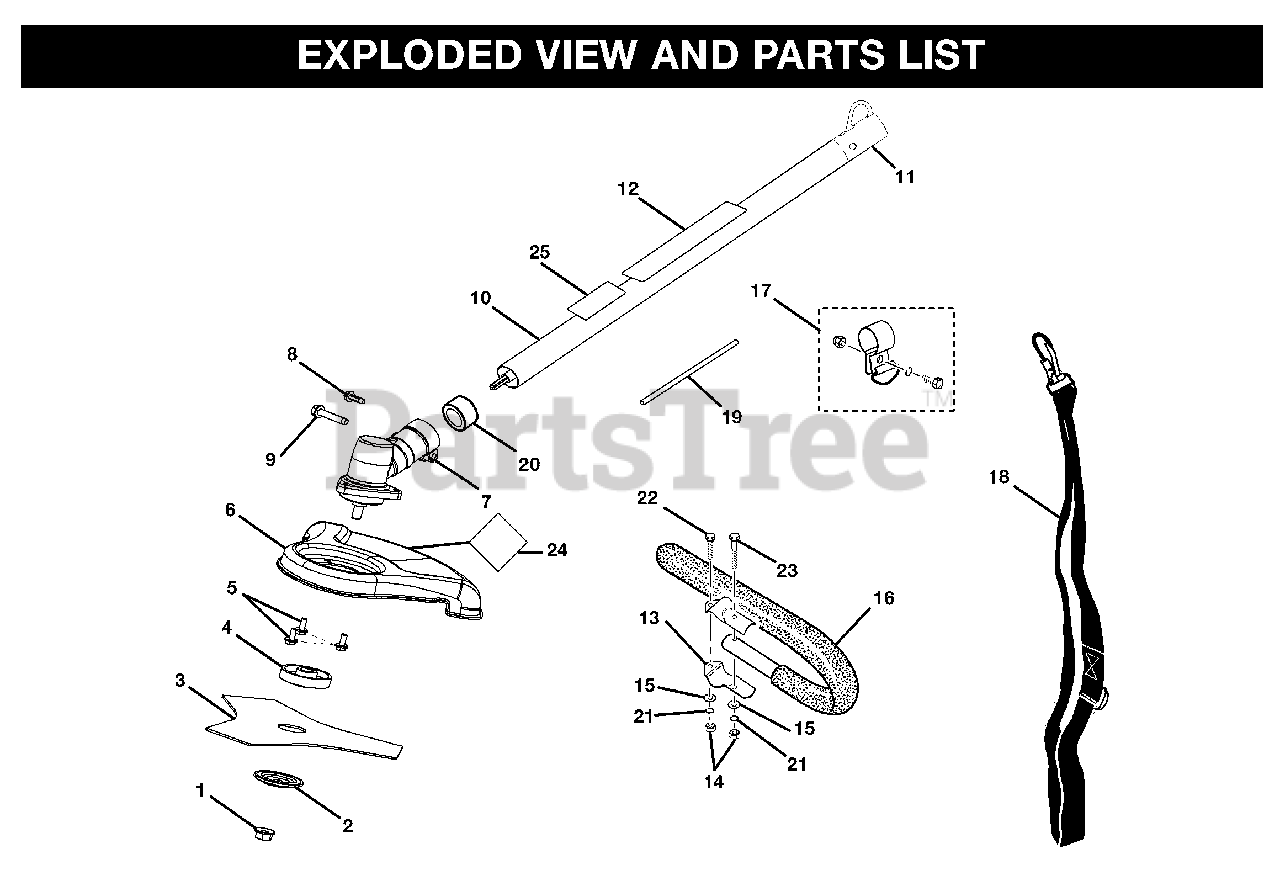

RY 15702 - Ryobi Expand-It Brush Cutter Attachment General Assembly Parts Diagram

Expand-It Brush Cutter Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 678018001

Blade Nut, Left-handed Threads (M8)
(Superseded to 04277)

$

$

Not available

2

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$2.49

$

In Stock, only 1 left!

0

3

Homelite 638006004

Blade (Tri-Arc®)

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$6.49

$

In Stock, only 1 left!

0

5

Homelite 660737001

Screw (10-24 x 1/2 in. Hex Head w/Dish Washer)
(Superseded to 88049)

Note: Purchase locally

$

$

Not available

6

Homelite 638120004

Brushcutter Guard

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 308021001

Gear Head Assembly
(Superseded to 986117001)

$

$

Not available

8

Homelite 660641001

Screw (10-24 x 5/8 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 660642001

Screw (1/4 in.-20 x 1-1/4 in., Hex Head)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 120530012

Boom Assembly

Note: (Includes Key No. 12 and 25)

$

$

Not available

11

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

12

Homelite 940657027

Warning Label

$

$

Not available

13

Homelite 638014001

Handle Bar Clamp
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 678016001

Hex Nut (1/4 in.-20)
(Superseded to 81242)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 678013001

Washer

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308046001

J-Handle and Grip
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 308224001

Strap Hanger
(Superseded to 07255)

$

$

Not available

18

Homelite 308487001

Shoulder Harness Assembly

$6.99

$

Usually ships in 3-7 days

0

19

Homelite 678020001

Head Locking Tool
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

20

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

21

Homelite 678012001

Lock Washer (1/4 in.)
(Superseded to 83009)

Note: Purchase locally

$4.99

$

Usually ships in 3-7 days

0

22

Homelite 660643002

Bolt (1/4 in.-20 x 1 in.)
(Superseded to 82496)

Note: Purchase locally

$

$

Not available

23

Homelite 660643001

Bolt (1/4 in.-20 x 1-1/2 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940705021

Logo Label

$

$

Not available

25

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000382

Operator's Manual

$

$

Currently unavailable
