RY 24021 - Ryobi 24V String Trimmer/Edger Attachment, Rev 02 (2017-09) General Assembly Parts Diagram

24V String Trimmer/Edger Attachment, Rev 02

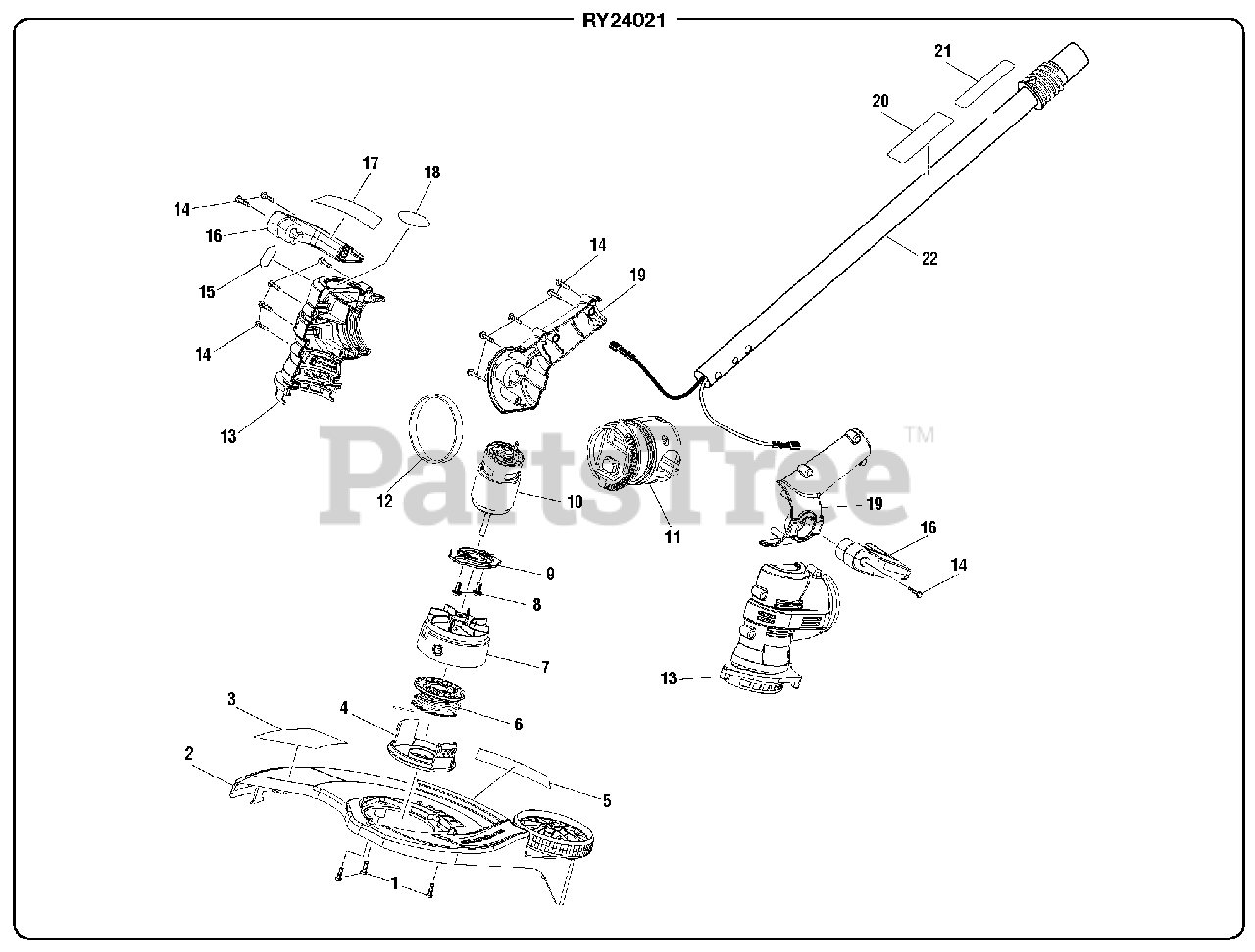

General Assembly Parts Diagram

  • Title

1

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.49

$

In Stock, Qty 5

0

2

Homelite 310904001

Grass Deflector Assembly

$12.99

$

In Stock, only 1 left!

0

3

Homelite 941774001

Adjustable Cutting Width Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 522994001

Spool Cap (AC14HC)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 941648002

No Bump Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 310917001

Spool w/Line (AC14RSL)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 129305001

String Head Assembly

$

$

Not available

8

Homelite 660502002

Screw w/Lock Washer (M5 x 8 mm, Pan Hd.)

$1.49

$

In Stock, only 3 left!

0

9

Homelite 522926001

Motor Mounting Plate

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 230049019

Motor (24 Volt)

$

$

Not available

11

Homelite 129304001

Pivot Assembly

$6.99

$

Usually ships in 3-7 days

0

12

Homelite 522923001

Glamour Ring

$1.49

$

In Stock, only 1 left!

0

13

Homelite 129307001

Motor Housing Assembly

$11.99

$

In Stock, only 4 left!

0

14

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$

$

Not available

15

Homelite 941766002

Rotate Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 129308001

Foot Pedal Assembly

$3.49

$

In Stock, only 1 left!

0

17

Homelite 941773001

Step For Edging Label

$1.49

$

In Stock, only 1 left!

0

18

Homelite 941772002

Lithium 24V Motor Housing Label

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 129309001

Lower Housing Assembly

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 940749011

Data/Warning Icon Label

$

$

Not available

21

Homelite 941616003

Ryobi Connexion Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 310896001

Lower Boom Assembly

$12.99

$

Usually ships in 3-7 days

0
